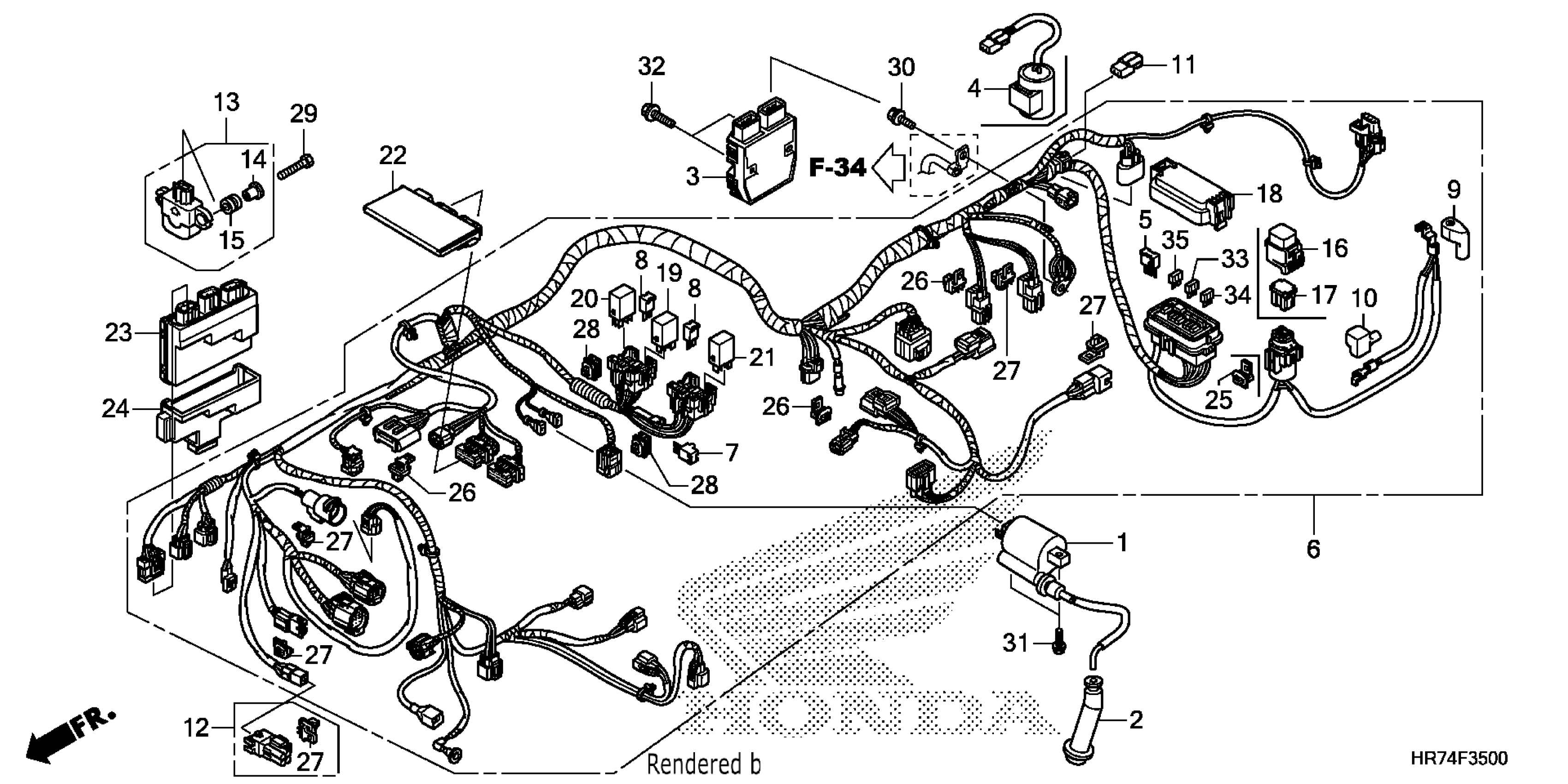

Honda TRX420FA62A (18) TRX420FA6, USA, VIN# 1HFTE47E-J4300001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-HR3-A21

$70.43

2

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$24.97

3

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$168.25

5

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

6

WIRE HARNESS

32100-HR7-A90

$1,924.01

7

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.36

8

CONNECTOR, DIODE (2P)

32146-SH3-003

$16.51

9

COVER, BATTERY TERMINAL

32405-MEC-000

$8.28

10

COVER A, TERMINAL

32412-HW1-670

$2.29

11

CONNECTOR, DUMMY (2P 090 F) (BLACK)

32605-HR6-A60

$1.01

12

CONNECTOR & CLIP (4P 090 M) (DUMMY)(RED)

32606-HR3-A20

$3.04

13

SENSOR ASSY., BANK ANGLE

35160-HR0-F01

$82.71

14

COLLAR

35162-MGC-003

$4.09

15

GROMMET

35163-MGC-003

$2.04

16

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.22

17

FUSE, BLOCK (40A)

38211-SNA-A21

$4.03

18

COVER SET, FUSE

38230-HR3-A40

$2.46

19

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.66

20

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.31

21

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$13.11

22

PGM-FI UNIT

38770-HR7-C61

$249.42

23

EPS UNIT

39980-HR3-A72

$403.41

24

CUSHION, EPS UNIT

39981-HN2-B70

$5.42

25

CLIP, CONNECTOR (NATURAL)

91533-STK-003

$4.51

26

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

27

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

28

CLIP, RELAY HOLDER (NATURAL)

91536-STK-003

$1.28

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

30

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

31

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

32

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

33

FUSE, MINI (10A)

98200-41000

$1.20

34

FUSE, MINI (20A)

98200-42000

$1.10

35

FUSE, MINI (30A)

98200-43000

$1.59
