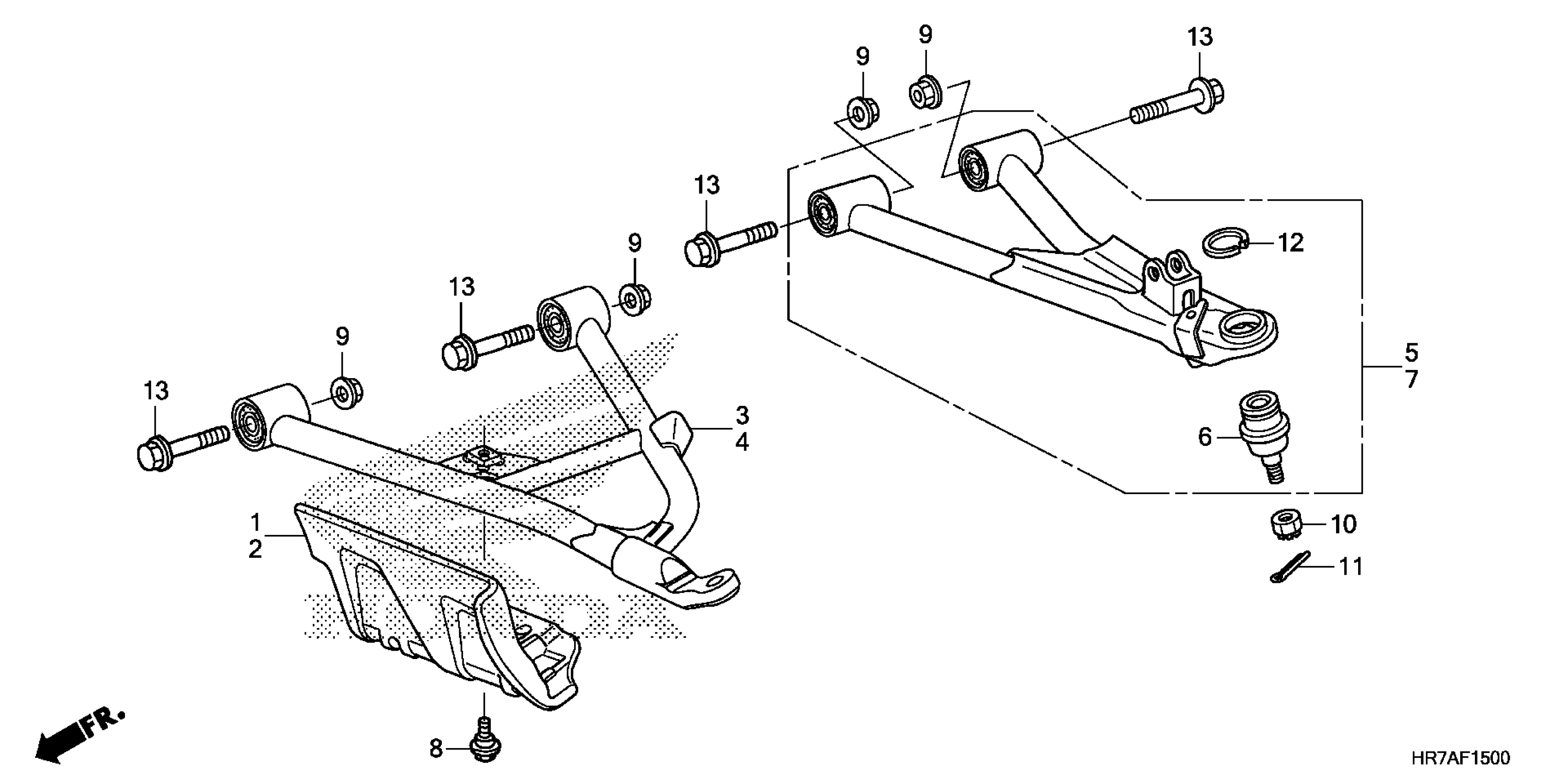

Honda TRX420FA5AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE473-K4400001 TO 1HFTE473-K4499999 FRONT ARM Diagram

GUARD, R. FR. INBOARD

51315-HR0-F00

$4.06

GUARD, L. FR. INBOARD

51316-HR0-F00

$4.06

ARM ASSY., R. FR. (LOWER)

51350-HR4-A20

$285.03

ARM ASSY., L. FR. (LOWER)

51360-HR4-A20

$80.10

ARM ASSY., R. FR. (UPPER) (TYPE1) This part replaces 51370-HR4-A20.

51370-HR6-A60ZB

$111.80

ARM ASSY., R. FR. (UPPER) (TYPE1)

51370-HR6-A60ZB

$111.80

JOINT A, ARM BALL

51375-HP5-601

$20.53

ARM ASSY., L. FR. (UPPER) (TYPE1) This part replaces 51380-HR4-A20.

51380-HR6-A60ZB

$114.56

ARM ASSY., L. FR. (UPPER) (TYPE1)

51380-HR6-A60ZB

$114.56

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
