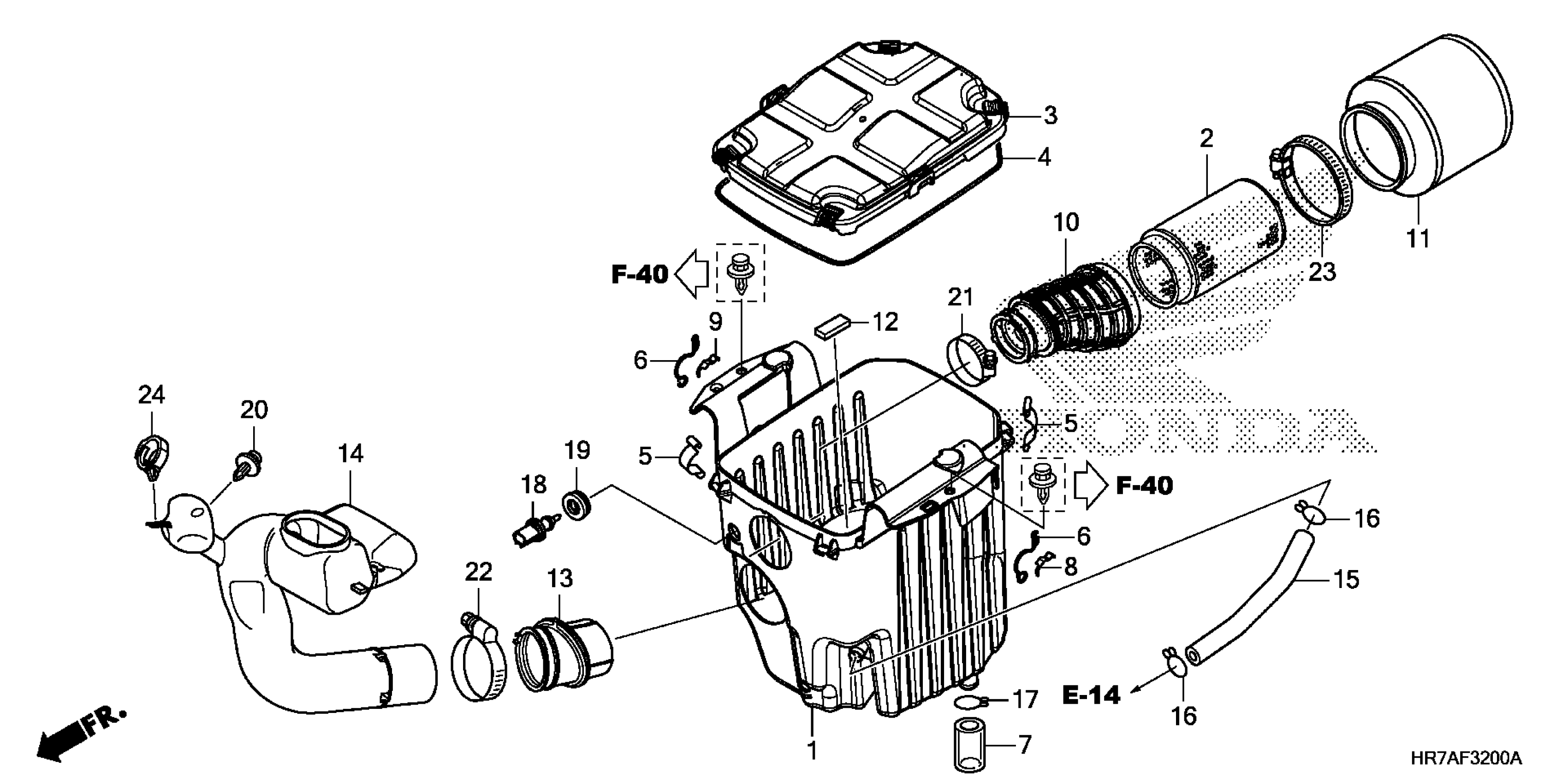

Honda TRX420FA5A (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE47A-M4600001 TO 1HFTE47A-M4699999 AIR CLEANER Diagram

HOUSING, AIR CLEANER

17210-HR7-A80

$24.53

BODY, AIR CLEANER

17211-HP0-A00

$21.62

LID, AIR CLEANER

17217-HR6-A60

$9.88

SEAL, AIR CLEANER COVER

17219-HR6-A60

$14.64

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.68

SPRING, AIR CLEANER LID

17223-HN1-A40

$3.59

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.56

HOOK, R. LID SPRING (Honda Code 5898382)

17228-HN1-000

Unavailable

HOOK, L. LID SPRING (Honda Code 5898390)

17229-HN1-000

$2.41

TUBE, AIR CLEANER CONNECTING

17253-HR7-A80

$13.97

ELEMENT, AIR CLEANER

17254-HN1-000

$21.08

COVER, DUST

17256-HR3-A20

$0.46

TUBE, SNORKEL

17258-HR3-A20

$4.12

DUCT, SNORKEL

17259-HR3-A20

$41.04

TUBE, BREATHER

17366-HR6-A60

$53.29

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$32.48

GROMMET, TA SENSOR

37881-P2A-000

$4.51

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

BAND, AIR CLEANER CONNECTING TUBE

90658-HP5-600

$7.47

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.35

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.28

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

Unavailable
