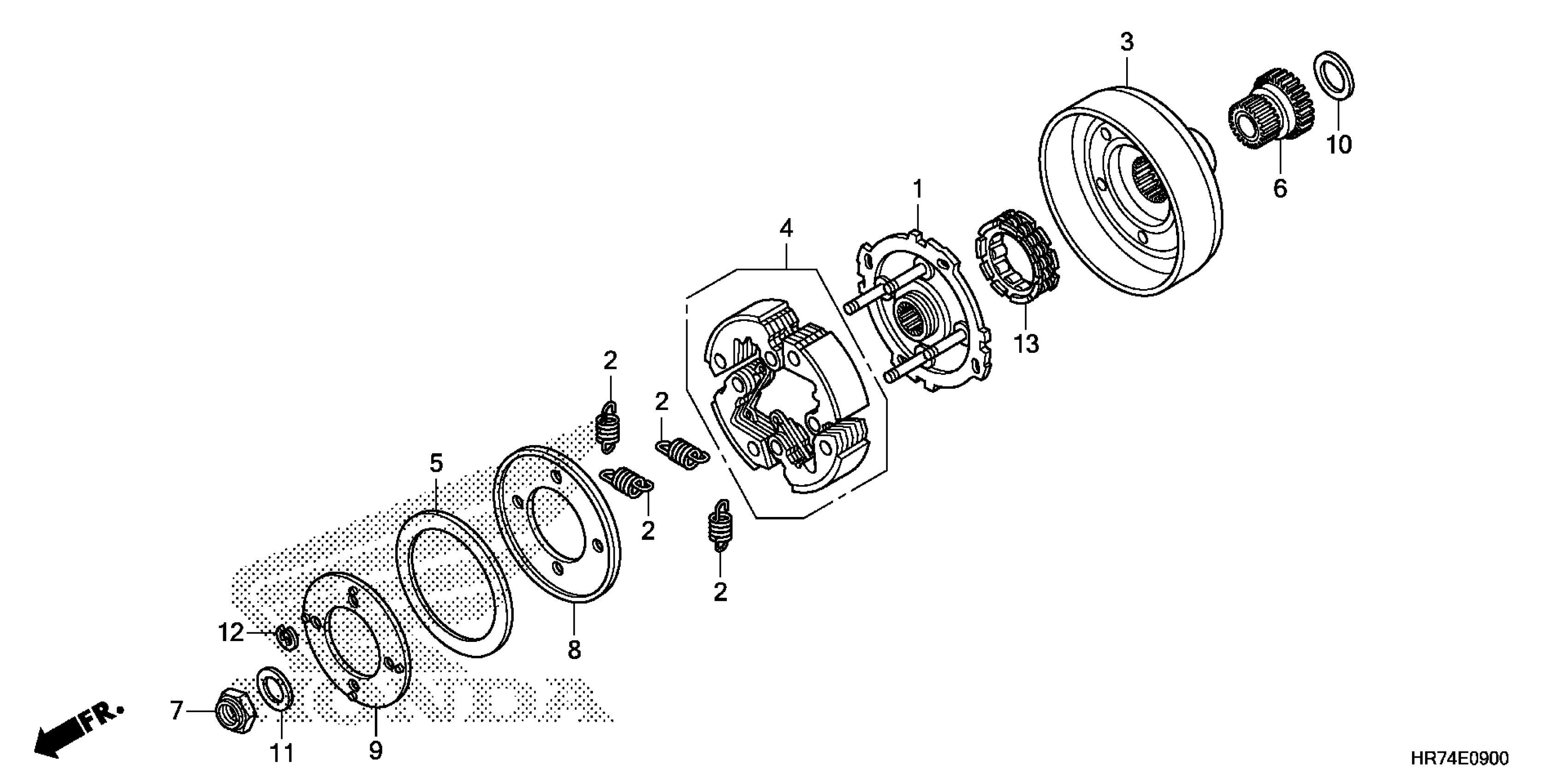

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 STARTING CLUTCH Diagram

#

Description
Price

1

PLATE, DRIVE

22350-HP7-A00

$69.97

2

SPRING, CLUTCH

22451-HP5-601

$4.53

3

CLUTCH OUTER

22500-HP7-A00

Unavailable

4

WEIGHT SET, CLUTCH

22535-HP7-305

$101.02

5

SPRING, CONED DISK

22714-HP5-600

$19.05

6

GEAR, DRIVE (25T)

23120-HP7-A00

$129.74

7

NUT, LOCK (20MM)

90235-HM7-000

$5.93

8

WASHER (64X122X1.0)

90406-HP5-600

$9.12

9

WASHER (64X105X2)

90407-HP5-600

$10.04

10

WASHER, THRUST (29X40X2)

90457-HN2-000

$4.54

11

WASHER, THRUST (20MM)

90459-KB4-670

$3.99

12

CIRCLIP (7MM)

90605-166-720

$1.66

13

CLUTCH, ONE-WAY

91101-HN2-003

$51.67
