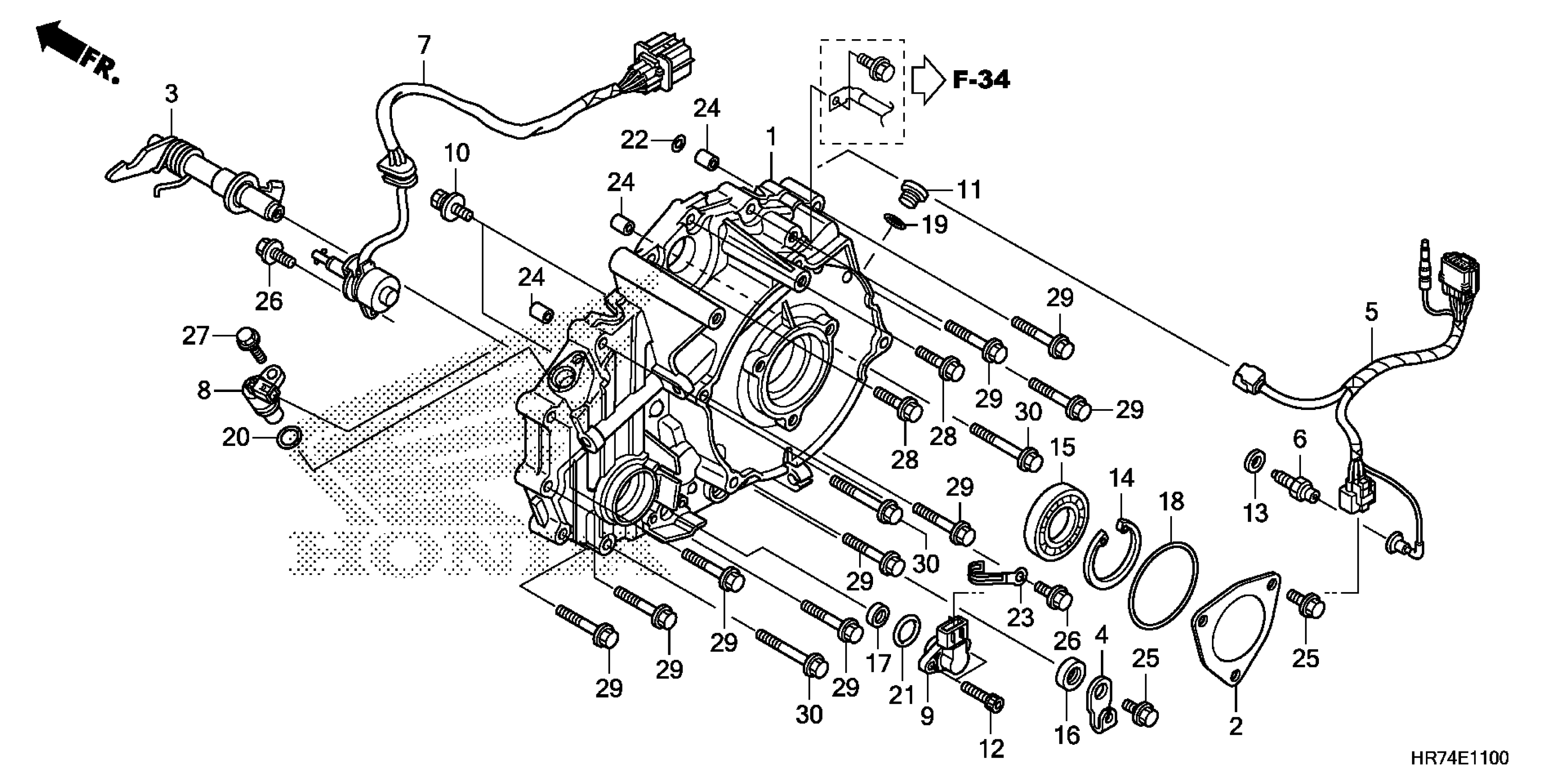

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 REAR CRANKCASE COVER Diagram

#

Description
Price

1

COVER, RR. CRANKCASE

11340-HR3-A60

$218.31

2

CAP, RR. COVER

11342-HP5-600

$2.92

3

SHAFT, REVERSE STOPPER

24860-HP7-A00

$39.28

4

LEVER, REVERSE STOPPER

24865-HP5-600

$4.56

5

SUB-HARNESS, ENGINE

32101-HR3-A60

$90.44

6

SWITCH ASSY., NEUTRAL

35600-HN7-003

$18.00

7

SWITCH ASSY., DRUM POSITION

35759-HR3-A61

$62.75

8

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$40.44

9

SENSOR ASSY., ANGLE

38800-HR3-A21

$24.12

10

BOLT-WASHER (6X12)

90021-MM5-000

$4.88

11

CAP (14MM)

90084-KY2-000

$14.66

12

BOLT, SOCKET (5X20)

90116-HP5-600

$2.95

13

WASHER, OIL BOLT

90545-300-000

$5.79

14

CIRCLIP (INNER) (42MM)

90602-GFZ-000

$3.40

15

BEARING, RADIAL BALL (6806)

91015-HR0-F21

$15.65

16

OIL SEAL (12X22X5)

91201-965-000

$3.87

17

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

17

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.80

17

OIL SEAL (8X16X6)

91254-792-003

$2.80

18

O-RING (58X3)

91301-HR3-A40

$2.15

19

O-RING (13.8X2.5)

91303-377-000

$3.26

20

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.63

21

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.51

22

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.01

23

CLIP (2X70)

91413-679-000

$8.51

24

PIN, DOWEL (8X14)

94301-08140

$2.76

25

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

26

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

27

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

28

BOLT, FLANGE (6X25)

95701-06025-00

$1.79

29

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

30

BOLT, FLANGE (6X50)

95701-06050-00

$2.75
