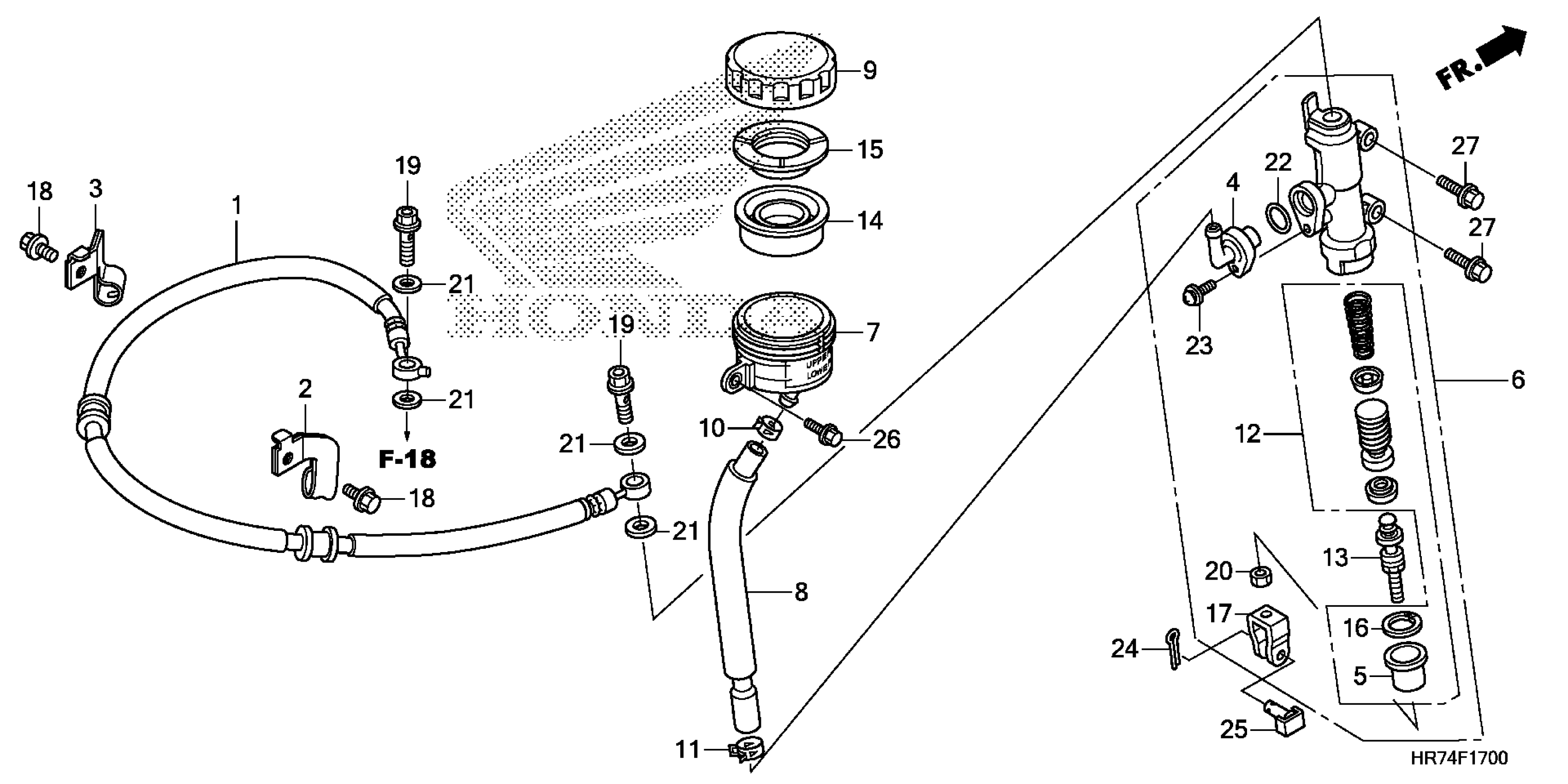

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-HR6-A61

$21.90

2

CLAMP, R. BRAKE HOSE

43462-HR6-A60

$1.81

3

CLAMP, L. BRAKE HOSE

43464-HR6-A60

$1.81

4

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

5

BOOT

43504-MB2-006

$9.01

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) This part replaces 43510-HN8-016.

43510-HN8-305

$97.49

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO)

43510-HN8-305

$97.49

7

CUP, OIL

43511-MR7-016

$29.55

8

HOSE, RR. BRAKE MASTER CYLINDER

43512-HR6-A61

$4.19

9

CAP, OIL CUP

43513-MY1-006

$26.39

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$54.74

13

ROD, PUSH

43530-MM5-006

$25.22

14

DIAPHRAGM

45520-300-000

$8.13

15

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

16

CIRCLIP

46182-MEL-D21

$1.77

17

JOINT, BRAKE ROD

46504-HN8-006

$4.88

18

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.17

19

BOLT, OIL (10X22)

90145-MS9-612

$6.82

20

NUT, SPECIAL (8MM)

90315-MAT-006

$0.41

21

WASHER, OIL BOLT

90545-300-000

$3.72

22

O-RING (14.8X2.4)

91212-422-006

Unavailable

23

SCREW-WASHER (4X12)

93893-04012-07

$1.22

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

24

PIN, SPLIT (2.0X22)

94201-20220

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

24

PIN, SPLIT (2.0X35)

94201-20350

$0.94

25

PIN D, JOINT

95015-54000

$3.95

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

27

BOLT, FLANGE (6X20)

95701-06020-00

$1.61
