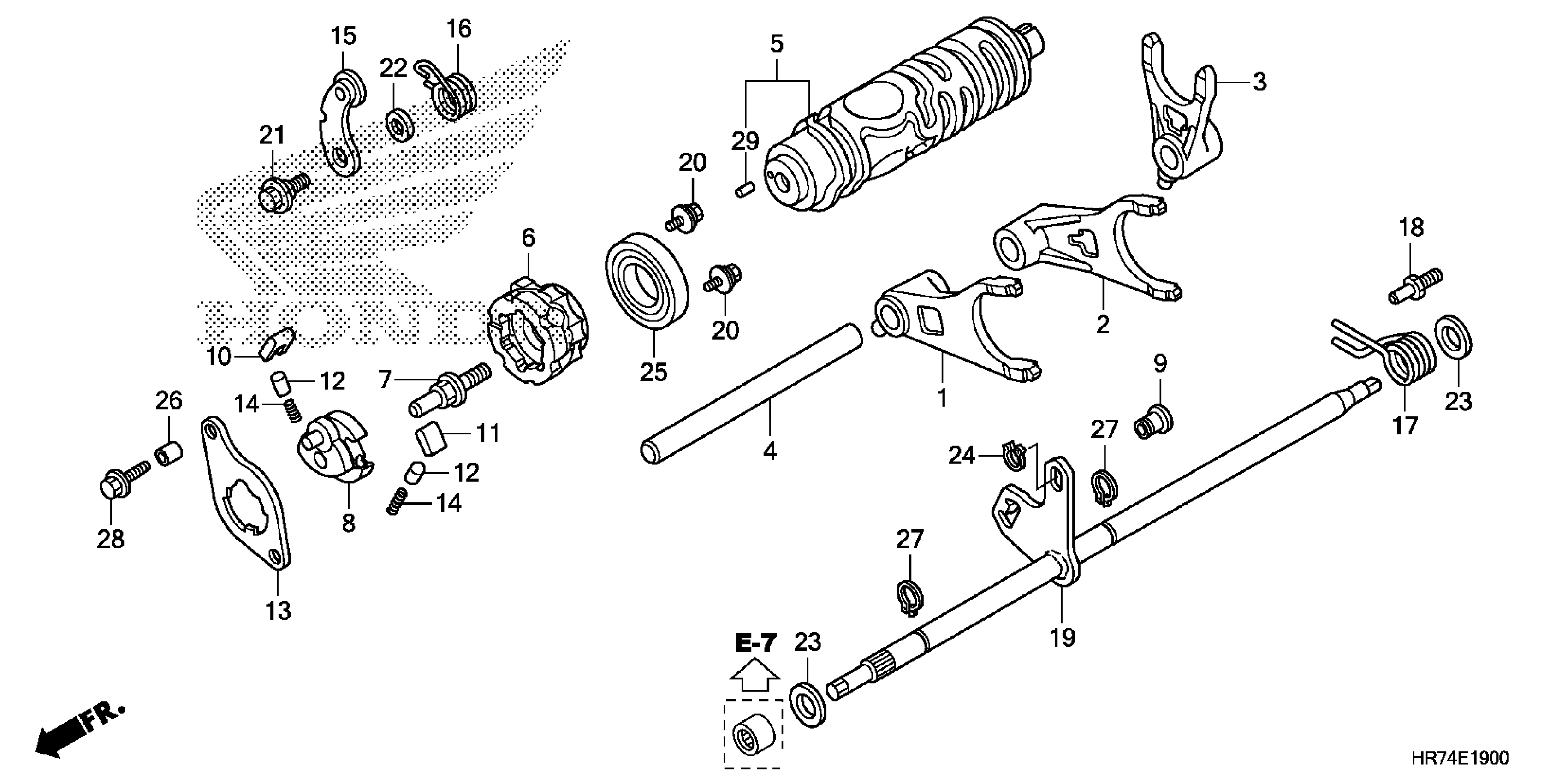

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 GEARSHIFT FORK Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT This part replaces 24211-HP7-A00.

24211-HR6-A60

$55.22

2

FORK, CENTER GEARSHIFT This part replaces 24212-HP7-A00.

24212-HR6-A60

$56.81

3

SWINGARM, GEARSHIFT This part replaces 24213-HP7-A00.

24213-HR6-A60

$60.65

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HP7-A00

$18.40

5

DRUM, GEARSHIFT

24310-HP7-A00

$63.85

6

CENTER, SHIFT DRUM

24312-HP7-A01

$13.57

7

PIN, SHIFTER

24315-HA0-000

$11.56

8

SHIFTER, DRUM

24321-HC0-000

$52.76

9

COLLAR, SHIFTER

24322-HP7-A00

$5.03

10

PAWL A, RATCHET

24324-KA3-711

$12.13

11

PAWL B, RATCHET

24325-KA3-711

$12.13

12

PLUNGER, PAWL

24326-KBH-901

$5.56

13

PLATE, GUIDE

24328-HP7-A00

Unavailable

14

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

15

STOPPER, GEARSHIFT DRUM

24430-HP7-A00

$11.29

16

SPRING, SHIFT DRUM STOPPER

24435-HP5-000

$3.44

17

SPRING, SHIFT RETURN

24651-HP7-A00

$5.51

18

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$7.84

19

SPINDLE, GEARSHIFT

24680-HP7-A00

$136.43

20

BOLT-WASHER (6X12)

90021-HP7-A00

$2.44

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.15

22

WASHER, DRUM STOPPER

90417-360-000

Unavailable

23

WASHER, THRUST (12MM)

90451-GF6-000

$2.06

24

CIRCLIP (8MM)

90652-KY4-900

$1.19

25

BEARING (16005) (KOYO)

91051-719-003

$28.03

26

PIN, DOWEL (8X14)

94301-08140

$2.76

27

CIRCLIP (OUTER) (12MM)

94510-12000

$1.87

28

BOLT, FLANGE (6X25)

95701-06025-07

$1.79

29

ROLLER (4X8)

96220-40080

Unavailable
