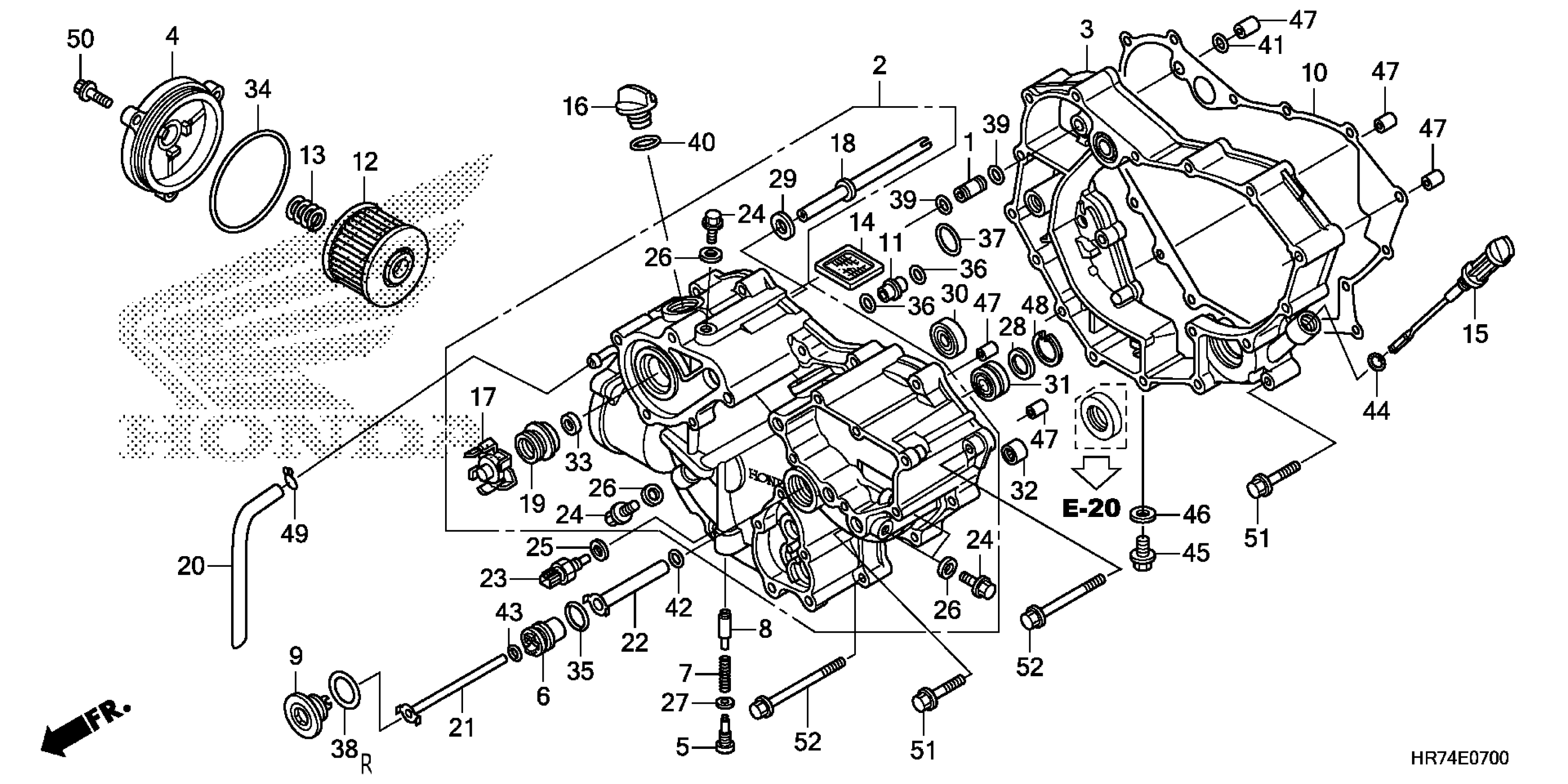

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

PIN, OIL GUIDE (8MM)

11145-HP7-A01

$9.69

2

COVER ASSY., FR. CRANKCASE

11300-HP7-A01

Unavailable

3

SPACER, FR. COVER

11321-HP7-A00

$139.20

4

COVER, OIL FILTER

11333-HP7-A00

$41.00

5

BOLT, VALVE SETTING

11334-HN2-000

$5.28

6

COLLAR, OIL FEED PIPE SETTING

11335-HN8-000

$4.49

7

SPRING, ORIFICE VALVE (PINK)

11336-HN2-000

$2.02

8

VALVE, RELIEF

11337-HN2-000

$6.75

9

BOLT, OIL FEED PIPE SETTING

11337-HN8-000

$5.67

10

GASKET, FR. CRANKCASE SPACER

11392-HP7-A00

$17.77

11

JOINT, SPECIAL

15235-HN2-000

$5.75

12

ELEMENT, OIL FILTER

15412-HP7-A01

$11.79

13

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

14

SCREEN, OIL FILTER

15421-HR3-A60

$8.00

15

DIPSTICK, OIL

15650-HP7-A00

$9.48

16

CAP, OIL FILLER

15655-HN5-670

$9.85

17

IMPELLER, WATER PUMP

19215-MEG-300

$25.66

18

SHAFT, WATER PUMP

19216-HP7-A00

$39.47

19

SEAL, MECHANICAL

19217-MAL-300

$53.03

20

HOSE, DRAIN

19507-HP7-A00

$4.06

21

PIPE A, FEED

22710-HP7-A00

$15.92

22

PIPE B, FEED

22715-HP7-A00

$14.48

23

SENSOR ASSY., THERMOSTAT OIL (PANASONIC)

37750-KPH-701

$51.87

24

BOLT, SEALING (8MM)

90024-612-000

$4.76

25

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

26

GASKET (8MM)

90471-580-000

$2.92

27

WASHER, OIL BOLT

90545-MC0-000

$3.39

28

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

29

WASHER, THRUST (12X23X2)

90599-767-C10

$2.76

30

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

31

BEARING, NEEDLE (16X28X13)

91022-HP7-A01

$18.98

32

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

32

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

33

OIL SEAL (12X26X7) (ARAI)

91201-MV4-003

$5.14

34

O-RING (75X2.5)

91301-107-000

$4.87

35

O-RING (18.5X1.9) (NOK)

91301-P7X-003

$3.08

36

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

37

O-RING (20.6X1.9)

91304-HP5-601

$2.95

38

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

39

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

40

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

41

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

42

O-RING (8.5X1.9) (NOK) This part replaces 91314-PC9-003.

91314-PC9-004

$3.23

42

O-RING (8.5X1.9) (NOK)

91314-PC9-004

$3.23

43

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

44

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

45

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

46

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

47

PIN, DOWEL (8X14)

94301-08140

$2.25

48

CIRCLIP (INNER) (28MM)

94520-28000

$1.49

49

CLIP, TUBE (B12.5)

95002-02130

$1.49

50

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

51

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

52

BOLT, FLANGE (6X90)

95701-06090-00

$1.92
