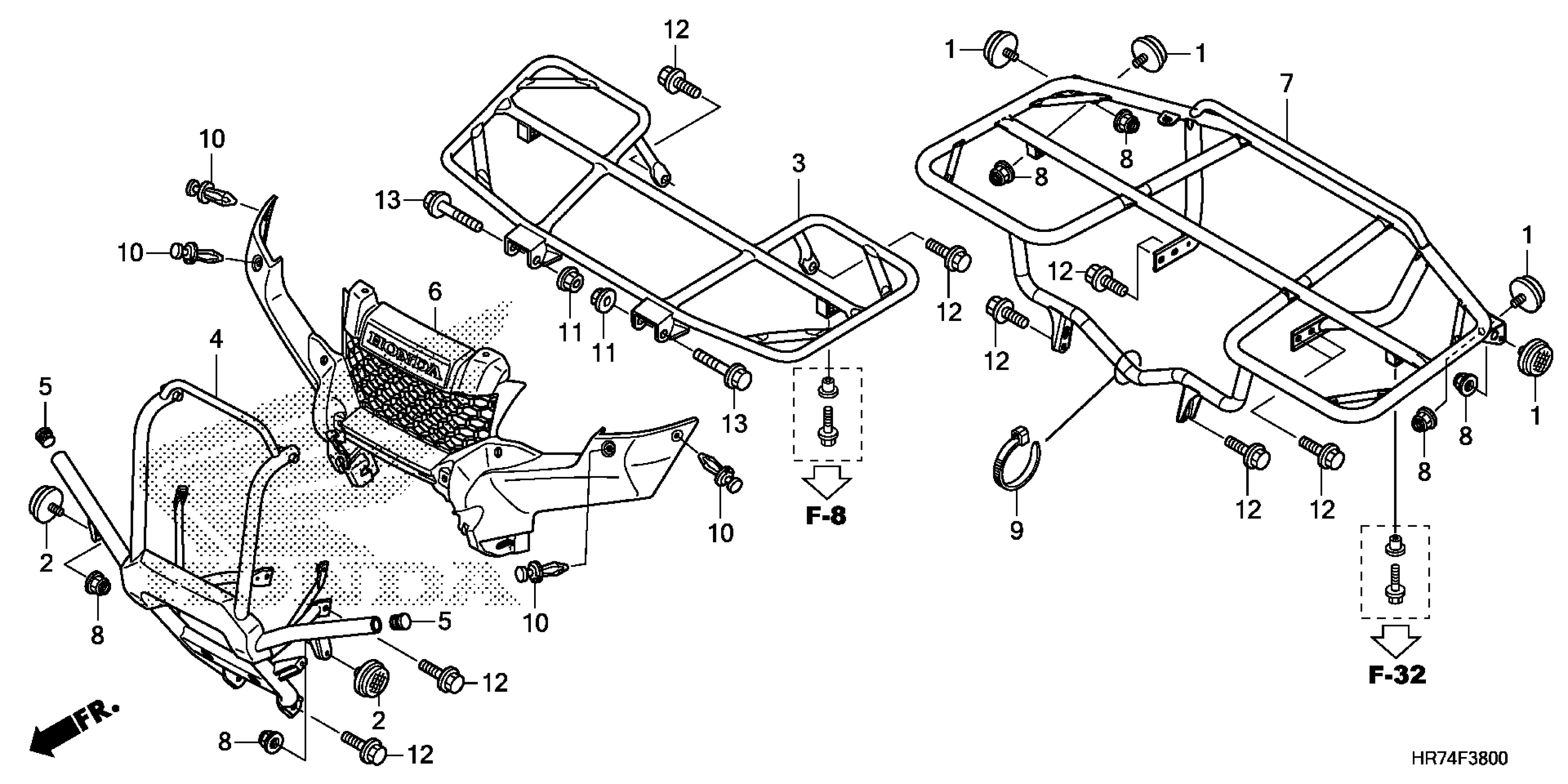

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 CARRIER Diagram

#

Description

Price

3

CARRIER, FR. LUGGAGE NH1 (BLACK)

81100-HR3-A20ZA

$222.29

4

PIPE, FR. CARRIER NH1 (BLACK) | Active yellow r Y225R; Close range camo YRA05L;

81150-HR3-A20ZA

$475.20

5

CAP, PIPE END

81155-HR3-A20

$1.76

6

GRILLE, FR. NH1 (BLACK)

81170-HR3-A20ZA

$37.37

7

CARRIER, RR. LUGGAGE NH1 (BLACK) | Active yellow r Y225R; Close range camo YRA05L;

81300-HR7-A80ZA

$248.63

9

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

10

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

11

NUT, FLANGE (8MM)

94050-08070

$1.38

12

BOLT, FLANGE (8X16)

95701-08016-07

$1.99

13

BOLT, FLANGE (8X55)

95801-08055-07

$1.62
