Description

Price

1

HOUSING, AIR CLEANER

17210-HR7-A80

$24.53

2

BODY, AIR CLEANER

17211-HP0-A00

$21.62

3

LID, AIR CLEANER

17217-HR6-A60

$9.88

4

SEAL, AIR CLEANER COVER

17219-HR6-A60

$14.64

5

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.68

6

SPRING, AIR CLEANER LID

17223-HN1-A40

$3.59

7

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.56

8

HOOK, R. LID SPRING (L. SIDE)

17228-HN1-000

Unavailable

9

HOOK, L. LID SPRING (R. SIDE)

17229-HN1-000

$2.41

10

TUBE, AIR CLEANER CONNECTING

17253-HR7-A80

$13.97

11

ELEMENT, AIR CLEANER

17254-HN1-000

$21.08

12

COVER, DUST

17256-HR3-A20

$0.46

13

TUBE, SNORKEL

17258-HR3-A20

$4.12

14

DUCT, SNORKEL

17259-HR3-A20

$41.04

15

TUBE, BREATHER

17366-HR6-A60

$53.29

16

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

17

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

18

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$32.48

19

GROMMET, TA SENSOR

37881-P2A-000

$4.51

20

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

21

BAND, AIR CLEANER CONNECTING TUBE

90658-HP5-600

$7.47

22

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.35

23

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.28

24

CLIP, WIRE HARNESS (BLACK)

91558-SD5-003

$7.22

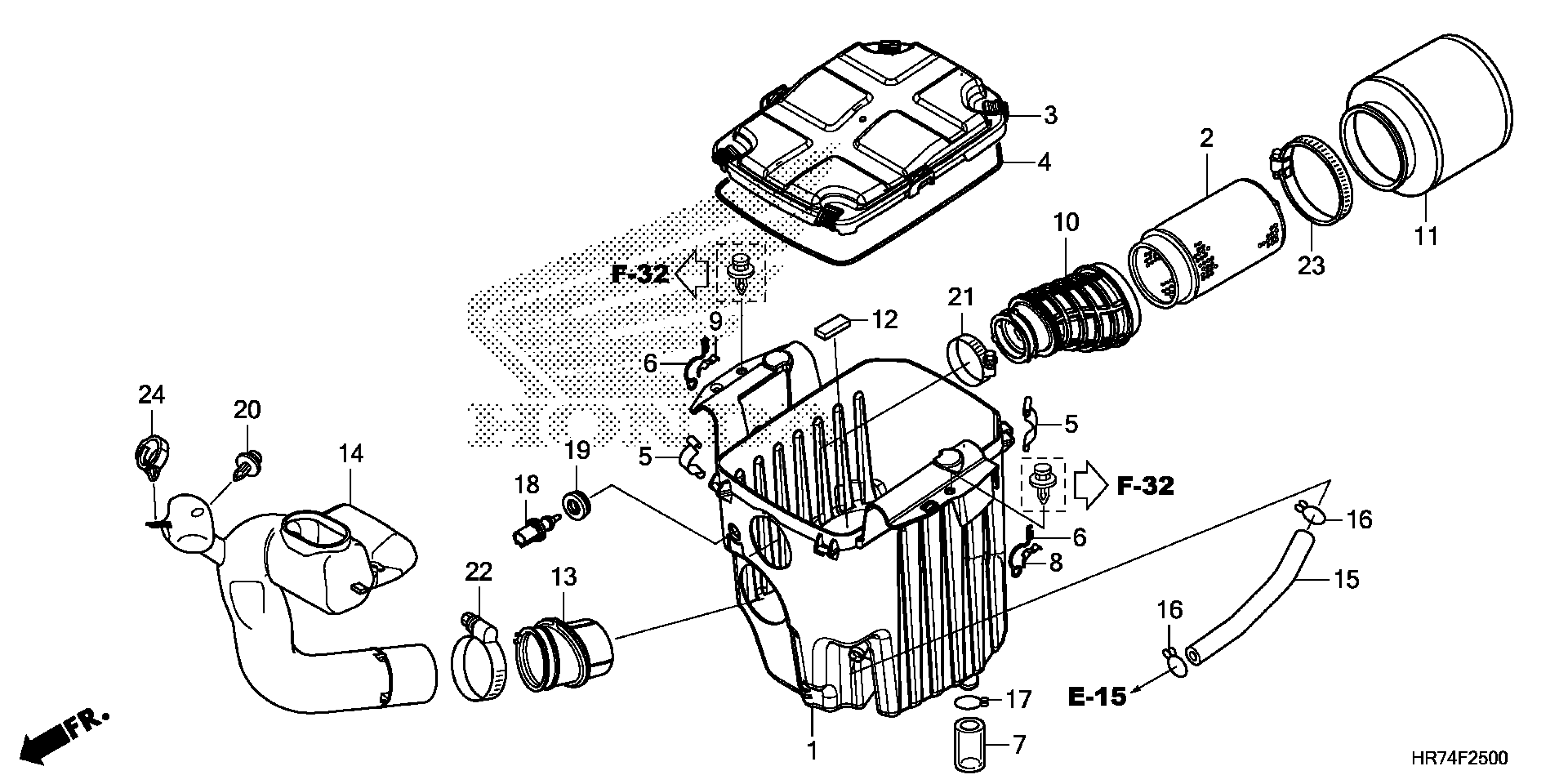

Honda TRX420FA5A (18) TRX420FA5, USA, VIN# 1HFTE47A-J4300001 AIR CLEANER Diagram
