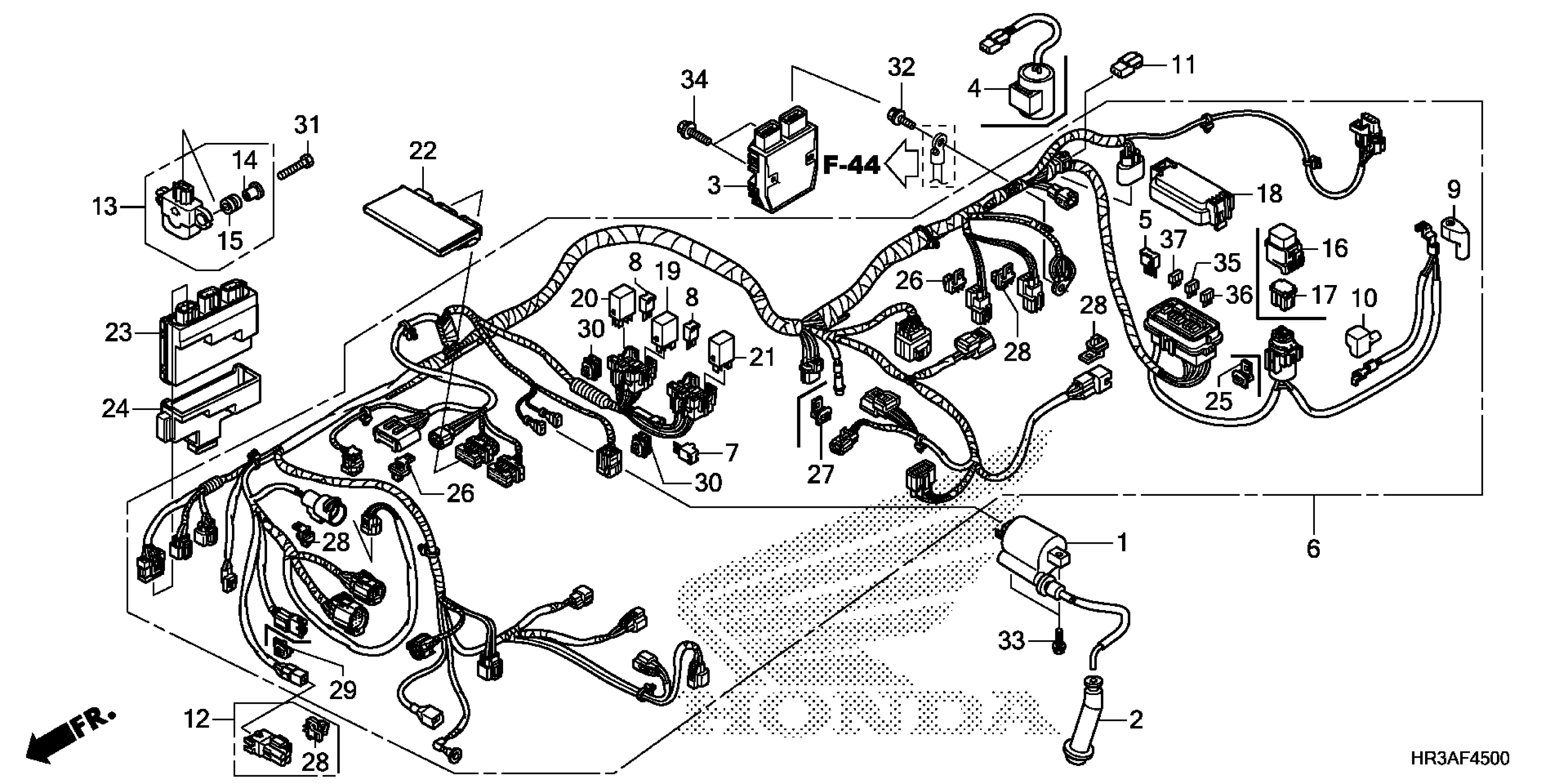

Honda TRX420FA2AC (15) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE414-F4100001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-HR3-A21

$78.43

2

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$27.80

3

RECTIFIER ASSY., REGULATOR This part replaces 31600-HR0-F01.

31600-MGZ-J01

$193.01

3

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$193.01

5

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

6

WIRE HARNESS

32100-HR3-670

$1,885.54

7

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

8

CONNECTOR, DIODE (2P)

32146-SH3-003

$18.39

9

COVER, BATTERY TERMINAL

32405-MEC-000

$9.36

10

COVER A, TERMINAL

32412-HW1-670

$2.59

11

CONNECTOR, DUMMY (2P 090 F) (BLACK)

32605-HR6-A60

$1.49

12

CONNECTOR & CLIP (4P 090 M) (DUMMY)(RED)

32606-HR3-A20

$3.44

13

SENSOR ASSY., BANK ANGLE

35160-HR0-F01

$92.12

14

COLLAR

35162-MGC-003

$4.49

15

GROMMET

35163-MGC-003

$2.25

16

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.67

17

FUSE, BLOCK (40A)

38211-SNA-A21

$4.45

18

COVER SET, FUSE

38230-HR3-A40

$2.79

19

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

20

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$10.37

21

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$3.53

22

PGM-FI UNIT This part replaces 38770-HR3-661.

38770-HR3-662

$263.97

22

PGM-FI UNIT

38770-HR3-662

$263.97

23

EPS UNIT This part replaces 39980-HR3-A71.

39980-HR3-A72

$456.31

23

EPS UNIT

39980-HR3-A72

$456.31

24

CUSHION, EPS UNIT

39981-HN2-B70

$6.13

25

CLIP, CONNECTOR (NATURAL)

91533-STK-003

$5.10

26

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

27

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

28

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

29

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

30

CLIP, RELAY HOLDER (NATURAL)

91536-STK-003

$1.49

31

BOLT, HEX. (6X25) BOLT-WASHER (6X25)

92101-06025-0A

$1.62

32

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

33

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

34

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

35

FUSE, MINI (10A)

98200-41000

$1.49

36

FUSE, MINI (20A)

98200-42000

$1.49

37

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
