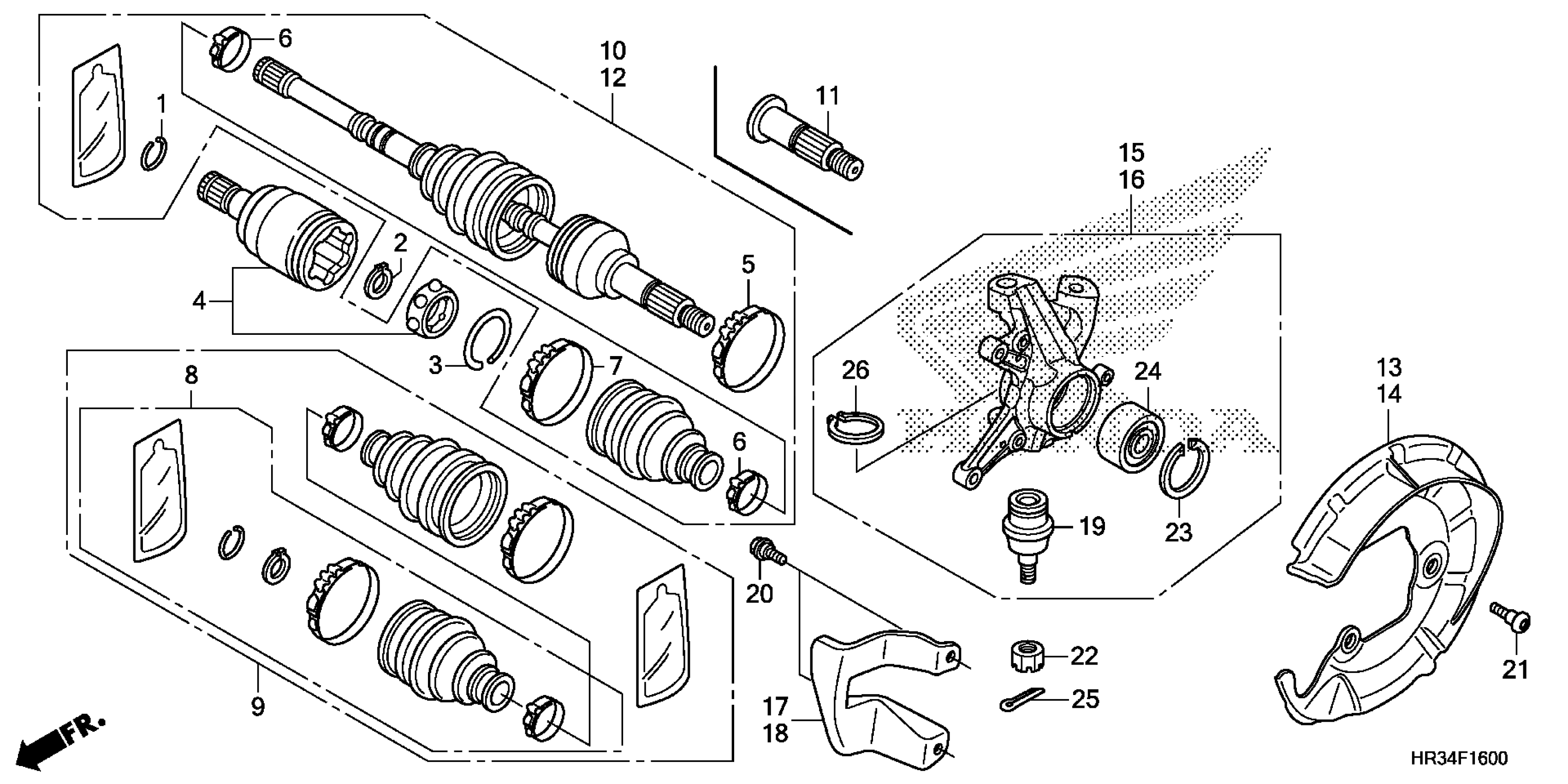

Honda TRX420FA2AC (14) TRX420FA2, USA, VIN# 1HFTE414-E4000001 FRONT KNUCKLE@FRONT DRIVE SHAFT Diagram

#

Description
Price

1

RING, SNAP

42206-HA7-671

$1.49

2

CIRCLIP

42209-HC5-003

$1.49

3

RING, SNAP

44207-HN8-A41

$7.95

4

JOINT, INBOARD

44220-HR3-A21

$107.61

5

BAND, OUTBOARD BOOT (NTN)

44225-HR3-A21

$4.25

6

BAND, SHAFT BOOT (NTN)

44226-HR3-A21

$3.75

7

BAND, INBOARD BOOT (NTN)

44228-HR3-A21

$3.80

8

BOOT SET, INBOARD This part replaces 44230-HR3-A21.

44230-HR3-A22

$77.34

9

BOOT SET This part replaces 44240-HR3-A21.

44240-HR3-A22

$85.32

9

BOOT SET

44240-HR3-A22

$85.32

10

SHAFT SET, R. FR. DRIVE This part replaces 44250-HR3-A21.

44250-HR3-A22

$173.26

10

SHAFT SET, R. FR. DRIVE

44250-HR3-A22

$173.26

12

SHAFT SET, L. FR. DRIVE This part replaces 44350-HR3-A21.

44350-HR3-A22

$172.87

12

SHAFT SET, L. FR. DRIVE

44350-HR3-A22

$172.87

13

SPLASH GUARD, R.

45255-HR3-A20

$6.20

14

SPLASH GUARD, L.

45256-HR3-A20

$6.20

15

KNUCKLE ASSY., R. FR.

51200-HR3-A20

$120.70

16

KNUCKLE ASSY., L. FR.

51250-HR3-A20

$120.70

17

GUARD, R. FR. OUTBOARD

51325-HR3-A20

$5.64

18

GUARD, L. FR. OUTBOARD

51326-HR3-A20

$5.12

19

JOINT A, ARM BALL

51375-HP5-601

$20.53

20

BOLT, FLANGE (6MM)

90111-187-000

$5.59

21

BOLT, SOCKET (6X15)

90114-HP0-A00

$2.11

22

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

23

CIRCLIP, SPECIAL (INNER) (56MM)

90651-HR3-A20

$8.96

24

BEARING, ANGULAR BALL (27X55X32)

91051-HR3-A21

$78.45

25

PIN, SPLIT (3.0X18)

94201-30180

$1.49

26

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85
