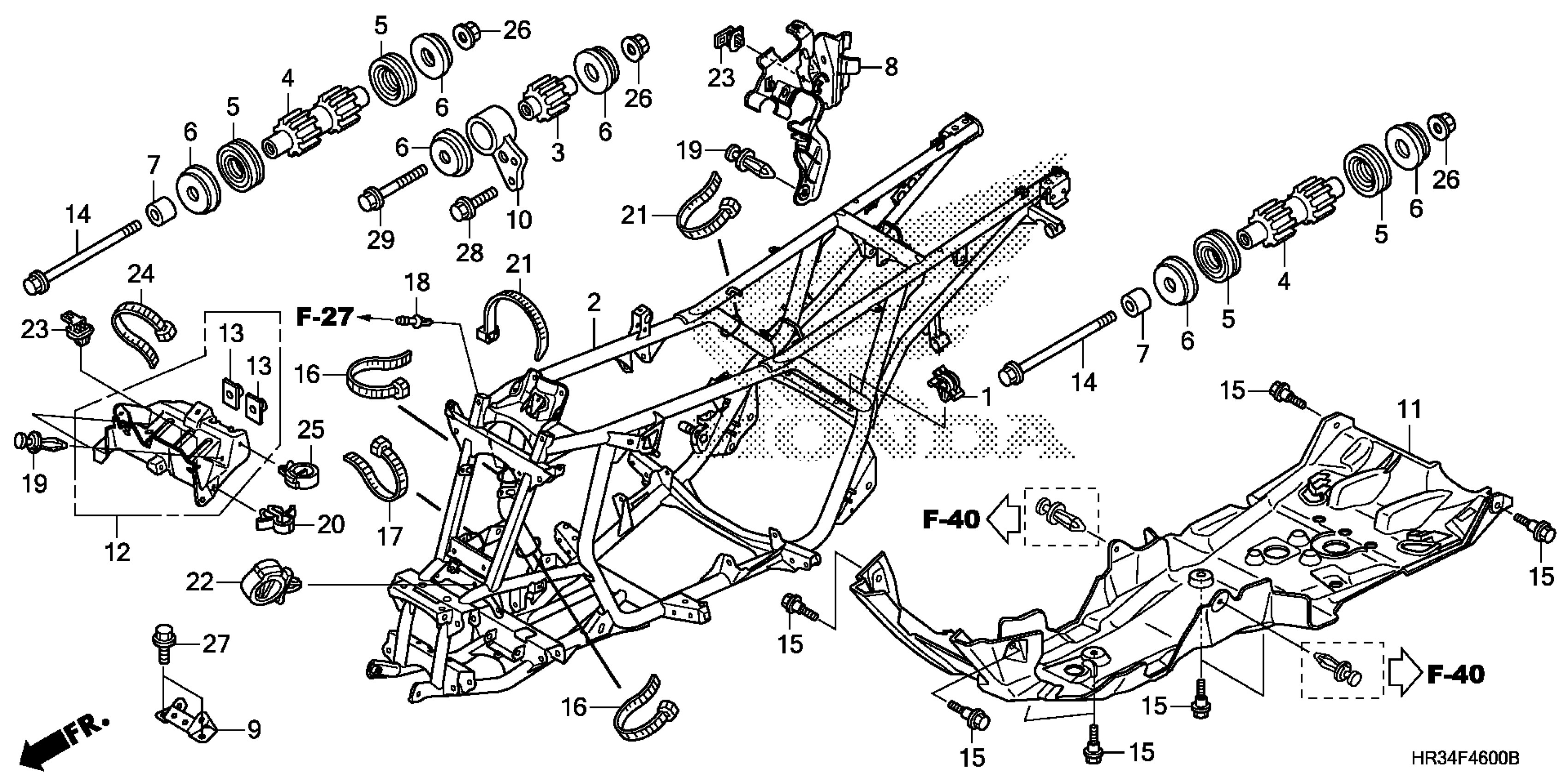

Honda TRX420FA2AC (14) TRX420FA2, USA, VIN# 1HFTE414-E4000001 FRAME Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32171-GJ1-003

$3.33

2

FRAME This part replaces 50100-HR3-A20.

50100-HR3-W50

$855.05

3

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$8.99

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$23.14

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

Unavailable

6

RUBBER C, MOUNTING

50204-HP5-600

$6.51

7

COLLAR, ENGINE HANGER

50205-HM8-000

$7.79

8

STAY, CONNECTOR (SIDE)

50340-HR3-A20

$4.40

9

BRACKET, FR. GEAR CASE

50350-HR3-A20

$6.66

10

BRACKET, HEAD HANGER

50351-HP5-600

$9.27

11

GUARD, ENGINE *NH1* (BLACK)

50360-HR3-A20ZA

$43.44

12

STAY, CONNECTOR (FR)

50370-HR3-A20

$8.51

13

NUT, SPECIAL (6X7)

61304-958-003

$3.10

14

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.35

15

BOLT, FLANGE (6MM)

90111-147-000

$2.66

16

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

17

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

18

JOINT, BREATHER TUBE

90652-HF7-003

$8.76

19

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

20

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$0.21

21

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.44

22

CLIP, WIRE HARNESS

90684-ZA0-601

$2.80

23

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

24

BAND, WIRE HARNESS

90651-MA6-720

$5.46

24

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.19

25

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

Unavailable

26

NUT, FLANGE (10MM)

94050-10000

$1.66

27

BOLT, FLANGE (8X16)

95701-08016-07

$1.99

28

BOLT, FLANGE (8X22)

95701-08022-00

$1.94

29

BOLT, FLANGE (10X60)

95701-10060-00

$1.82
