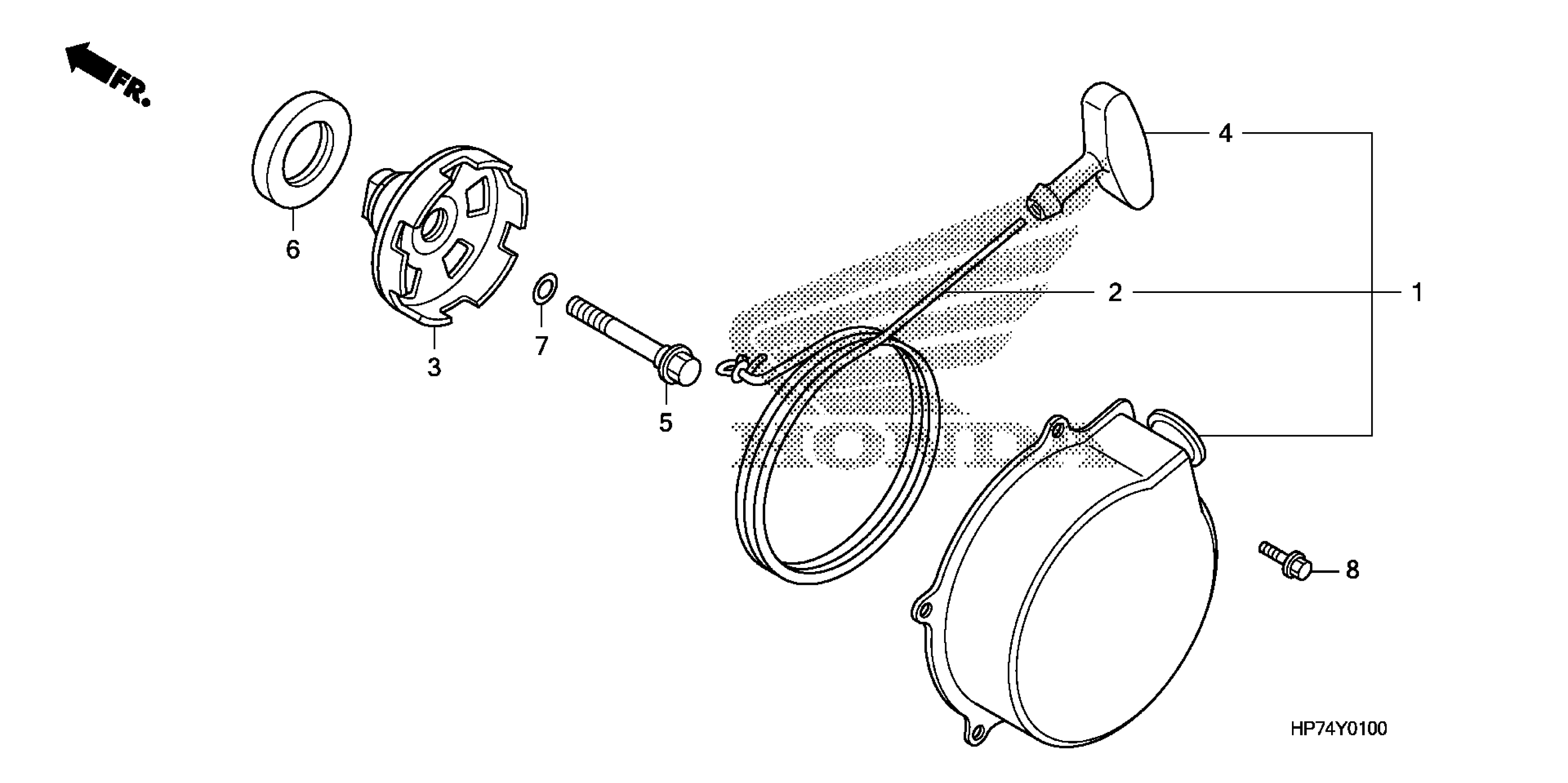

Honda TRX420FA2A (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE374-94000001 TO 1HFTE374-94099999 RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY., RECOIL This part replaces 28400-HP5-661.

28400-HR0-F21

$99.66

1

STARTER ASSY., RECOIL

28400-HR0-F21

$99.66

2

ROPE, RECOIL STARTER

28407-HM7-A11

$23.17

3

PULLEY, RECOIL

28430-HP5-660

$45.15

4

KNOB, RECOIL STARTER

28461-HP5-661

$21.24

5

BOLT, SPECIAL (12MM)

90081-HN5-670

$6.05

6

OIL SEAL (32X52X9) (ARAI)

91202-HP0-A01

$12.40

7

O-RING (11.5X2.3)

91303-679-003

Unavailable

8

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93
