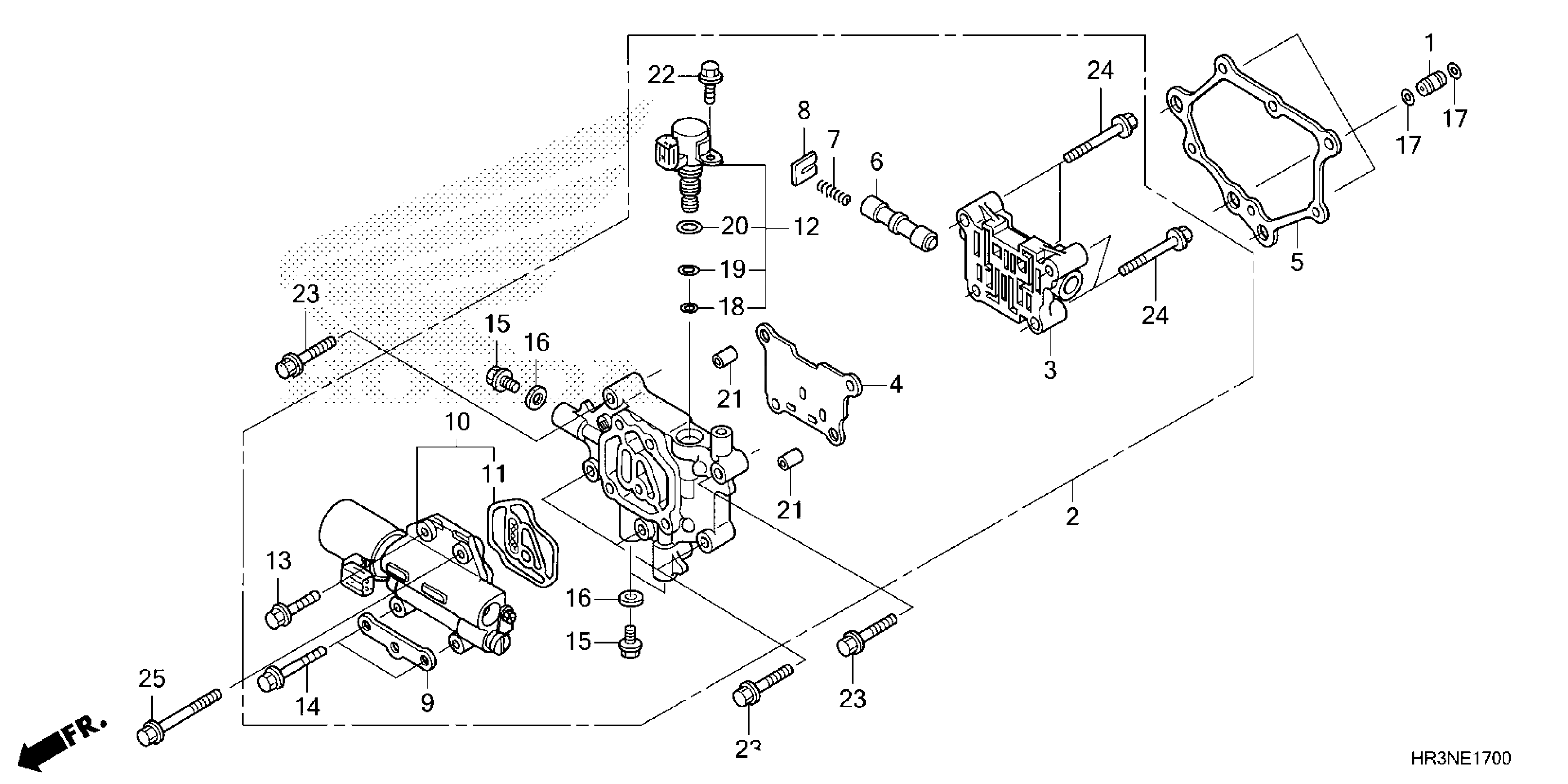

Honda TRX420FA22AC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE415-N4800001 MAIN VALVE BODY Diagram

PIN, OIL GUIDE (10MM)

11334-HN8-010

$9.89

BODY ASSY., VALVE

27100-HR6-B00

$592.57

BODY, CONTROL MAIN

27102-HP7-A00

$62.51

PLATE, VALVE BODY

27121-HR3-A60

$5.77

GASKET, OIL CONTROL COVER

27135-HP7-A01

$11.64

VALVE, SHIFT

27211-HP7-A00

$6.31

SPRING, VALVE

27231-HP7-A00

$1.49

SEAT, VALVE SPRING

27263-PX3-000

$4.48

STAY A, CLIP

32150-HP7-A00

$2.20

SOLENOID ASSY., LINEAR

38610-HR6-B01

$317.82

GASKET, BASE

38615-HN8-003

$22.19

SOLENOID ASSY. B

38630-HN8-003

$94.85

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, SEALING (8MM)

90024-612-000

$4.76

WASHER (8MM)

90471-580-000

$2.92

O-RING (7X1.7)

91301-473-003

$2.72

O-RING (7.6X1.9) (KEIHIN)

91301-P6H-003

$2.92

O-RING (9.6X1.9) This part replaces 91302-P6H-003.

91302-P7W-A00

$2.69

O-RING (9.6X1.9)

91302-P7W-A00

$2.69

O-RING (11.7X1.9) (KEIHIN)

91303-P6H-003

$2.92

PIN A, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.89

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
