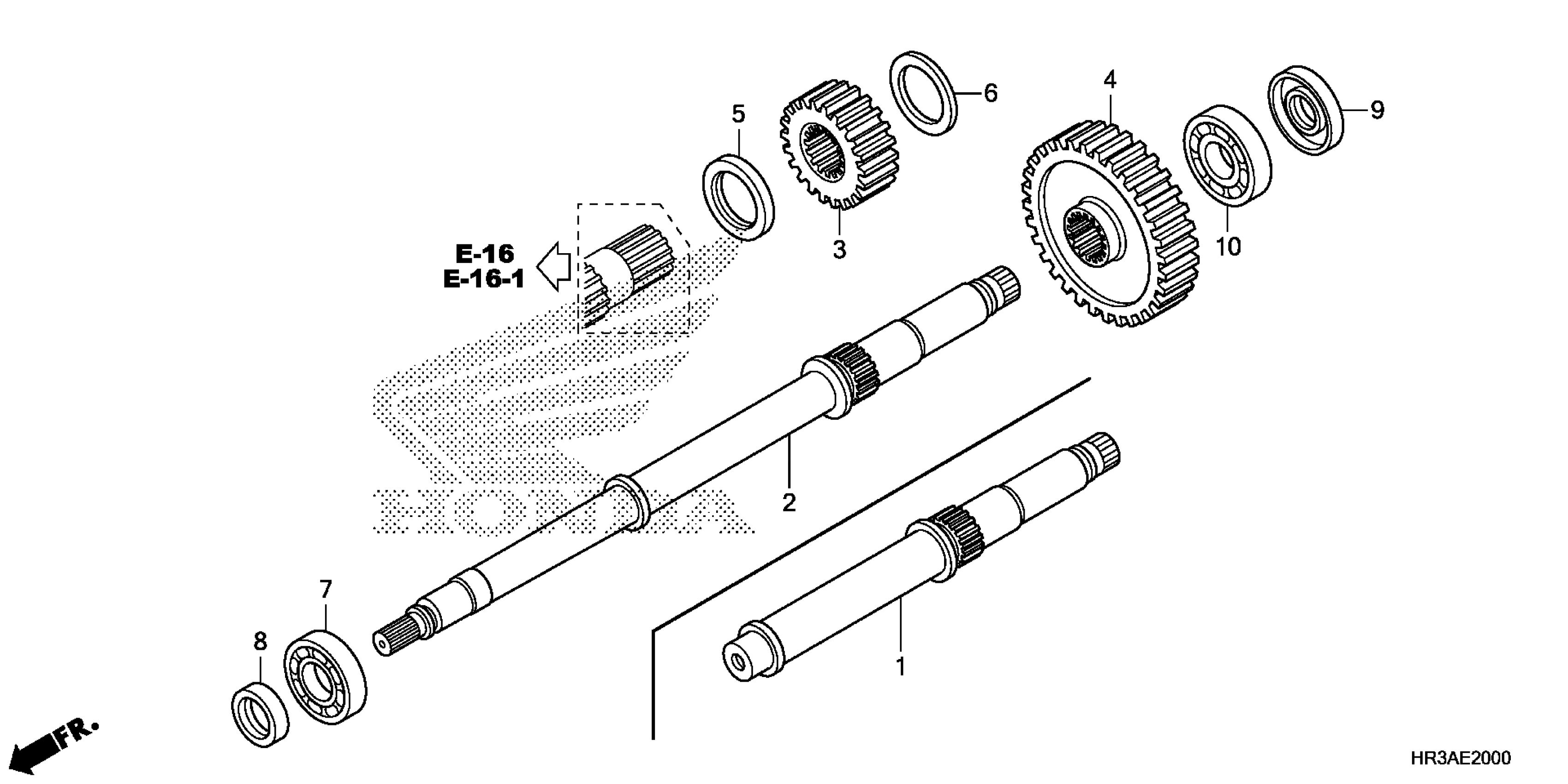

Honda TRX420FA22AC (15) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE415-F4100001 FINAL SHAFT Diagram

SHAFT, FINAL

23611-HR3-A60

$87.95

GEAR, FINAL DRIVE (25T)

23621-HP7-A00

$35.62

GEAR, FINAL DRIVEN (37T)

23631-HP7-A00

$53.49

COLLAR, DISTANCE (25MM)

75146-750-000

$6.56

WASHER C, THRUST (25MM)

90459-357-000

$3.60

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$11.84

OIL SEAL (22X35X7)

91202-HR0-F01

$8.18

OIL SEAL (25X45X7)

91204-HR0-F01

$2.92

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63
