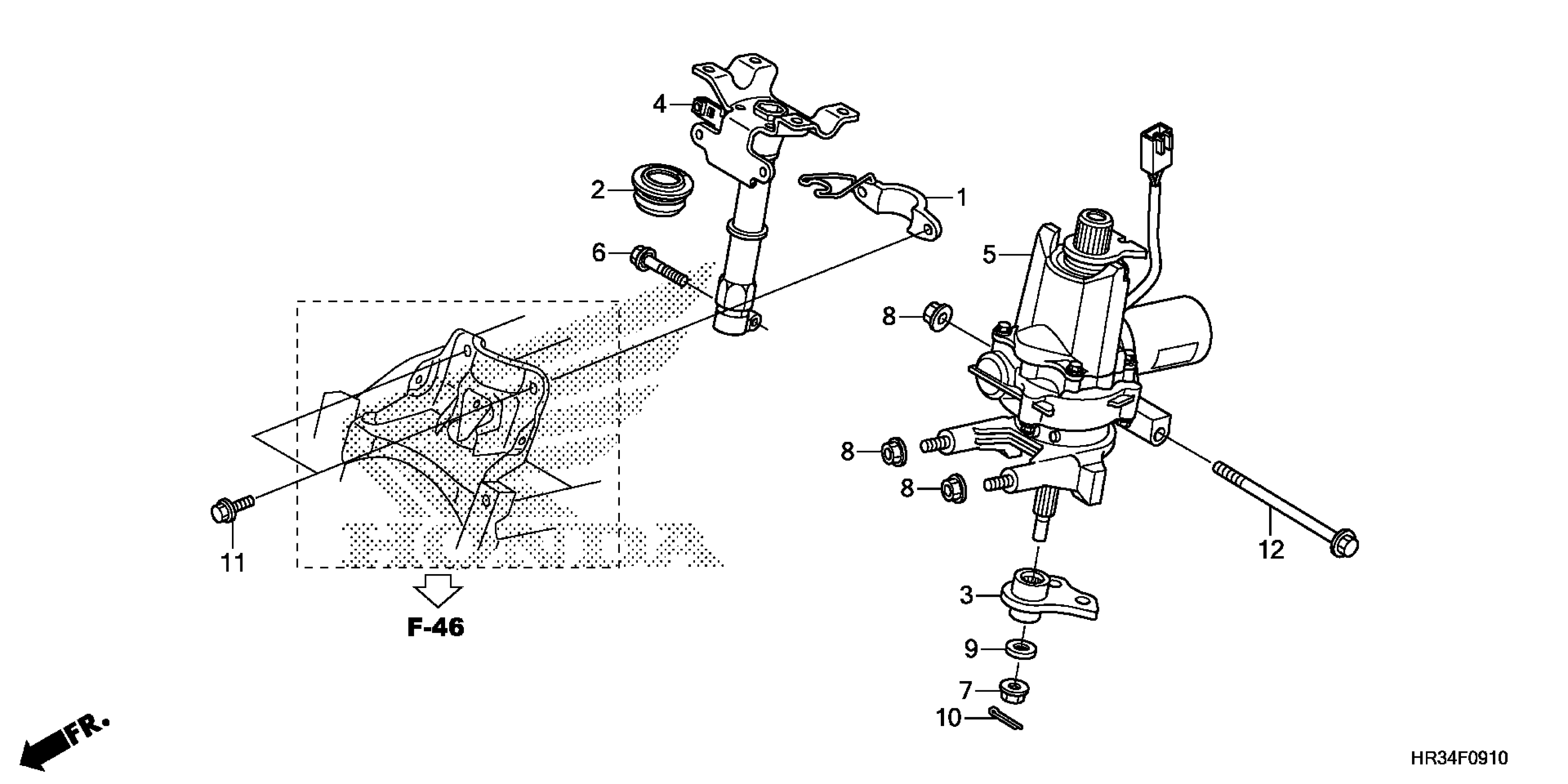

Honda TRX420FA22AC (14) TRX420FPA2, USA, VIN# 1HFTE415-E4000001 STEERING SHAFT (EPS) Diagram

HOLDER, STEERING SHAFT

53220-HR3-A20

$15.70

BUSH, STEERING

53221-HP0-B01

$16.70

ARM, STEERING

53230-HR3-A70

$27.89

SHAFT, STEERING

53310-HR3-A70

$99.18

EPS UNIT This part replaces 53600-HR3-A70.

53600-HR3-A71

$1,492.34

EPS UNIT

53600-HR3-A71

$1,492.34

BOLT, FLANGE (10X39)

90103-HP7-A30

$3.47

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

WASHER, THRUST (14MM)

90417-HA0-000

$3.67

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (10X160)

95801-10160-00

$4.28
