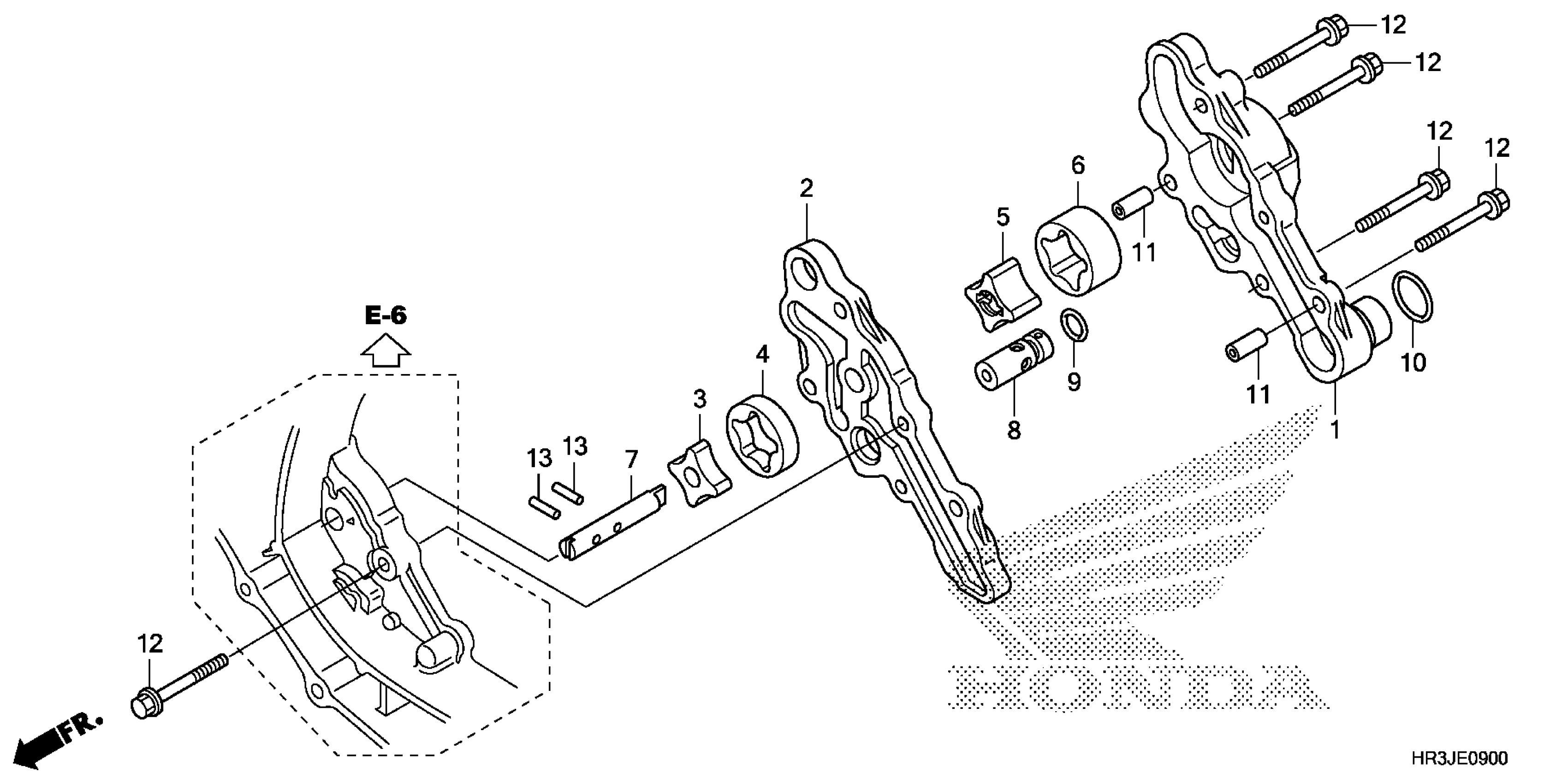

Honda TRX420FA22A (18) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE41A-J4400001 OIL PUMP (1) Diagram

#

Description

Price

1

BODY A, OIL PUMP

15101-HP7-A00

$20.20

2

BODY B, OIL PUMP

15102-HP7-A00

Unavailable

3

ROTOR A, OIL PUMP (INNER)

15122-HN2-003

$18.27

4

ROTOR A, OIL PUMP (OUTER)

15123-HN2-003

$20.12

5

ROTOR C, OIL PUMP (INNER)

15128-HP7-A01

$8.25

6

ROTOR C, OIL PUMP (OUTER)

15129-HP7-A01

$13.26

7

SHAFT, OIL PUMP

15132-HP7-A00

$9.76

8

VALVE ASSY., RELIEF

15220-HP7-A00

$16.16

9

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.52

9

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.52

10

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$2.98

11

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.62

12

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.74

13

ROLLER (4X15.8)

96220-40158

$0.41
