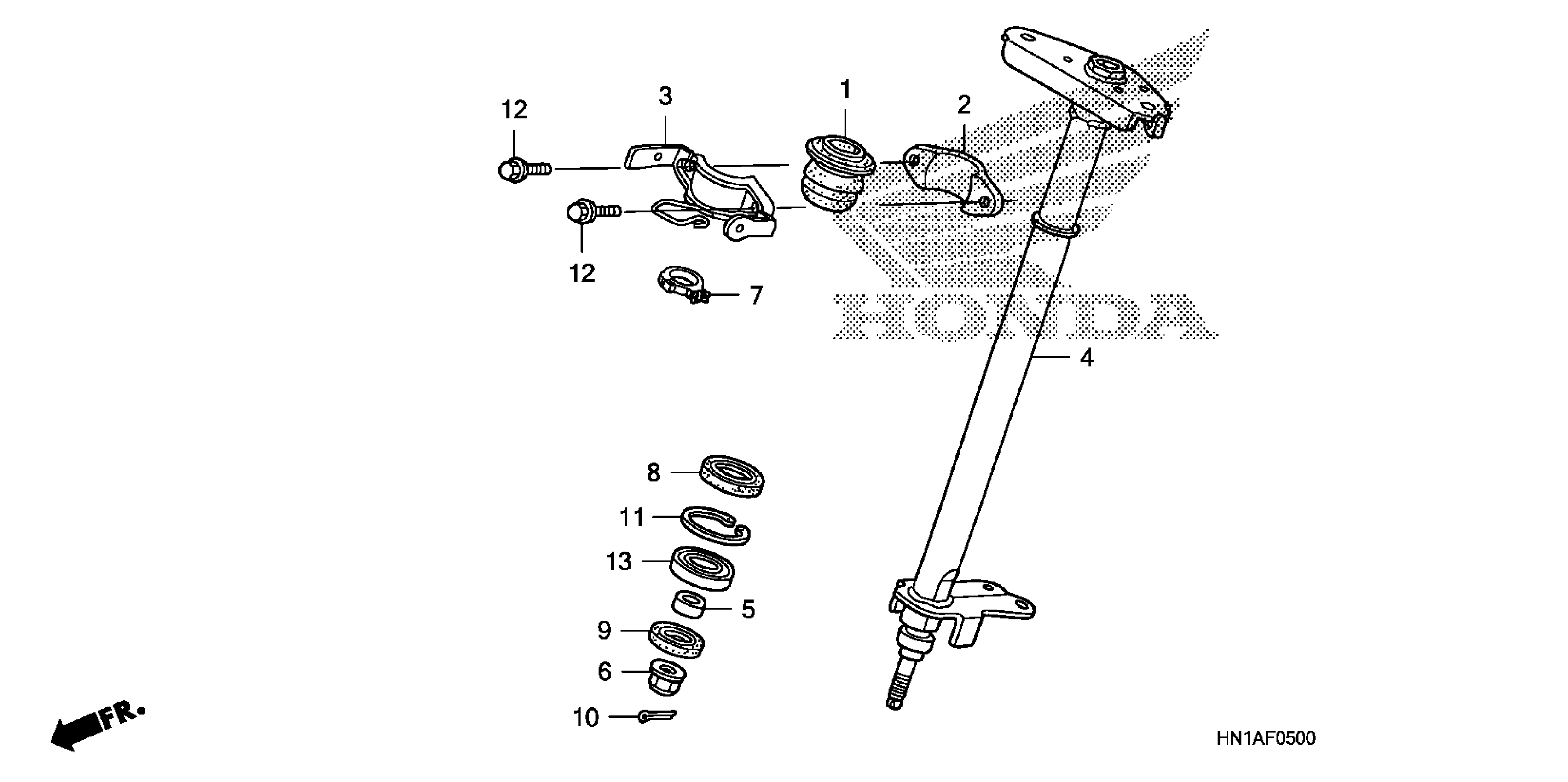

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 STEERING SHAFT Diagram

BUSH, STEERING

53221-HC4-004

$31.45

HOLDER, STEERING SHAFT

53223-HC4-000

$18.51

HOLDER B, STEERING SHAFT

53224-HN1-A71

$23.43

SHAFT, STEERING

53310-HN1-A10

$199.27

COLLAR, STEERING SHAFT

53317-HM8-A00

$6.59

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$8.66

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$8.66

DUST SEAL (23X35X7)

91205-VM6-003

$9.59

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

CIRCLIP, INNER (40MM)

94520-40000

$2.19

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BEARING, RADIAL BALL (6203UU)

96150-62033-10

$18.12
