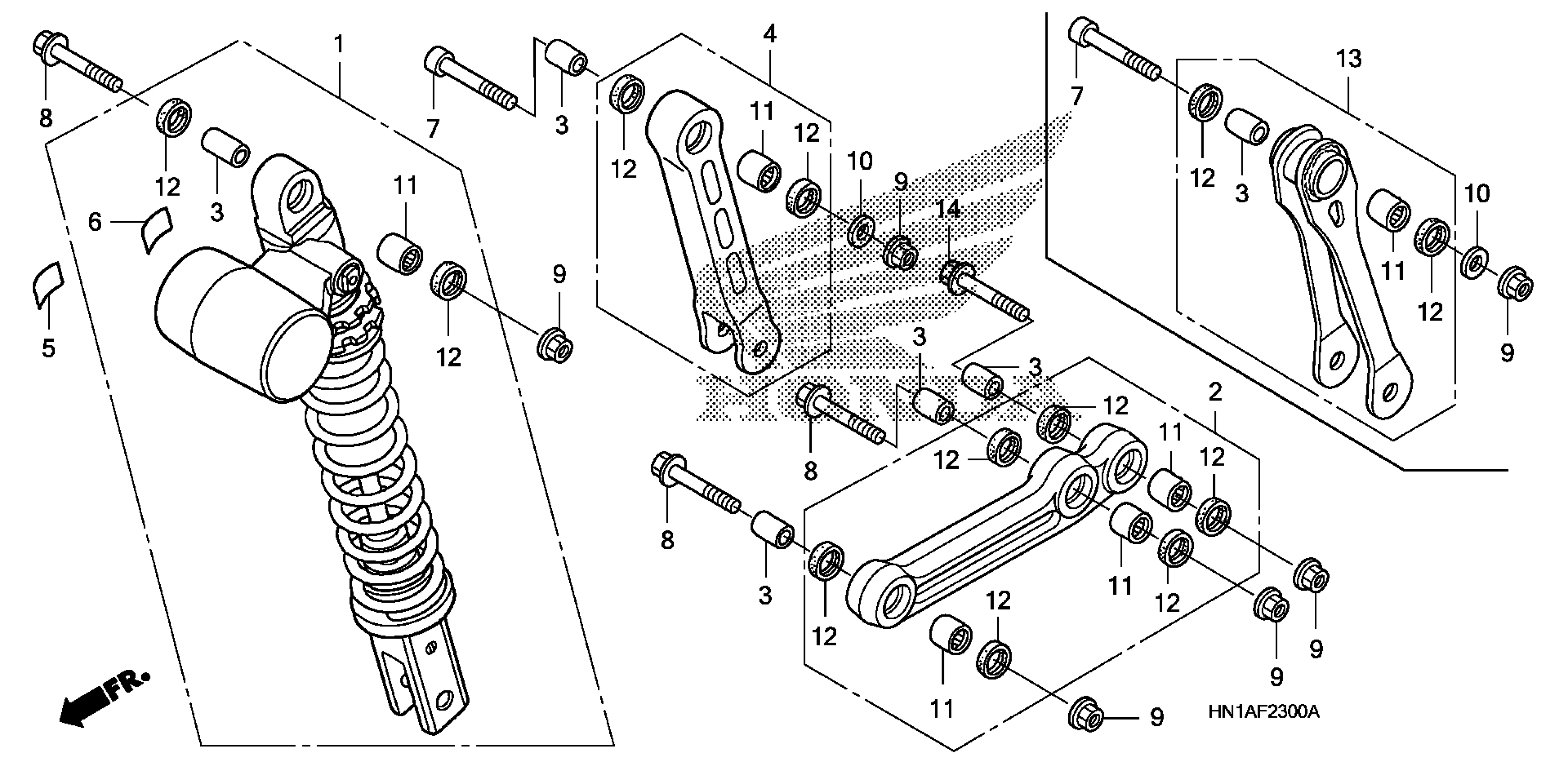

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR.

52400-HN1-A91

$1,113.98

2

ARM SUB-ASSY., CUSHION

52465-HN1-A40

$115.15

3

COLLAR C, CUSHION ARM

52465-MY1-000

$5.90

6

LABEL, RR. DAMPER

87516-MBL-610

$4.31

7

BOLT, RR. CUSHION

90105-KW6-840

$5.54

8

BOLT, SPECIAL FLANGE (10X58)

90153-965-000

$6.87

8

BOLT, SPECIAL FLANGE (10X58) This part replaces 90153-965-010.

90153-965-000

$6.87

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

10

WASHER, PLAIN (10MM)

90501-HN1-000

$3.08

11

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$19.69

12

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

13

ROD ASSY., CUSHION CONNECTING

52470-HN1-A70

$20.31

14

BOLT, FLANGE (10X50)

90153-HN1-A70

$5.64
