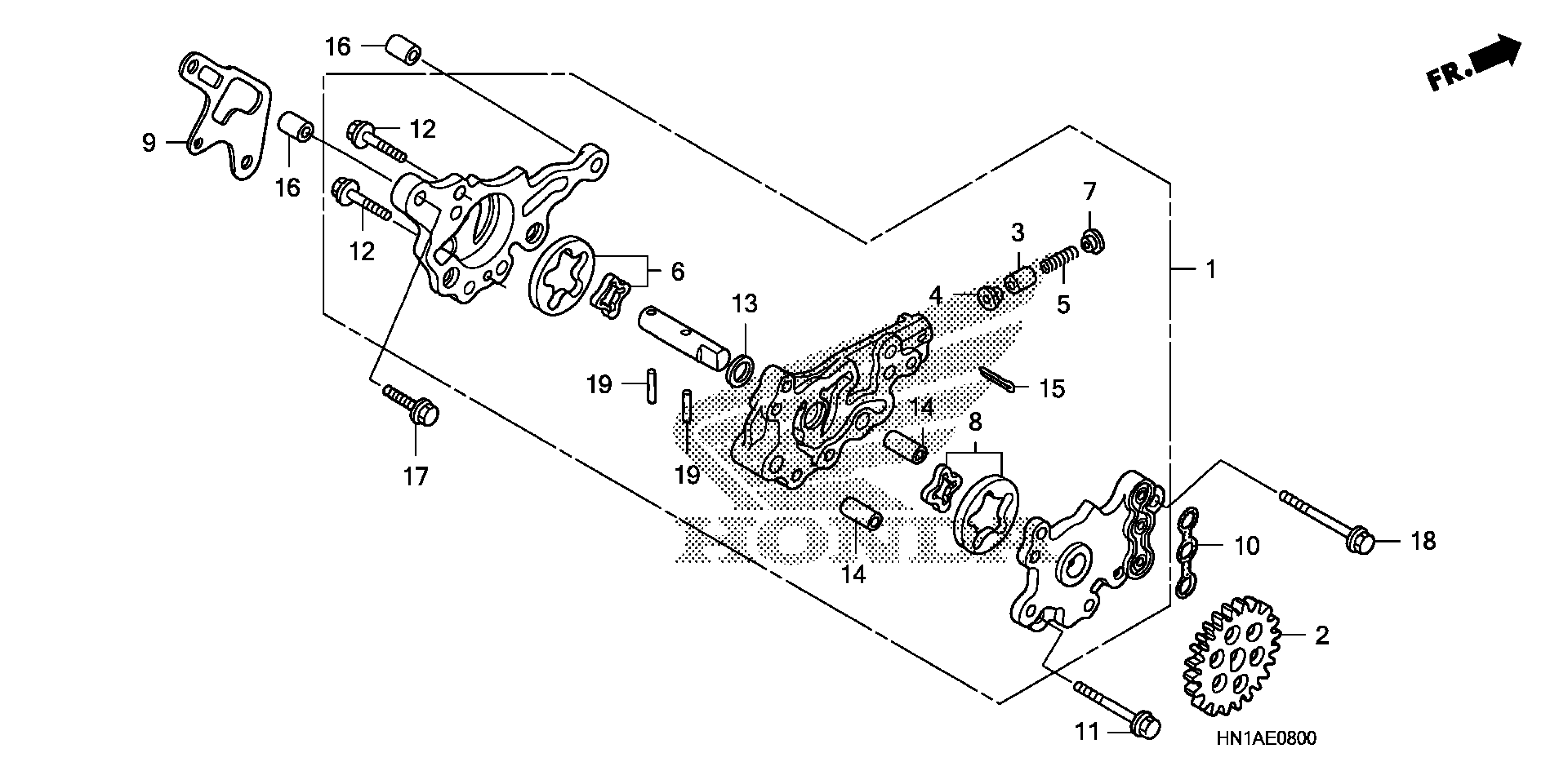

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-HN1-000

$121.25

2

GEAR, OIL PUMP DRIVEN (27T)

15105-KCY-670

$105.94

3

VALVE, OIL LEAK STOPPER

15106-MG3-000

$15.68

4

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.31

5

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.51

6

ROTOR SET, OIL PUMP This part replaces 15110-HN1-305.

15110-K0B-T00

$26.28

7

SEAT B, SPRING

15111-MG3-000

$2.69

8

ROTOR SET, OIL PUMP

15120-KCZ-305

$36.97

9

SEAT, OIL PUMP

15151-KCY-671

$6.69

10

SEAL, RUBBER

15152-KCY-670

$9.46

11

BOLT, FLANGE (6X40)

90002-HN1-000

$1.24

12

BOLT (6X25)

90003-GAV-701

$4.18

13

WASHER, THRUST (11MM)

90456-333-000

$2.46

14

PIN, DOWEL (8X19)

90701-KCY-670

$3.03

15

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.01

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

15

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.01

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

15

PIN, SPLIT (3.0X45)

94201-30450

$1.01

16

PIN, DOWEL (8X14)

94301-08140

$2.76

17

BOLT, FLANGE (6X32)

95701-06032-00

$1.88

18

BOLT, FLANGE (6X50)

95701-06050-00

$2.75

19

ROLLER (4X15.8)

96220-40158

$0.41
