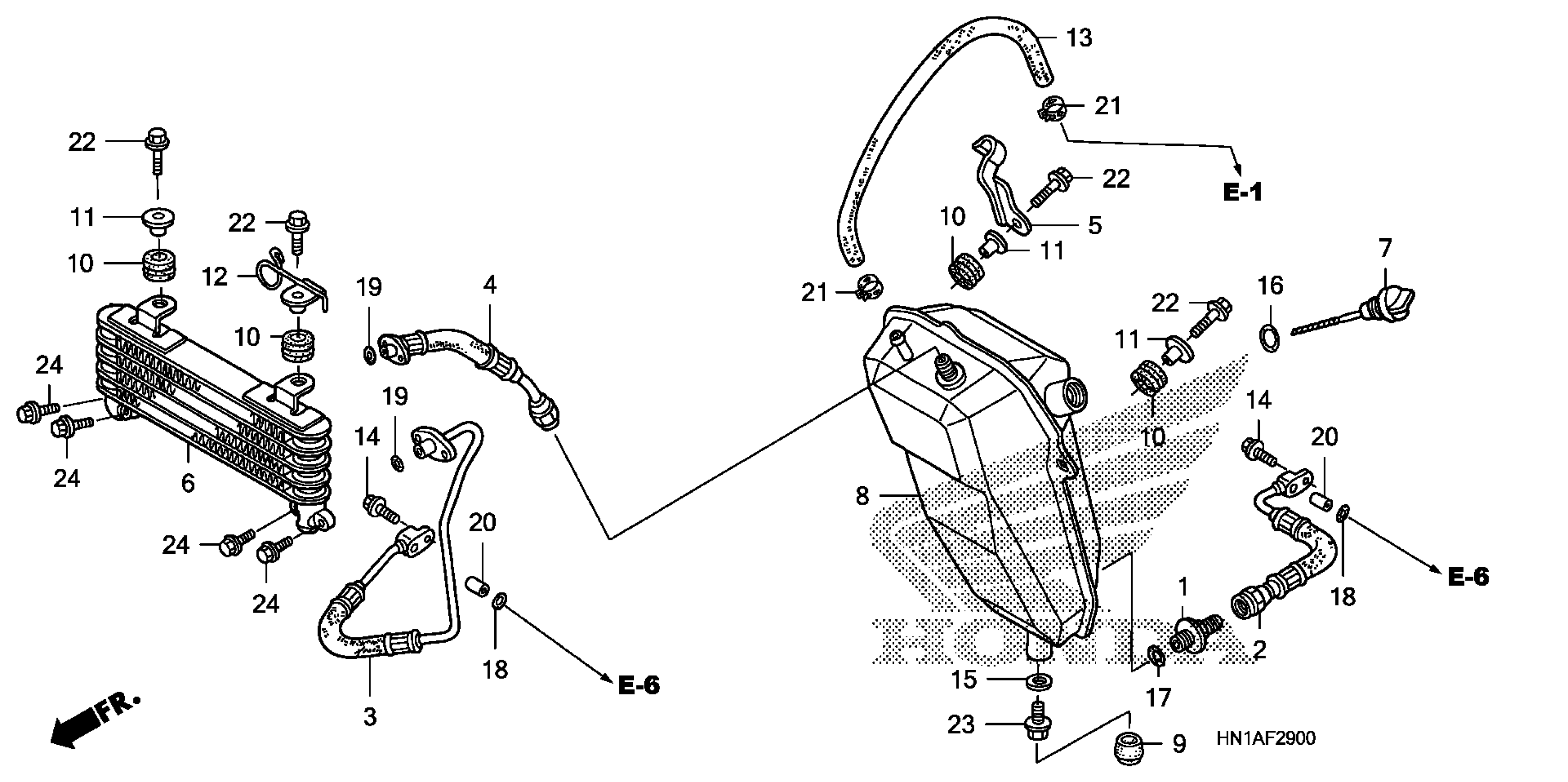

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 OIL COOLER Diagram

#

Description
Price

1

STRAINER, OIL

15500-HN1-000

$52.82

2

HOSE A, OIL

15510-HN1-000

Unavailable

3

HOSE B, OIL

15520-HN1-000

Unavailable

4

HOSE C, OIL

15530-HN1-000

Unavailable

5

GUIDE, OIL HOSE

15540-HN1-000

$8.76

6

COOLER, OIL

15600-HN1-A41

$78.79

7

DIPSTICK, OIL

15650-HN1-000

$12.33

8

TANK, OIL

15800-HN1-A30

$138.38

9

RUBBER, OIL TANK MOUNTING

15804-HN1-000

$5.03

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

11

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

12

GUIDE, BREATHER TUBE

50180-HN1-000

$10.77

13

TUBE, BREATHER

50185-HN1-000

$14.21

14

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

15

WASHER, SEALING (10MM)

90441-425-000

$2.13

16

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

17

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

$2.92

17

O-RING (25X3)

91305-384-750

$2.92

18

O-RING (9.8X1.9)

91305-PE2-003

$2.45

19

O-RING (11X2.4)

91314-HN6-000

$1.87

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

CLAMP, TUBE (D12.5)

95002-41250-00

$1.49

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

23

BOLT, FLANGE (10X16)

95701-10016-00

$1.49

24

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
