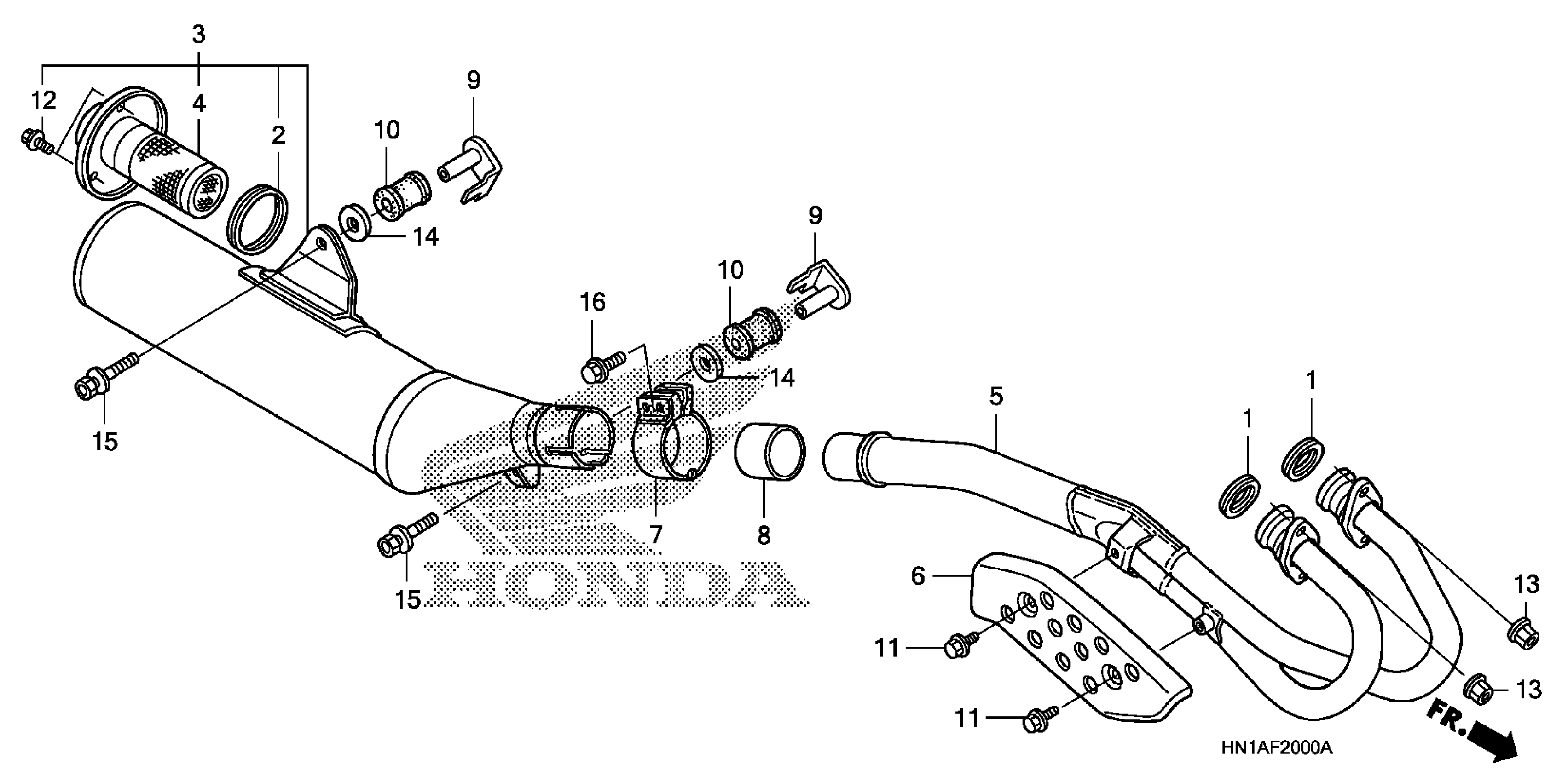

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.61

GASKET, MUFFLER

18292-MV4-000

$7.99

MUFFLER ASSY.

18300-HN1-A70

$1,156.29

ARRESTER, SPARK

18317-HN1-A70

Unavailable

PIPE, EX.

18320-HN1-000

Unavailable

PIPE, EX. This part replaces 18320-HN1-A70.

18320-HN1-000

Unavailable

PROTECTOR, EX. PIPE

18321-HN1-A70

$59.13

BAND, FR. EX. PIPE

18373-MR5-000

$23.91

GASKET, MUFFLER

18392-HN1-A20

$11.81

NUT, MOUNTING RUBBER

50607-HN1-A70

$21.95

RUBBER, MUFFLER MOUNTING

50608-HN1-000

$11.86

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.18

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.63

BOLT, FLANGE (6X10)

96001-06010-07

$1.63

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

WASHER (8MM)

90505-VA5-700

$4.35

BOLT-WASHER (8X25)

93404-08025-07

$2.80

BOLT, FLANGE (8X35)

95701-08035-08

$1.29
