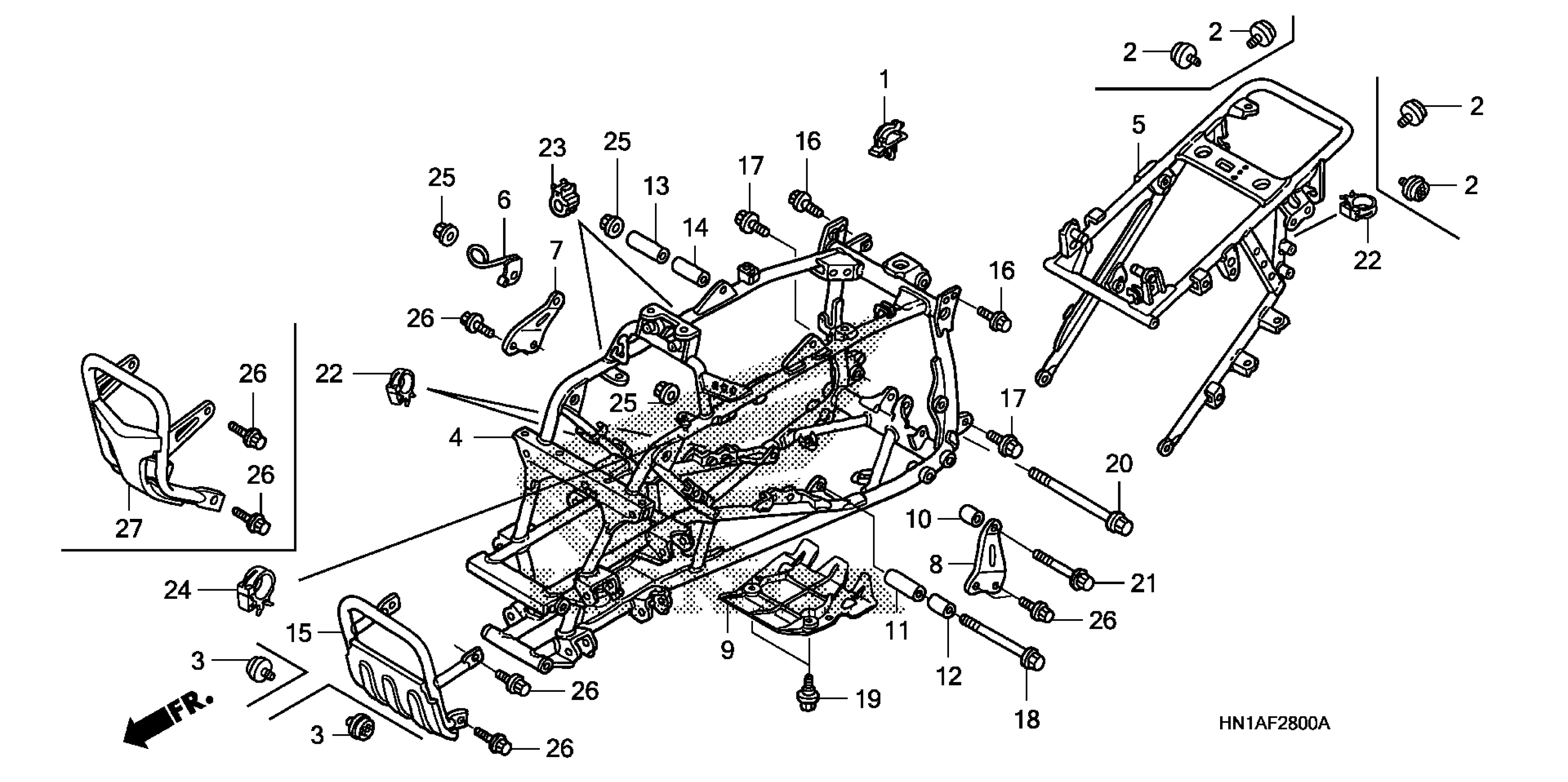

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 FRAME Diagram

#

Description
Price

4

FRAME *NH456M* (SILVER METALLIC) | Nitro red R299R;

50100-HN1-A71ZA

Unavailable

5

FRAME, RR. *NH456M* (SILVER METALLIC) | Nitro red R299R;

50200-HN1-A70ZA

Unavailable

6

GUIDE, CABLE

50255-HN1-000

$7.99

7

PLATE, R. FR. ENGINE HANGER

50351-HN1-A20

$22.10

8

PLATE, L. FR. ENGINE HANGER

50352-HN1-A20

$22.10

9

GUARD, ENGINE

50360-HN1-A40

$23.49

10

COLLAR, FR. ENGINE HANGER

50531-HN1-000

$5.22

11

COLLAR, R. ENGINE HANGER (LOWER)

50533-HN1-000

$11.50

12

COLLAR, L. ENGINE HANGER (LOWER)

50534-HN1-000

$4.30

13

COLLAR, R. ENGINE HANGER (UPPER)

50535-HN1-000

$17.35

14

COLLAR, L. ENGINE HANGER (UPPER)

50536-HN1-000

$23.49

16

BOLT, FLANGE (8X20)

90006-MN5-000

$4.24

17

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

18

BOLT, FLANGE (10X153)

90103-MY1-000

$14.42

19

BOLT, FLANGE (6MM)

90111-187-000

$5.59

20

BOLT, FLANGE (10X239)

90117-KK0-000

$11.58

21

BOLT, FLANGE (10X100)

90188-MG7-003

$11.12

22

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

23

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

24

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

25

NUT, FLANGE (10MM)

94050-10000

$1.59

26

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

27

PIPE, FR. CARRY *NH456M* (SILVER METALLIC) | Nitro red R299R;

81150-HN1-A70ZA

$143.69
