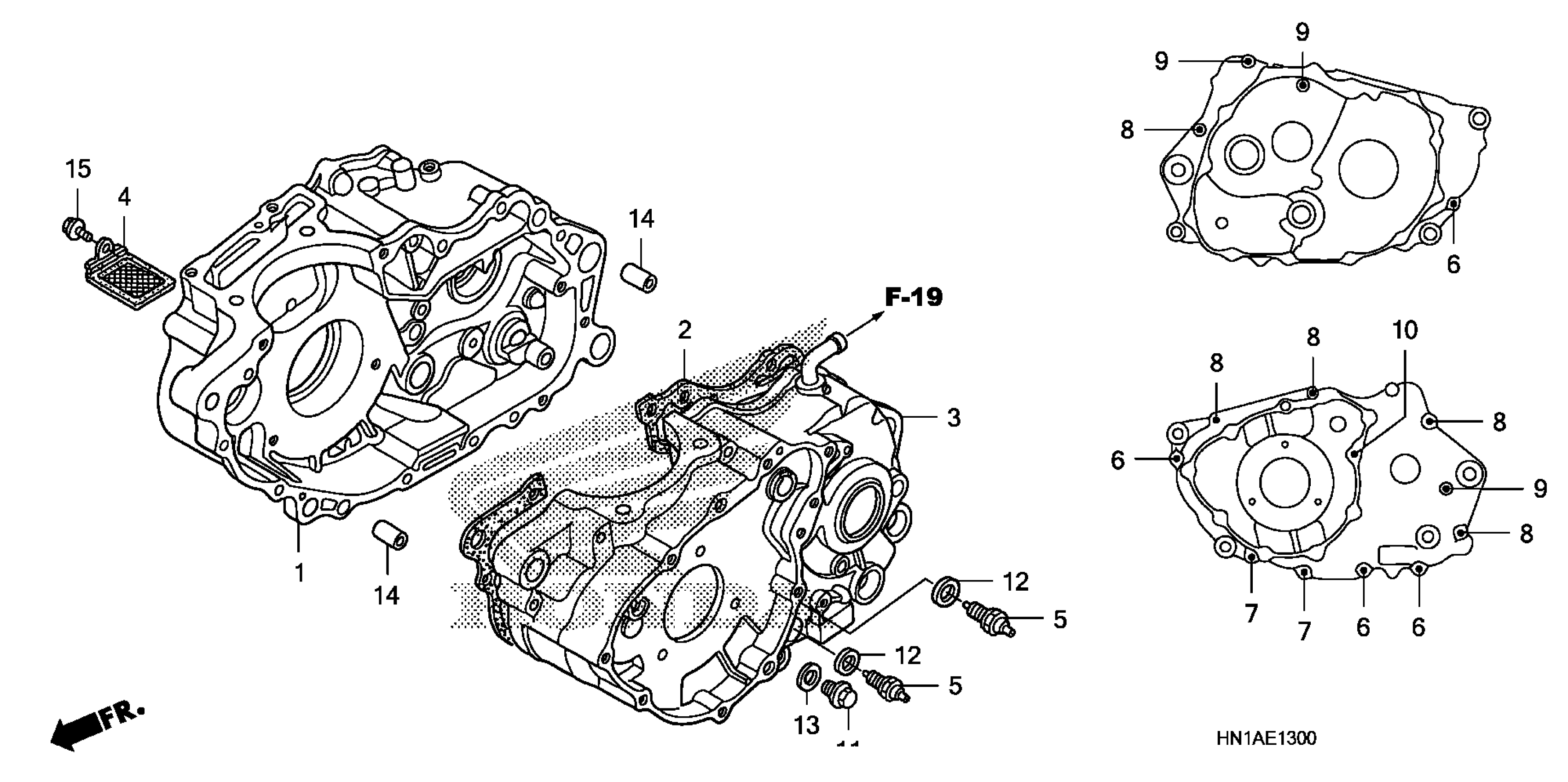

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 CRANKCASE Diagram

CRANKCASE, R.

11100-HN1-A70

$388.74

GASKET, CRANKCASE

11191-HN1-A40

$16.89

CRANKCASE, L.

11200-HN1-A70

$539.13

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$9.90

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$16.98

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$3.95

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.19

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.15

BOLT, SPECIAL STUD

90011-HN1-A40

$3.52

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.00

WASHER, OIL BOLT

90545-300-000

$3.72

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN, DOWEL (10X16)

94301-10160

$2.24

BOLT, FLANGE (6X14)

95701-06014-00

$0.91
