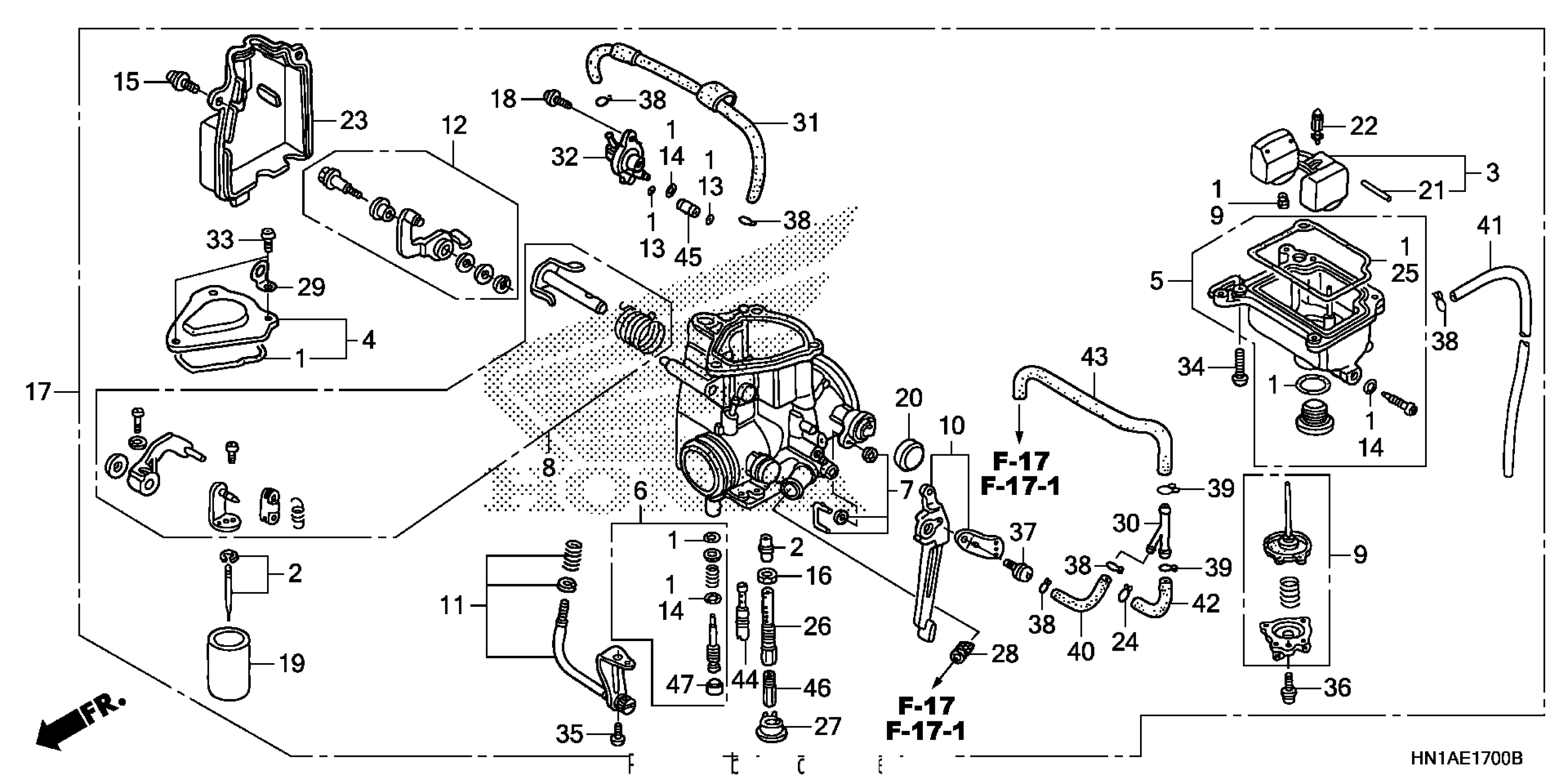

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HN1-A42

$23.49

2

NEEDLE SET, JET

16012-HN1-A41

$19.88

3

FLOAT SET

16013-HN8-003

$35.32

4

TOP SET

16014-HN1-003

$24.77

5

CHAMBER SET, FLOAT

16015-HN1-A41

$59.96

6

SCREW SET

16016-HN1-A42

$16.33

7

ROD SET, CHOKE

16017-HN1-003

$35.77

8

ARM SET, LINK

16018-HN1-A41

$40.43

9

DIAPHRAGM SET, PUMP

16021-HN1-A41

$36.38

10

LEVER SET, CHOKE

16025-HM3-L00

$28.48

11

SCREW SET

16028-HN1-003

$28.71

12

ARM SET, PUMP

16031-HM3-L00

$74.97

13

O-RING (1.3X2.8)

16075-GHB-630

$1.90

14

O-RING (1.3X4.3)

16075-GHB-640

$2.65

15

SCREW-WASHER

16080-HC0-003

$3.86

16

NUT, HEX.

16096-HC0-003

$3.86

17

CARBURETOR ASSY. (QB11A B)

16100-HN1-A43

$238.92

18

SCREW

16108-MW0-750

$2.29

19

VALVE, THROTTLE

16111-HN1-003

$71.17

20

CAP, CHOKE DUST

16148-141-881

$4.43

21

PIN, ARM

16152-HN8-003

$3.80

22

VALVE, FLOAT

16155-HN7-003

$25.94

23

COVER, BODY

16160-HN1-003

$35.38

24

CLIP, TUBE

16163-KM4-004

$2.78

25

GASKET, FLOAT CHAMBER

16163-MEA-671

$20.80

26

HOLDER, NEEDLE JET

16165-HN1-003

$26.22

27

HOLDER, JET

16168-HC4-003

$9.70

28

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36

29

BINDER

16179-HA0-003

$11.71

30

JOINT

16180-ML6-671

$14.34

31

TUBE

16199-HN1-003

$5.13

32

VALVE ASSY., AIR CUT

16510-MZ2-650

$81.31

33

SCREW, PAN (4X8)

93500-04008-0H

$0.83

33

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

34

SCREW, PAN (4X14)

93500-04014-0H

$0.75

34

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.75

35

SCREW, PAN (6X10)

93500-06010-0H

Unavailable

35

SCREW, PAN (6X10) This part replaces 93500-06010-1H.

93500-06010-0H

Unavailable

36

SCREW-WASHER (4X12)

93892-04012-08

$0.58

36

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

37

SCREW-WASHER (5X10)

93892-05010-18

$1.04

38

CLIP, TUBE (B7)

95002-02079

$1.09

39

CLIP, TUBE (B1 8)

95002-02089

Unavailable

40

BULK HOSE, VACUUM (3.5X1000) (3.5X50)

95005-35001-50M

$12.31

41

BULK HOSE, VACUUM (3.5X1000) (3.5X400)

95005-35001-50M

$12.31

42

BULK HOSE, VACUUM (4.5X1000) (4.5X50)

95005-45001-50M

$6.52

43

BULK HOSE, VACUUM (4.5X1000) (4.5X220)

95005-45001-50M

$6.52

44

JET, SLOW (#38)

99103-420-0380

$9.68

45

JET (#110) This part replaces 99108-MW0-1102.

99108-MY1-1100

Unavailable

46

JET, MAIN (#142) | (Optional).

99113-GHB-1420

$8.78

46

JET, MAIN (#148)

99113-GHB-1480

$8.17

47

CAP, ADJUSTING SCREW

16312-KYK-911

$2.46
