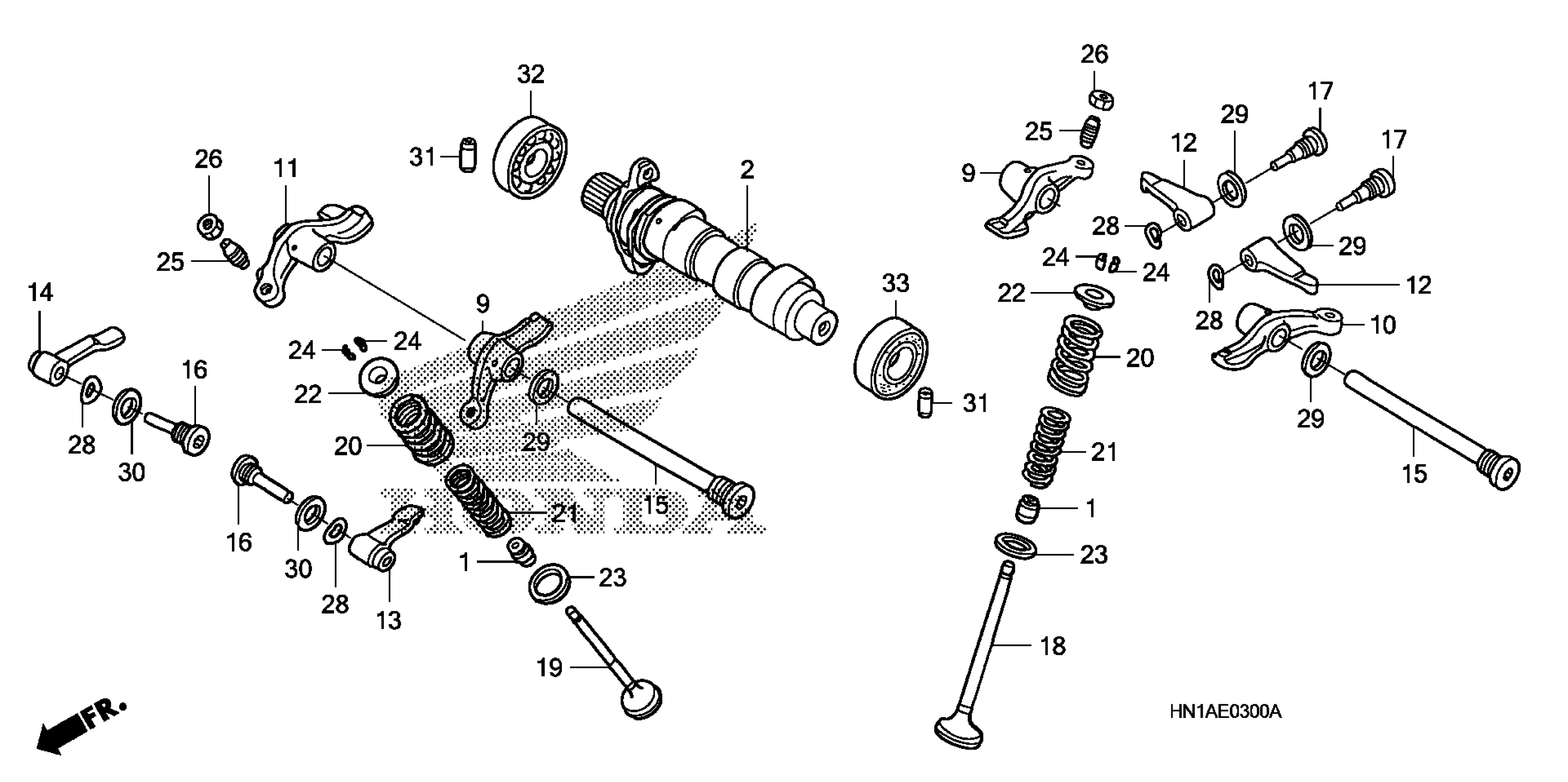

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.81

CAMSHAFT ASSY.

14000-HN1-A70

$247.57

ARM A, ROCKER

14411-KCY-670

$52.03

ARM B, ROCKER

14421-KCY-670

$52.03

ARM C, ROCKER

14431-KCY-670

$52.03

ARM, IN. VALVE SUB-ROCKER

14445-KF0-000

$31.43

ARM, L. EX. VALVE SUB-ROCKER

14446-KF0-000

$35.34

ARM, R. EX. VALVE SUB-ROCKER

14447-KF0-000

$35.34

BOLT, ROCKER ARM SHAFT

14451-MBV-000

$29.93

SHAFT A, SUB-ROCKER ARM

14455-KCY-670

$25.68

SHAFT B, SUB-ROCKER ARM

14456-KCY-670

$40.89

VALVE, IN.

14711-KCY-670

$33.57

VALVE, EX.

14721-KCY-670

$62.30

SPRING, VALVE (OUTER)

14751-KCY-670

$10.96

SPRING, VALVE (INNER)

14761-KG0-003

$6.41

RETAINER, VALVE SPRING

14771-107-020

$7.99

SEAT, VALVE SPRING (OUTER)

14775-KCY-670

$5.78

COTTER, VALVE

14781-HA0-770

$3.45

SCREW, TAPPET ADJUSTING

90012-MG3-000

$9.89

NUT, TAPPET ADJUSTING

90206-590-000

$4.83

WASHER, WAVE

90406-KF0-003

$2.92

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

WASHER (12MM)

90545-KF0-000

$3.26

PIN, DOWEL (10X18)

90701-KF0-000

$4.80

BEARING, RADIAL BALL (18X37X9) (NTN)

91002-MN1-671

$40.06

BEARING, RADIAL BALL (6904)

91003-KF0-008

$14.20
