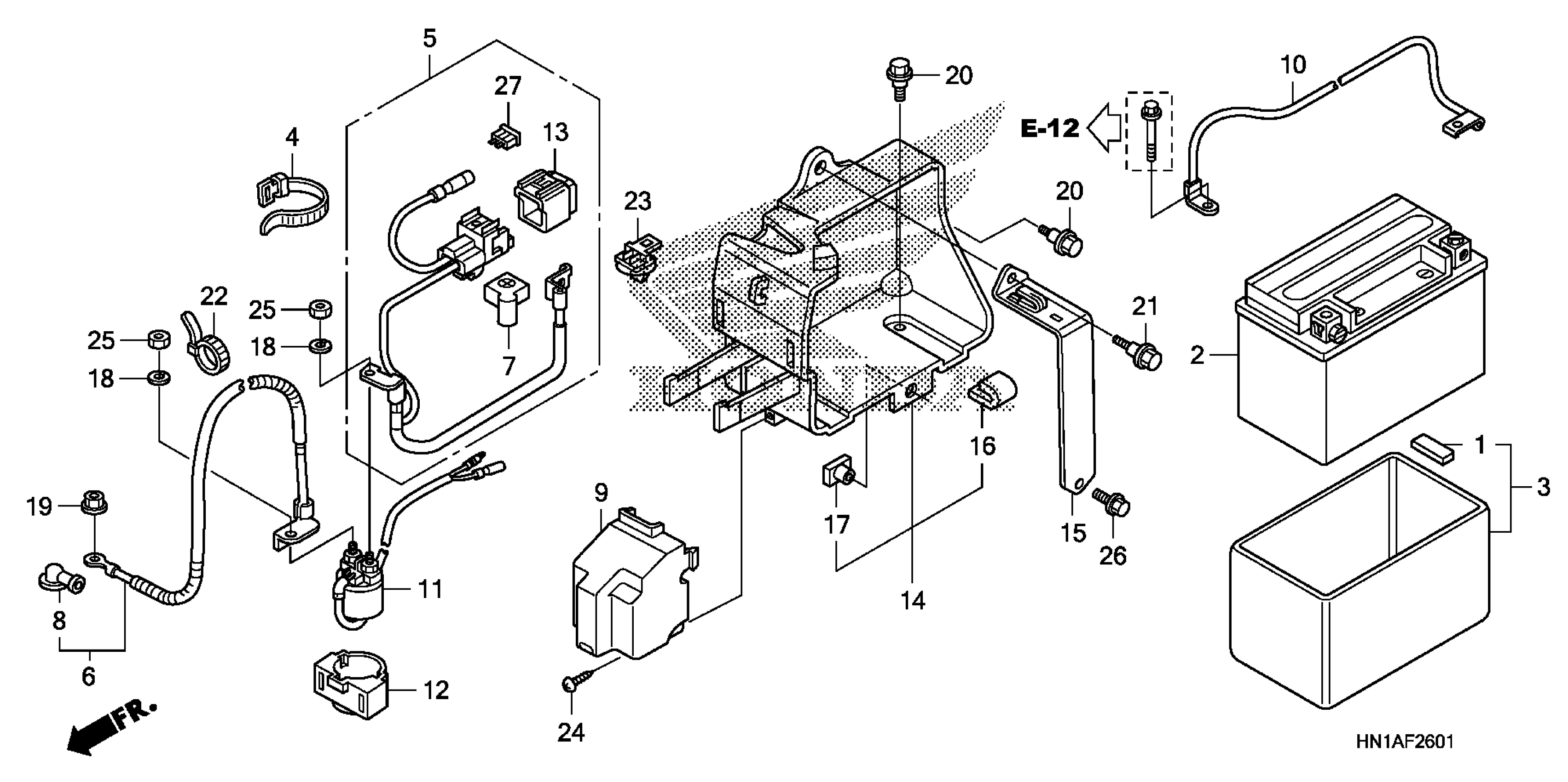

Honda TRX400XAC (14) TRX400X, USA, VIN# 1HFTE230-F4600001 BATTERY (2) Diagram

#

Description
Price

1

RUBBER, CUSHION

17508-MN5-000

$3.92

2

BATTERY (YTX9-BS) (YUASA) (MSDS)

31500-HN1-003AH

Unavailable

3

TRAY, BATTERY

31521-HM3-000

$31.82

4

BAND B1, WIRE

32161-404-610

$2.23

5

CABLE, STARTER BATTERY

32401-HN1-A70

$44.59

6

CABLE, STARTER MOTOR

32402-HN1-A70

$13.43

7

COVER, BATTERY TERMINAL

32411-HA6-681

$5.61

8

COVER, TERMINAL

32411-473-000

$6.05

9

COVER, MAGNETIC SWITCH TERMINAL

32416-HN1-A70

$7.54

10

CABLE, BATTERY GROUND

32601-HN1-A40

$21.64

11

SWITCH ASSY., STARTER MAGNETIC

35850-HN1-A70

$48.13

12

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

13

COVER ASSY., FUSE (15A)

38216-ZV5-003

$4.35

14

BOX, BATTERY

50325-HN1-A70

$38.93

15

BAND, BATTERY

50326-HN1-A70

$27.74

16

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.33

17

NUT, SPECIAL (6X7)

61304-958-003

$3.24

18

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

19

NUT-WASHER (6MM)

90071-MB0-000

$1.97

20

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

21

BOLT, FLANGE (6MM)

90111-147-000

$2.75

22

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

23

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

24

SCREW, TAPPING (4X10)

93913-24180

$1.49

25

NUT, HEX. (6MM)

94002-06390-0S

$1.49

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

27

FUSE, BLADE (15A)

98200-31500

$1.49
