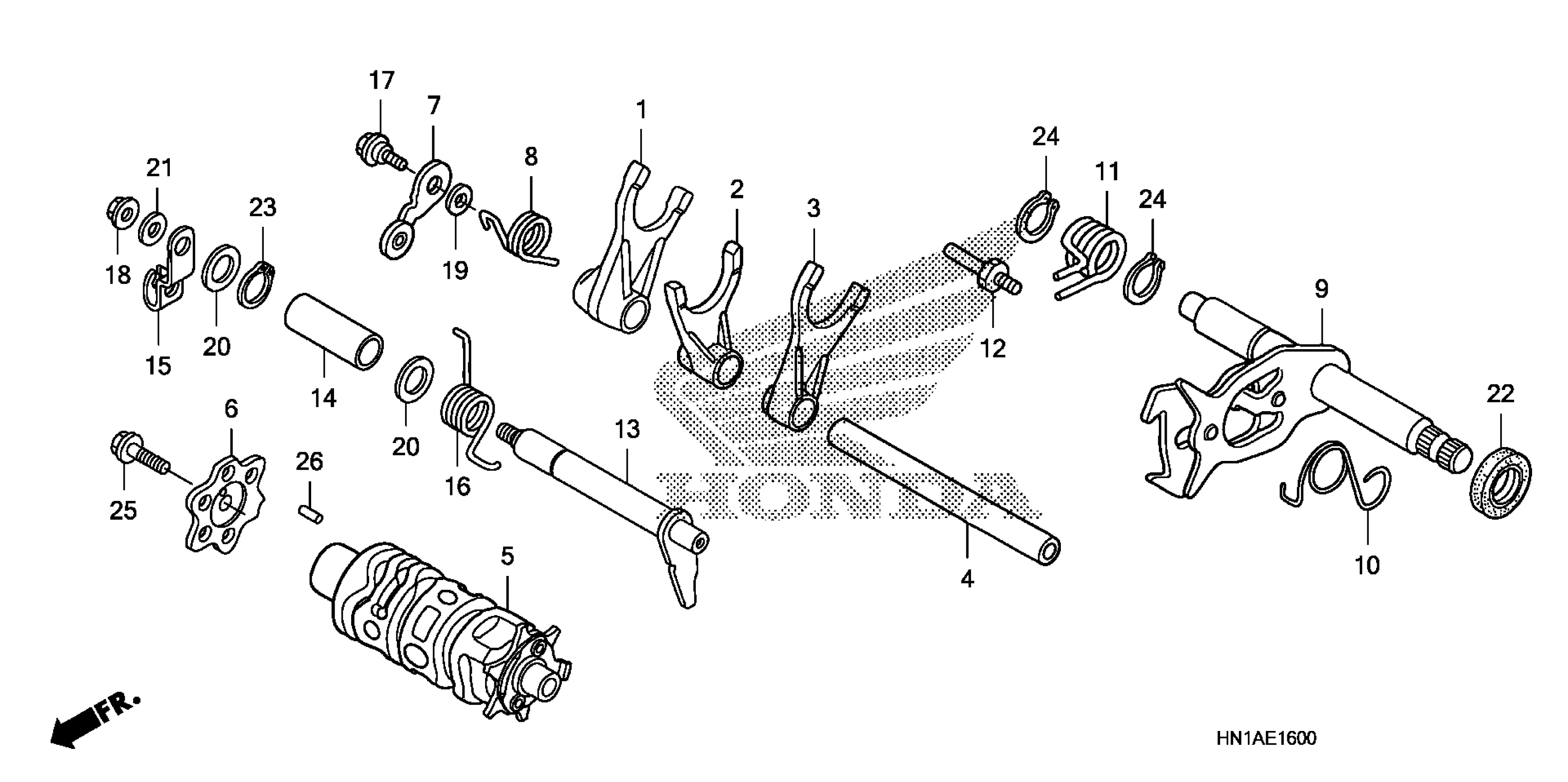

Honda TRX400XAC (13) TRX400X, USA, VIN# 1HFTE230-D4400001 TO 1HFTE230-D4499999 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HN1-A40

$56.99

2

FORK, CENTER GEARSHIFT

24221-HN1-A40

$56.99

3

FORK, L. GEARSHIFT

24231-HN1-A40

$56.99

4

SHAFT, GEARSHIFT FORK GUIDE

24241-KCZ-000

$25.18

5

DRUM, GEARSHIFT

24300-HN1-A40

$108.38

6

CAM, GEARSHIFT

24411-HN1-A40

$13.50

7

STOPPER, GEARSHIFT DRUM

24430-MT3-000

$18.66

8

SPRING, SHIFT DRUM STOPPER

24435-HN1-000

$3.94

9

SPINDLE, GEARSHIFT

24610-KCY-671

$133.18

10

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.56

11

SPRING, GEARSHIFT RETURN

24651-HN1-000

$6.26

12

PIN, SHIFT RETURN SPRING

24652-028-000

$8.99

13

SHAFT, REVERSE STOPPER

24860-HN1-A40

$48.26

14

COLLAR, REVERSE STOPPER

24861-HN1-A40

$6.44

15

LEVER, REVERSE STOPPER

24865-HN1-A70

$4.84

16

SPRING, REVERSE STOPPER

24867-HN1-A40

$3.38

17

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

18

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.89

19

WASHER, DRUM STOPPER

90417-360-000

Unavailable

20

WASHER, THRUST (12MM)

90452-166-600

$2.21

21

WASHER, CRANK ARM

90545-044-000

$1.69

22

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.12

22

OIL SEAL (14X28X7) (ARAI) This part replaces 91202-956-003.

91202-965-003

$6.12

22

OIL SEAL (14X28X7) (ARAI) This part replaces 91202-965-004.

91202-965-003

$6.12

23

CIRCLIP, OUTER (12MM)

94510-12000

$1.87

24

CIRCLIP, OUTER (14MM)

94510-14000

Unavailable

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

26

ROLLER (3X9.8)

96220-30098

$0.76
