Description

Price

1

COVER, L. CRANKCASE

11340-HN1-A70

$199.84

2

GUIDE, DRIVE CHAIN

11352-HN1-A40

$16.88

3

COVER, DRIVE SPROCKET

11360-HN1-A40

$29.05

4

COVER, STARTER

11370-HN1-A70

$47.18

5

GASKET, STARTER COVER | Use up to Engine SN 8309208 This part replaces 11377-HN1-000.

11377-HN1-010

$3.17

5

GASKET, STARTER COVER

11377-HN1-010

$3.17

6

GASKET, L. COVER | Use up to Engine SN 8309208 This part replaces 11395-KCY-671.

11395-KCY-673

$20.26

6

GASKET, L. COVER | Use up to Engine SN 8309208 This part replaces 11395-KCY-672.

11395-KCY-673

$20.26

6

GASKET, L. COVER | Use from Engine SN 8309209

11395-HN1-A71

$17.63

7

CLIP, PULSER WIRE

32925-958-000

$2.92

8

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

9

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

10

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

11

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

12

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

13

BOLT, FLANGE (6X60) (NSHF)

90004-GHB-750

$4.06

14

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

15

CAP (14MM)

90084-MN8-010

$12.82

16

CAP (30MM)

90087-HB5-000

$16.69

17

CLIP (4X50)

90601-KJ9-000

$3.08

18

O-RING (13.8X2.5)

91303-377-000

$3.42

19

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

PIN, DOWEL (8X14)

94301-08140

$2.25

22

PIN, DOWEL (10X20)

94301-10200

$2.35

23

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

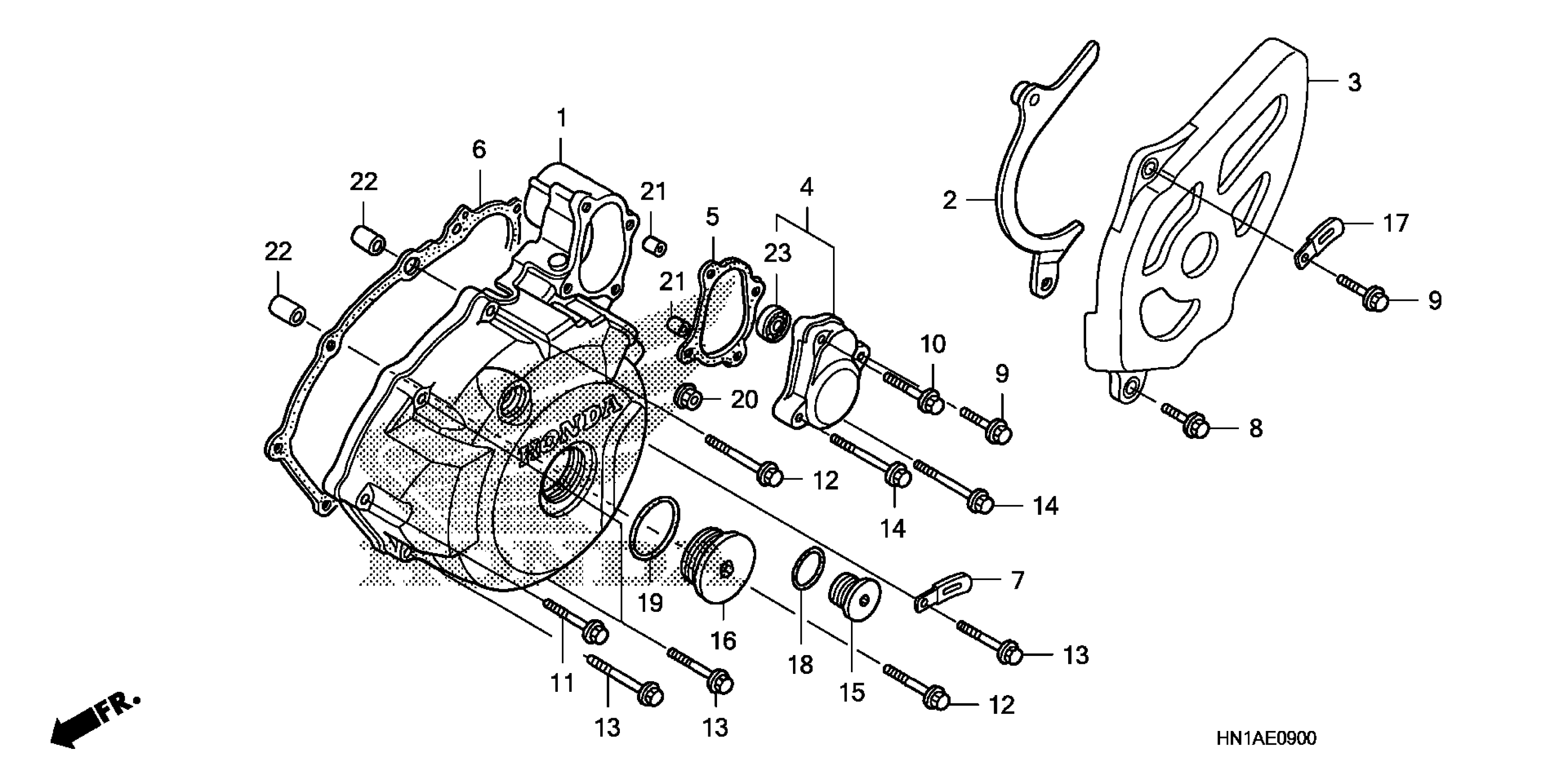

Honda TRX400XAC (13) TRX400X, USA, VIN# 1HFTE230-D4400001 TO 1HFTE230-D4499999 LEFT CRANKCASE COVER Diagram
