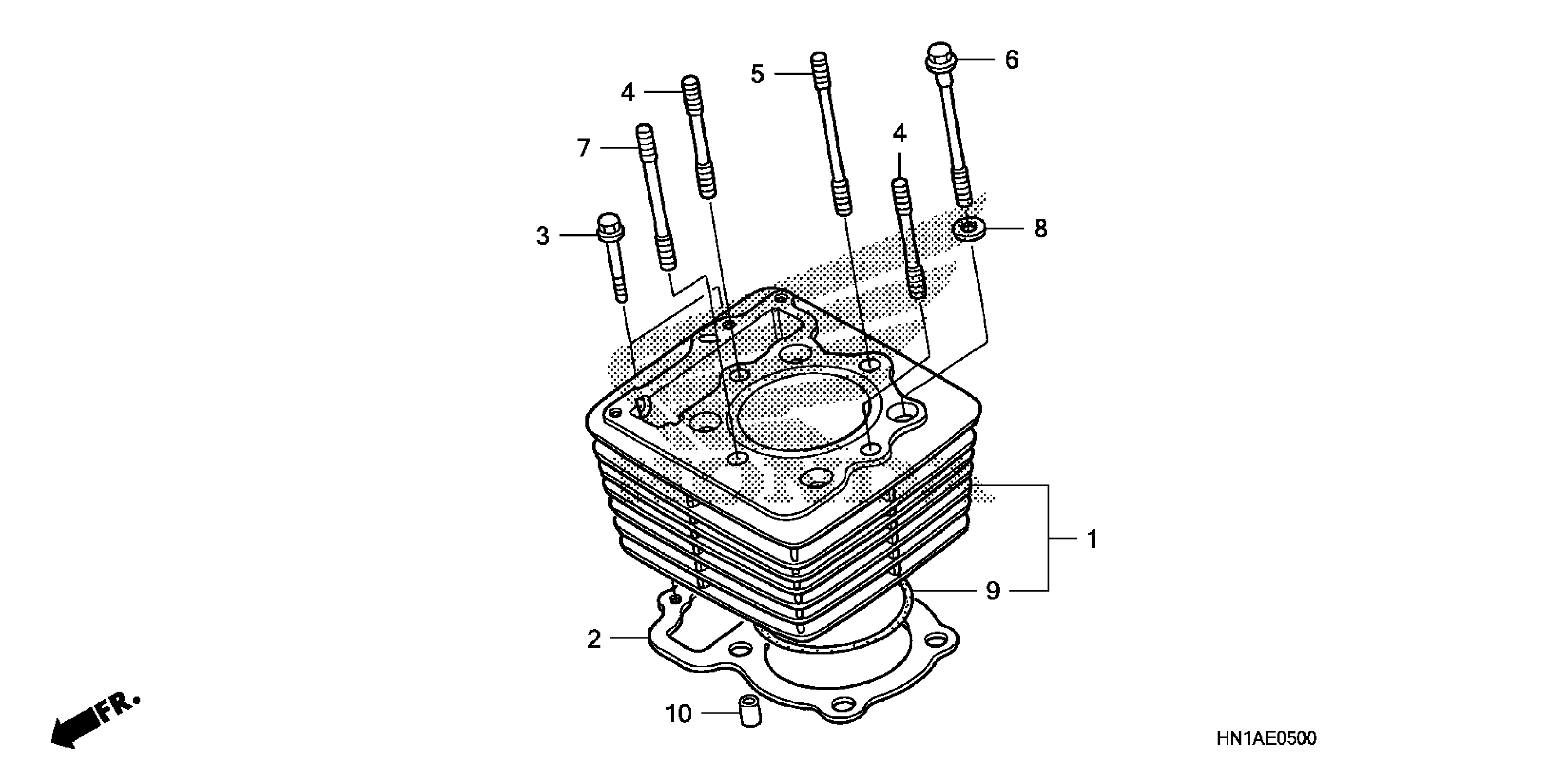

Honda TRX400XAC (13) TRX400X, USA, VIN# 1HFTE230-D4400001 TO 1HFTE230-D4499999 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-HN1-A70

$476.21

2

GASKET, CYLINDER | Use up to Engine SN 8309208 This part replaces 12191-KCY-671.

12191-KCY-673

$12.33

2

GASKET, CYLINDER | Use from Engine SN 8309209

12191-HN1-A71

$11.06

3

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

4

BOLT, STUD (10X60)

90081-KCY-670

$10.26

5

BOLT, STUD (10X92)

90083-KG0-981

$9.79

6

BOLT, FLANGE (10X100)

90085-KCY-670

$15.47

7

BOLT, STUD (10X73)

90085-KG0-981

$9.07

8

WASHER (10MM) This part replaces 90410-KE5-000.

90410-KR0-000

$2.67

8

WASHER (10MM) This part replaces 90410-KF0-000.

90410-KR0-000

$2.67

8

WASHER (10MM)

90410-KR0-000

$2.67

9

O-RING, CYLINDER (88X2)

91302-356-000

$9.63

10

PIN, DOWEL (12X20)

94301-12200

$2.29
