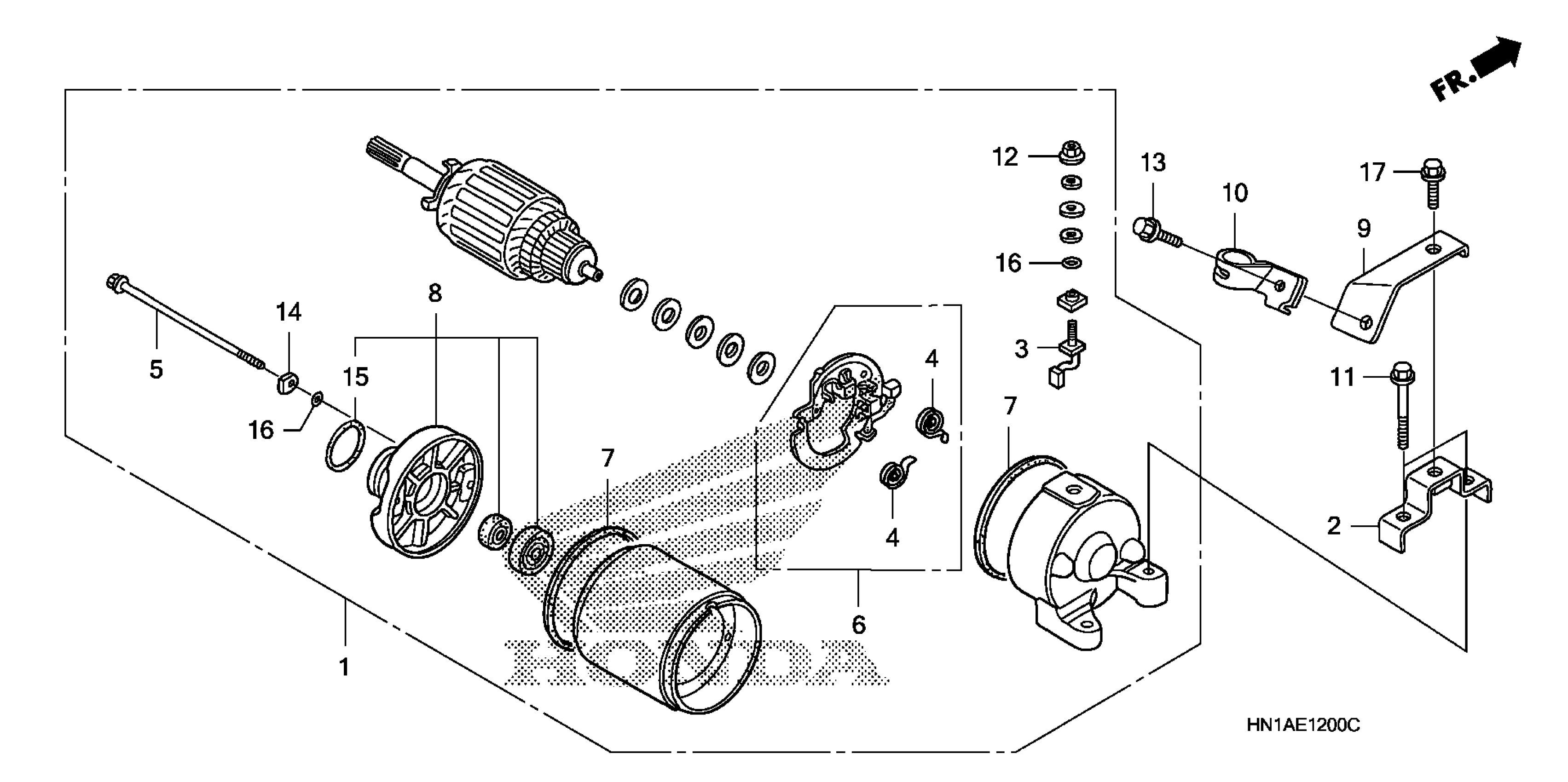

Honda TRX400XA (12) TRX400X, USA, VIN# 1HFTE230-C4300001 TO 1HFTE230-C4399999 STARTER MOTOR Diagram

STARTER MOTOR ASSY.

31200-HN1-A41

$401.14

STAY, STARTER MOTOR

31201-HN1-A40

$4.10

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MN4-008

$5.29

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

RING

31207-KS5-901

$2.90

BRACKET, FR.

31210-HC4-003

$61.20

STAY, CLAMP

43314-HN1-A40

$9.17

CLAMP, PARKING BRAKE

43459-HN1-A40

$1.13

BOLT, FLANGE (6X28)

90003-MM9-000

$2.97

NUT-WASHER (6MM)

90071-MB0-000

$1.88

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.17

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
