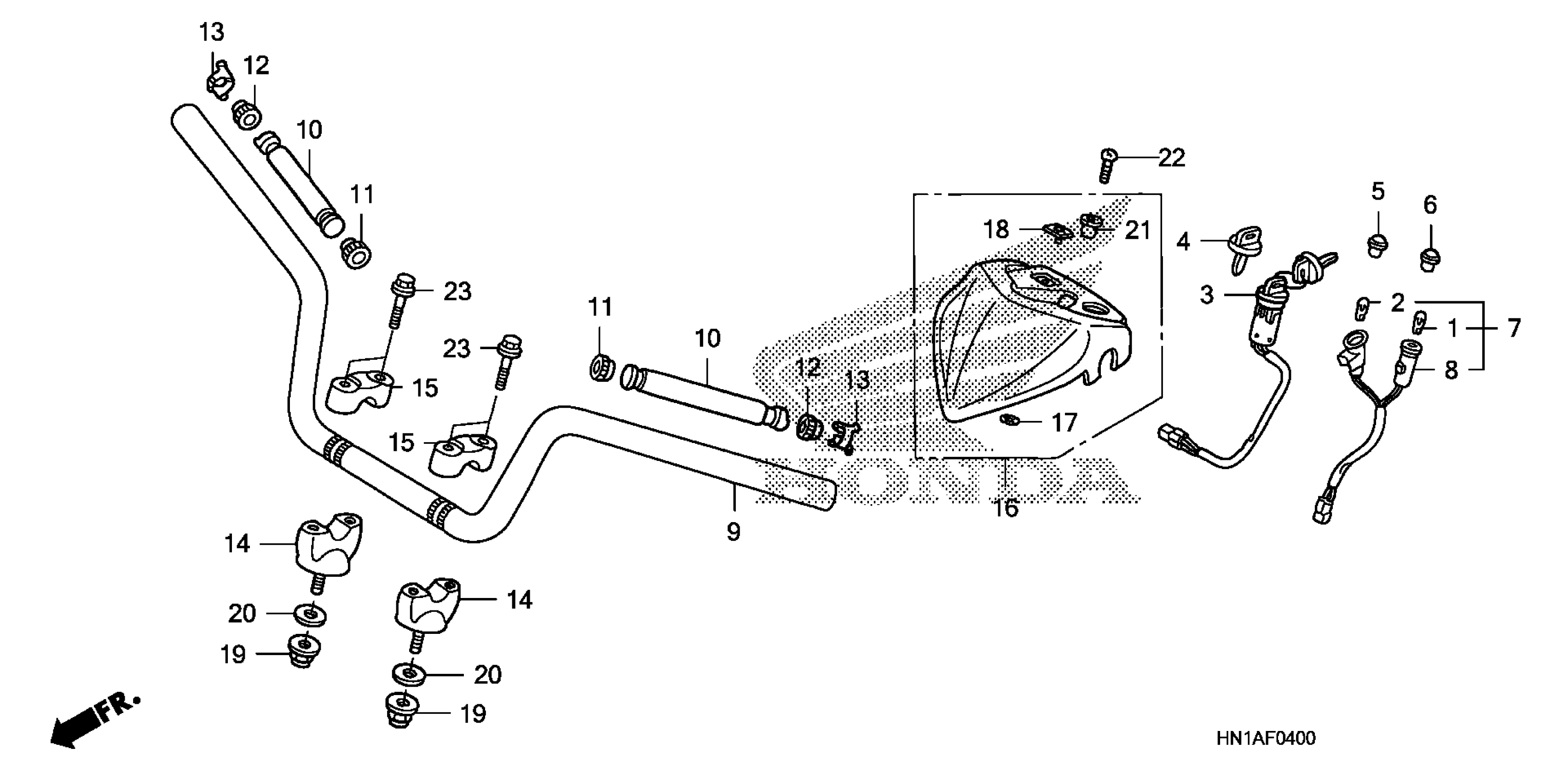

Honda TRX400XA (12) TRX400X, USA, VIN# 1HFTE230-C4300001 TO 1HFTE230-C4399999 HANDLEBAR Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

3

SWITCH ASSY., IGNITION

35100-HN1-A41

$41.04

4

KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$9.59

4

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

5

LENS, NEUTRAL PILOT (GREEN)

37561-HF1-670

$10.74

6

LENS, REVERSE INDICATOR (ORANGE)

37604-HN1-A70

$7.74

7

INDICATOR ASSY.

37570-HN1-A41

$19.80

8

WIRE

37572-HN1-A41

$16.03

9

HANDLEBAR *NH1* (BLACK) | Chaos black metallic-r NHA79MR;

53100-HN1-A70ZA

$216.79

10

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

11

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.92

12

RUBBER B, HANDLE WEIGHT

53107-KM9-000

$3.90

13

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

14

HOLDER, HANDLE (LOWER)

53130-HA0-680

$21.17

15

HOLDER, HANDLE (UPPER)

53131-HB6-000

$21.17

16

COVER ASSY., HANDLE *NHA79MR* (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR;

53204-HN1-A40ZB

$13.85

17

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

18

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$7.66

18

EMBLEM, PRODUCT (UEHARA) This part replaces 86150-HN8-003.

86150-HN8-004

$7.66

19

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

20

WASHER (10.3MM)

90521-427-770

$2.28

21

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

22

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

22

SCREW, PAN (6X10)

93500-06010-0A

$1.49

23

BOLT, FLANGE (8X35)

95701-08035-08

$1.49
