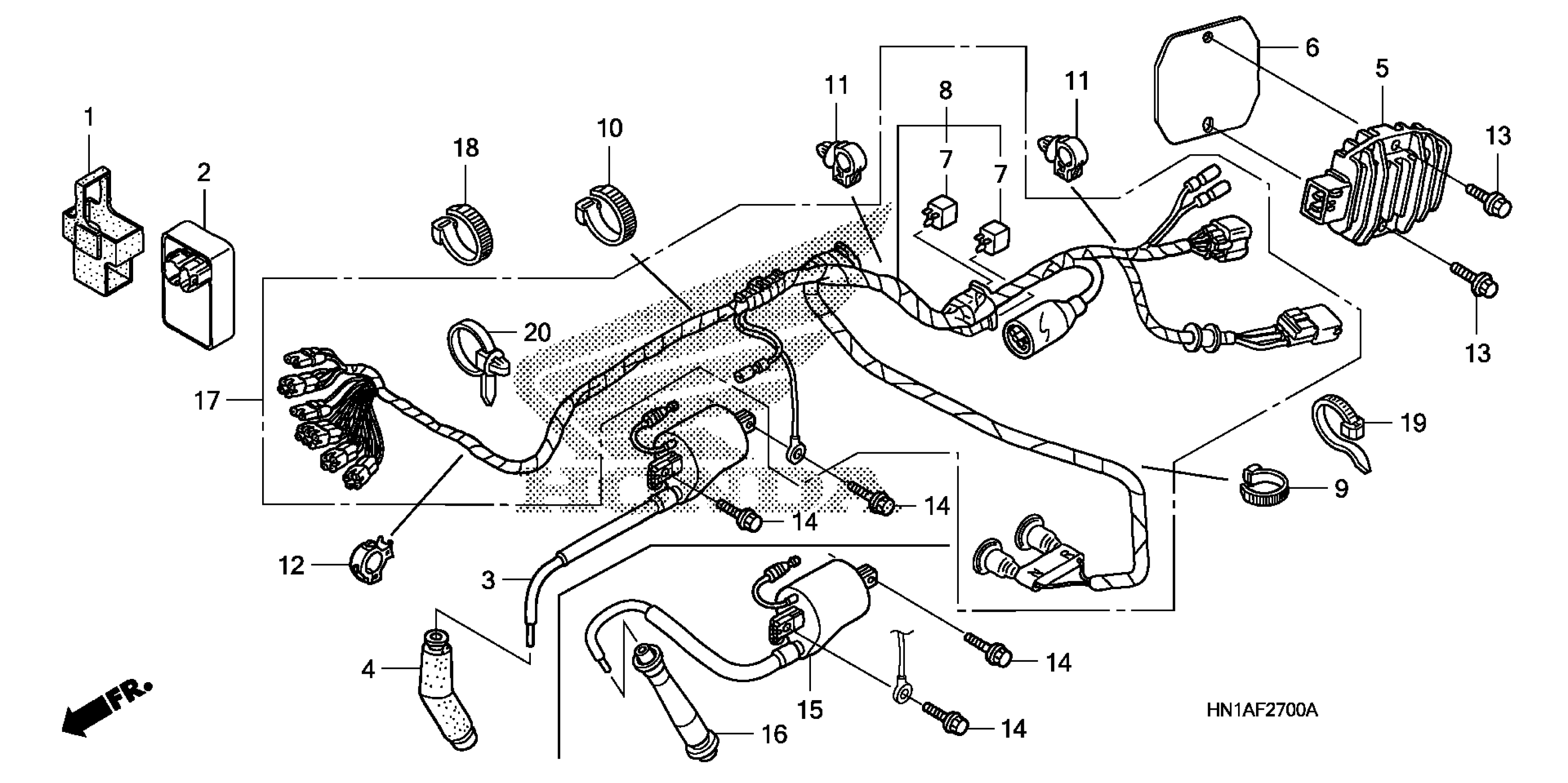

Honda TRX400X3A (09) TRX400X, USA, VIN# 1HFTE234-94900001 TO 1HFTE234-94999999 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KGH-900

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-HN1-A41

$70.27

RECTIFIER ASSY., REGULATOR

31600-HN1-A41

$46.05

PLATE, REGULATE RECTIFIER

31601-HN1-A40

$2.97

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

BAND B1, WIRE

32161-404-610

$2.23

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLAMP, HARNESS

90652-HC4-003

$5.95

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

COIL, IGNITION

30500-HN1-A71

$57.35

CAP ASSY., NOISE SUPPRESSOR

30700-MBV-003

$15.44

WIRE HARNESS

32100-HN1-A70

$264.61

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30
