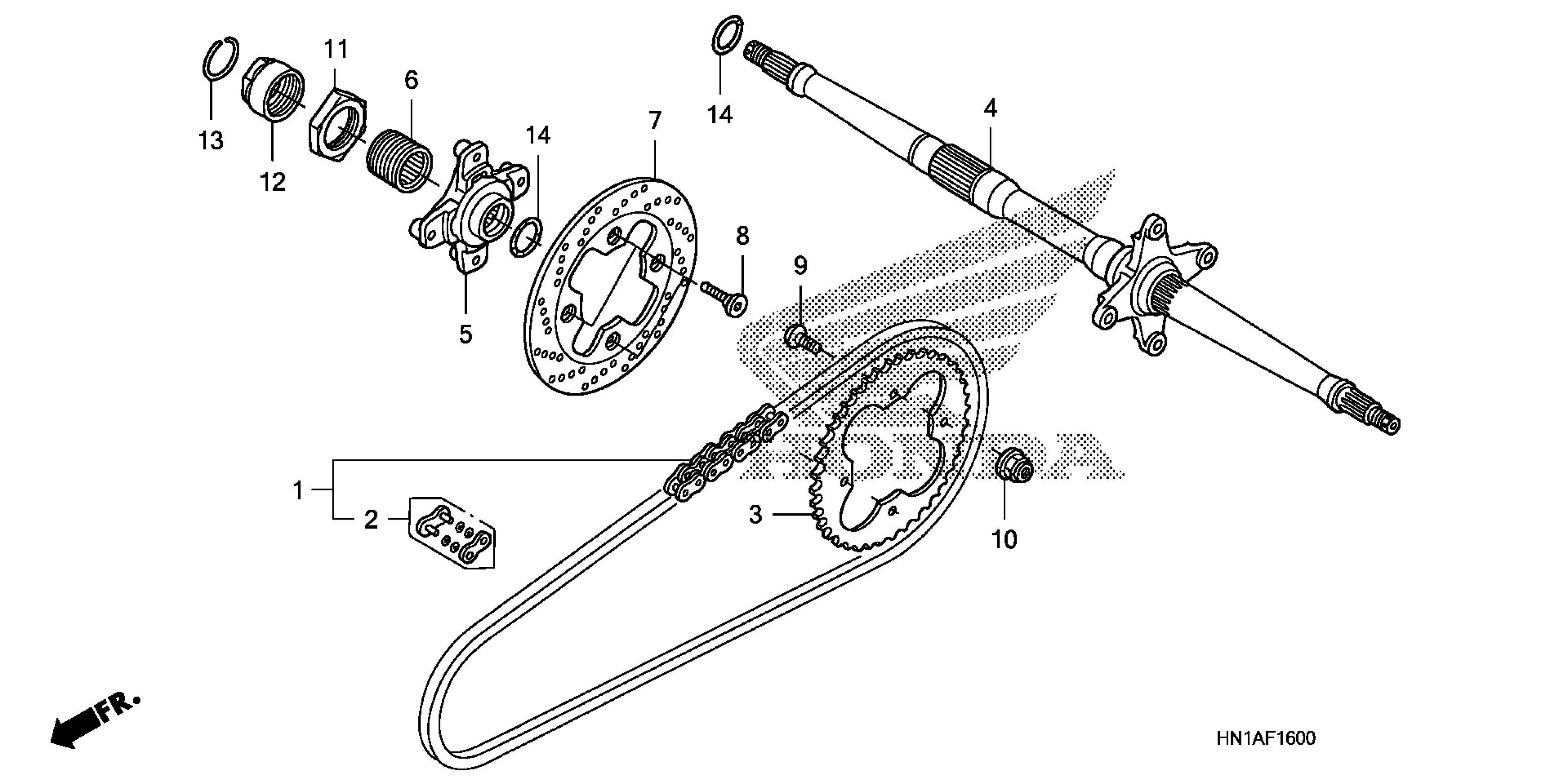

Honda TRX400X3A (09) TRX400X, USA, VIN# 1HFTE234-94900001 TO 1HFTE234-94999999 REAR WHEEL AXLE + DRIVE CHAIN Diagram

CHAIN SET, DRIVE (RK520 92-100L) (RK EXCEL) (STANDARD LINK 94L) (NA USE ALT:40540-KB7-306)

06405-HP1-P10

Unavailable

CHAIN SET, DRIVE (DID520 92-100L) (DAIDO) (STANDARD LINK 94L) (NOT AVAILABLE)

06405-KRG-P00

Unavailable

MASTER LINK SET (RK EXCEL)

40535-KEA-005

$8.16

MASTER LINK (DAIDO)

40545-KPM-305

$9.33

SPROCKET, FINAL DRIVEN (39T)

41201-HN1-A40

$109.13

AXLE, RR.

42310-HN1-A40

$419.51

FLANGE, BRAKE DISK

43120-HN1-A20

$229.59

BOLT, RR. AXLE

43127-HA2-000

$38.00

DISK, RR. BRAKE

43251-HN1-003

$119.43

BOLT, DISK (8X22)

90105-MK5-010

$4.94

BOLT, DRIVEN SPROCKET (10MM)

90114-HM3-A60

$4.45

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, RR. AXLE SPECIAL

90307-HA2-000

$23.04

NUT B, RR. AXLE

90308-HB9-000

$13.40

CLIP (OUTER) (37MM)

90652-HA2-000

$3.35

O-RING (39.7X1.3)

91351-HA5-003

$3.67
