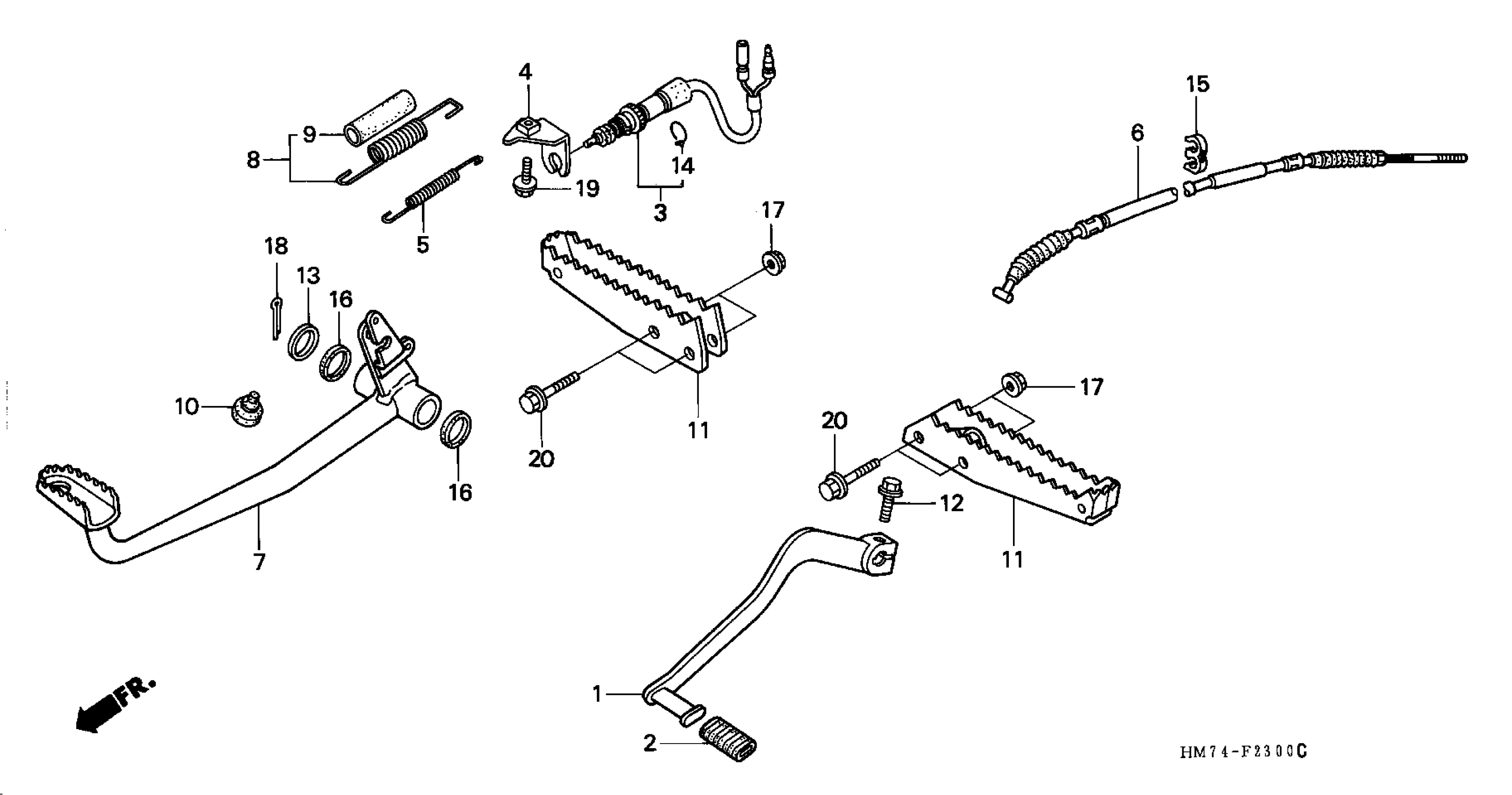

Honda TRX400FWAN (97) FOURTRAX FOREMAN, USA, VIN# 478TE203-VA200001 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT This part replaces 24700-HM7-000.

24700-HM7-A00

$64.90

1

PEDAL, GEARSHIFT

24700-HM7-A00

$64.90

2

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

3

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-HM7-690

Unavailable

4

BRACKET, STOP SWITCH (NOT AVAILABLE)

35351-HM7-690

Unavailable

5

SPRING, STOP SWITCH

35357-KE1-000

$6.16

6

CABLE, FOOT BRAKE

43470-HM7-000

$48.33

7

PEDAL, BRAKE

46500-HM7-000

Unavailable

8

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

9

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$2.13

10

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

11

STEP This part replaces 50610-HM7-000.

50610-HM8-000

$17.17

11

STEP

50610-HM8-000

$17.17

12

BOLT, FLANGE (6X20)

90118-968-000

$4.24

13

WASHER (17.5MM)

90512-303-000

$1.77

14

CLIP, SWITCH COVER

90601-KAF-003

$2.67

15

CLIP, HIGH TENSION CORD

90658-ZA0-930

$2.48

16

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

17

NUT, FLANGE (8MM)

94050-08000

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

18

PIN, SPLIT (3.0X45)

94201-30450

$1.49

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
