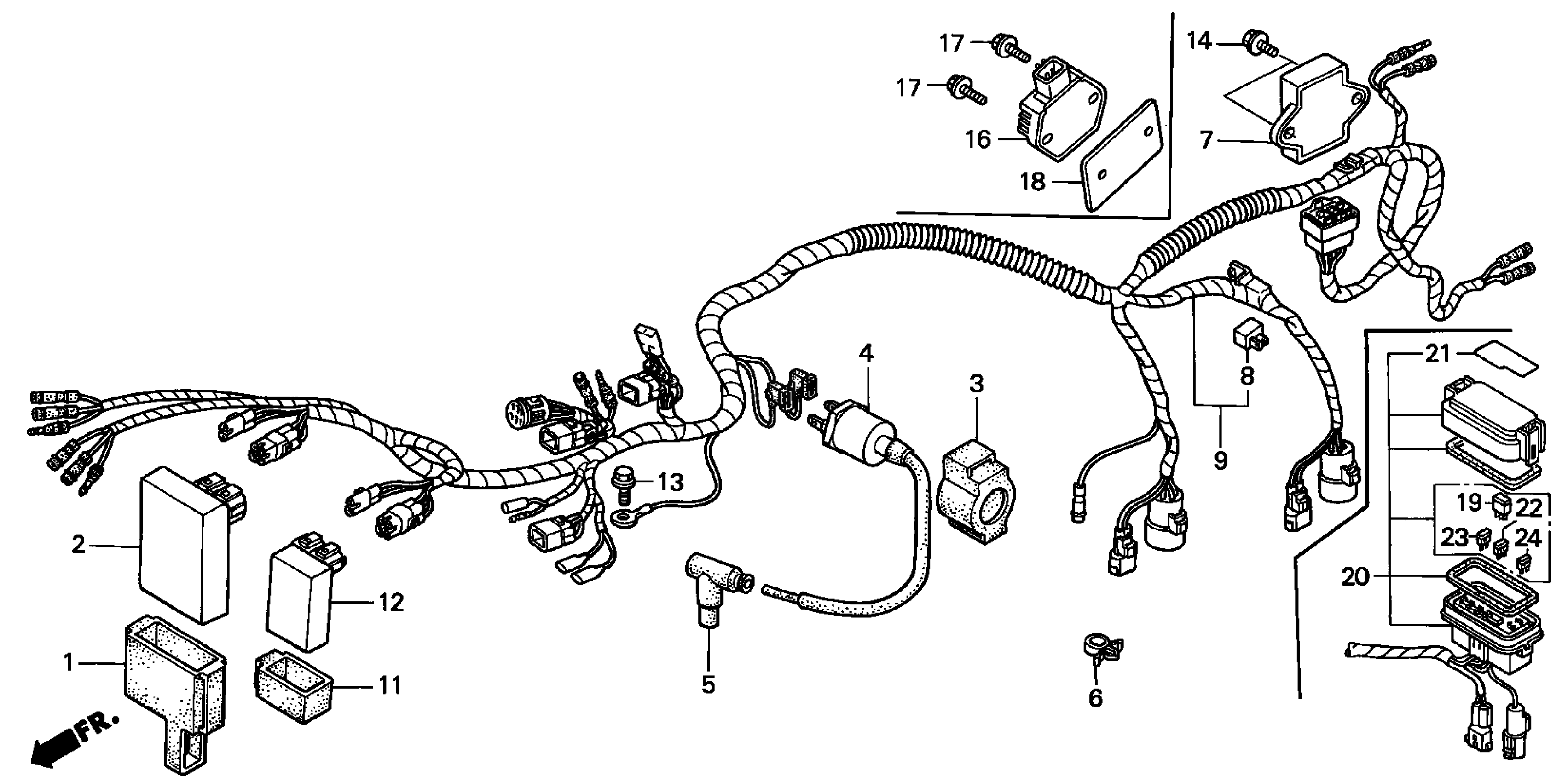

Honda TRX400FWAN (96) FOURTRAX FOREMAN, USA, VIN# 478TE203-TA100001 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$10.00

MODULE, IGNITION CONTROL (CDI)(DC) This part replaces 30410-HM7-010.

30410-HM7-003

$119.45

MODULE, IGNITION CONTROL (CDI)(DC)

30410-HM7-003

$119.45

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

COIL, IGNITION This part replaces 30510-HM7-003.

30510-KJ2-405

$86.48

COIL, IGNITION

30510-KJ2-405

$86.48

CAP ASSY. This part replaces 30700-KY4-900.

30700-KY4-901

$29.46

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.91

RECTIFIER ASSY., REGULATOR This part replaces 31600-HM7-003.

31600-HN5-671

$103.62

RECTIFIER ASSY., REGULATOR

31600-HN5-671

$103.62

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-HM7-691

Unavailable

CUSHION, FAN CONTROL UNIT (TATEISHI)

38401-HC4-004

Unavailable

CONTROL UNIT, FAN

38710-HM7-004

$230.73

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
