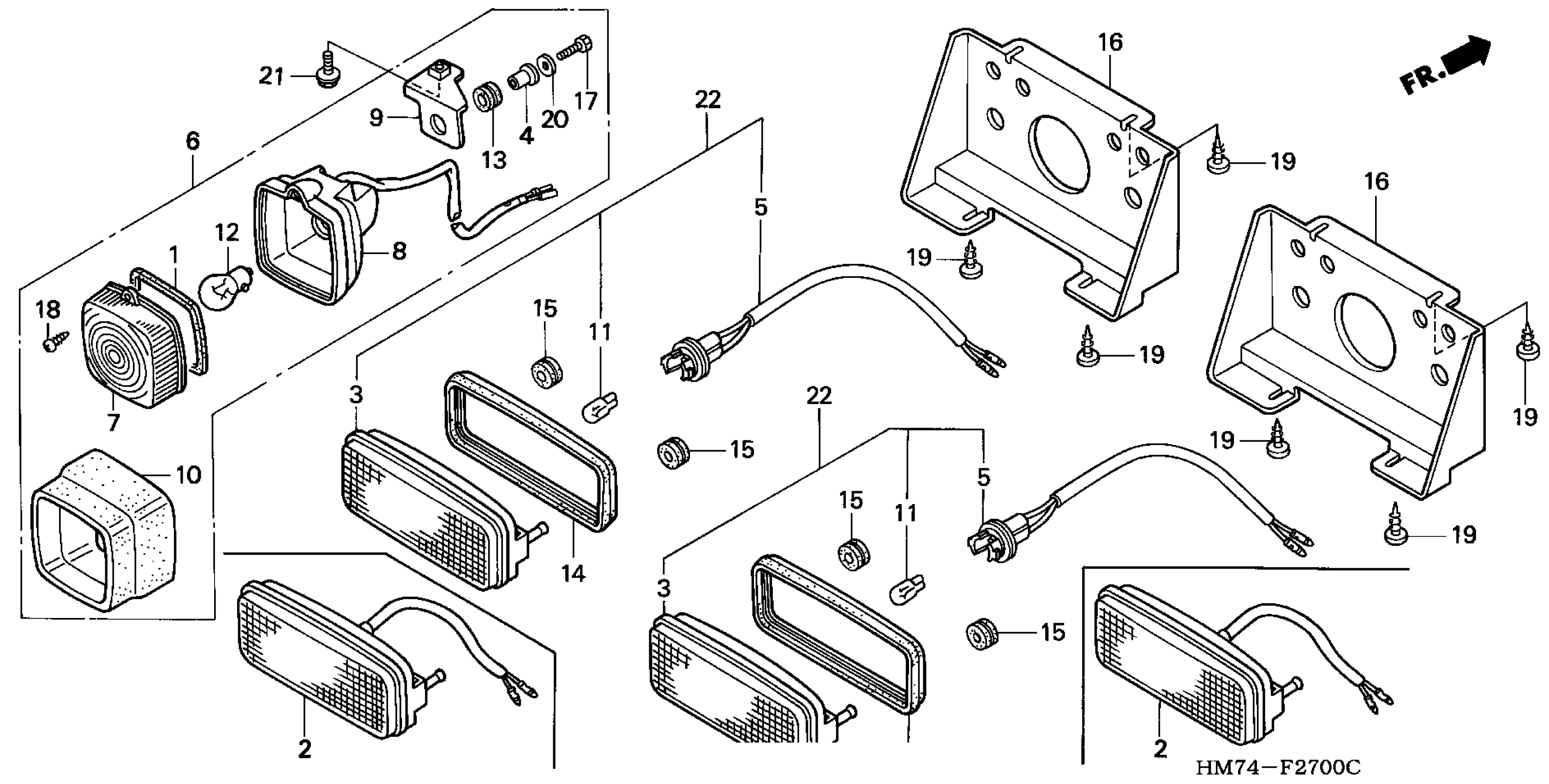

Honda TRX400FWAN (96) FOURTRAX FOREMAN, USA, VIN# 478TE203-TA100001 TAILLIGHT Diagram

GASKET, TURN SIGNAL LENS

33407-166-611

$5.78

LENS, TAILLIGHT

33710-HB3-771

$28.21

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$4.59

SOCKET

33720-HM7-000

Unavailable

LIGHT ASSY., STOP (SOURCE: VINTAGE PARTS INC.)

33810-HM7-690

$80.38

LENS, STOP LIGHT

33812-HF1-830

$13.57

BASE, STOP LIGHT (SOURCE: VINTAGE PARTS INC.)

33813-HM7-690

Unavailable

STAY, STOP LIGHT (SOURCE: VINTAGE PARTS INC.)

33815-HM7-690

Unavailable

RUBBER, STOP LIGHT WATERPROOF (NOT AVAILABLE)

33850-HF1-831

Unavailable

BULB (12V/5W) (STANLEY)

34351-657-921

$3.41

BULB, TURN SIGNAL (12V 18.4W)

34905-KN8-003

Unavailable

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

RUBBER, TAILLIGHT

80215-HC4-000

$9.76

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$3.12

COVER, TAILLIGHT

80230-HM7-000

Unavailable

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

SCREW, TAPPING (4X16) (NOT AVAILABLE)

93901-14480

Unavailable

SCREW, TAPPING (5X10)

93903-25110

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
