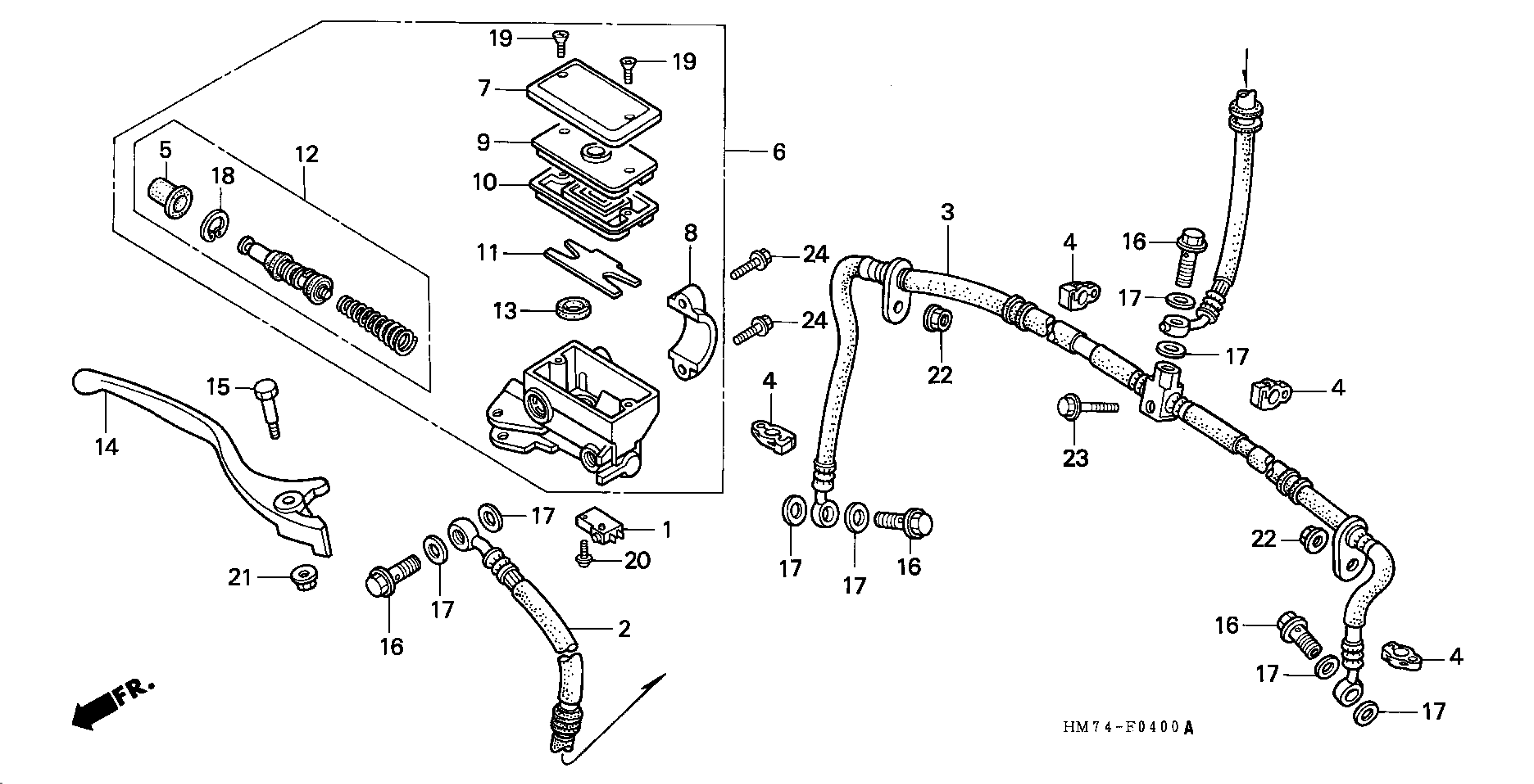

Honda TRX400FWAN (96) FOURTRAX FOREMAN, USA, VIN# 478TE203-TA100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

2

HOSE A, FR. BRAKE (NOT AVAILABLE)

45126-HM7-003

Unavailable

3

HOSE B, FR. BRAKE

45127-HM7-003

Unavailable

4

CLIP, BRAKE HOSE

45401-HM5-850

$1.93

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR.

45510-HC5-305

$203.01

7

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

9

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC5-971

$6.52

12

MASTER CYLINDER SET

45530-HC5-006

$56.98

13

SEPARATOR

46666-961-013

$8.68

14

LEVER, R. HANDLE

53175-HA8-680

$29.11

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

16

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

CIRCLIP

90651-MA5-671

$2.66

19

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

19

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

20

SCREW-WASHER (4X14)

93893-04014-07

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49

23

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

24

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
