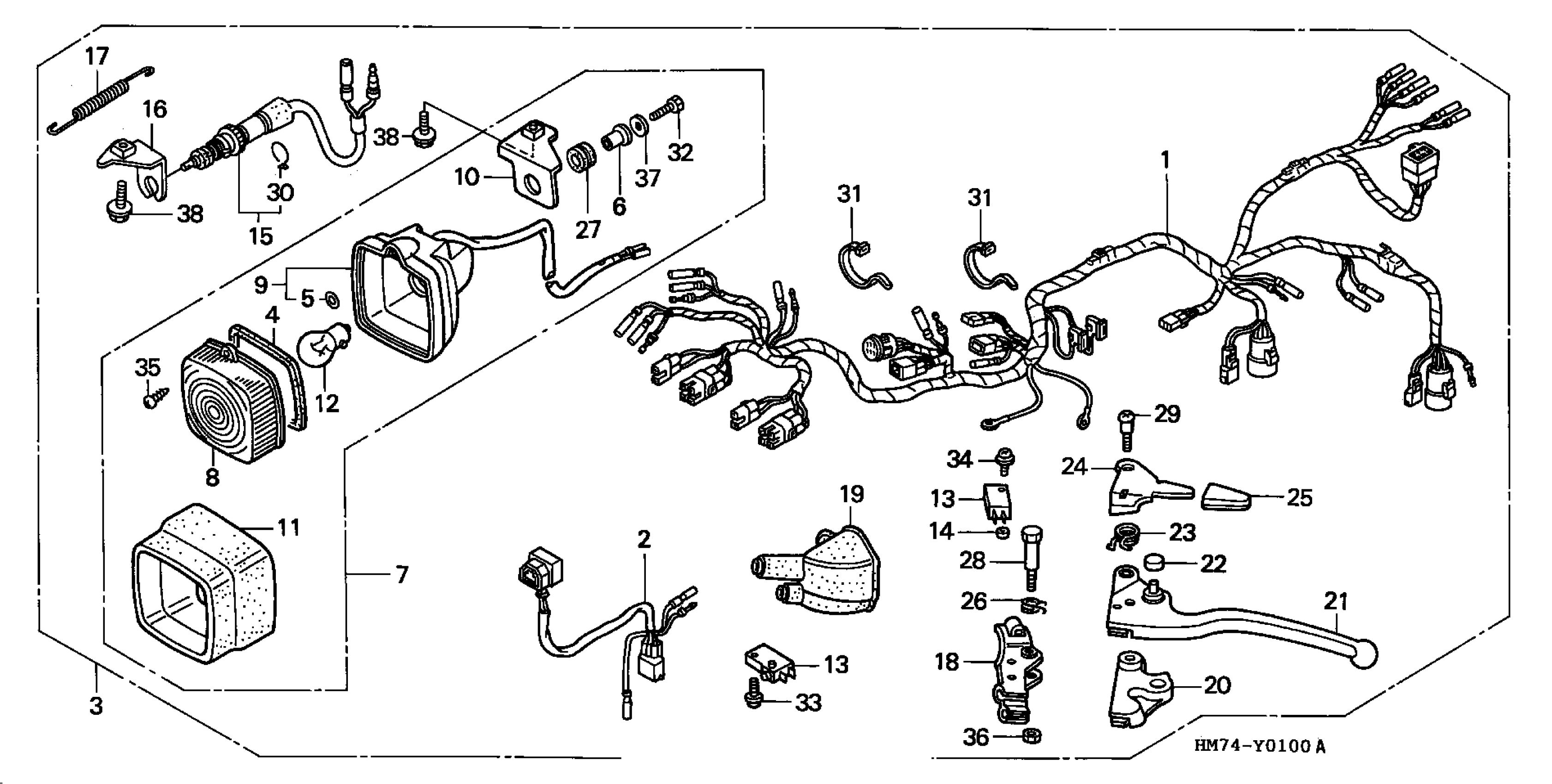

Honda TRX400FWAM (98) FOURTRAX FOREMAN, USA, VIN# TE20E-8300001 TO TE20E- 8399999 STOP LIGHT KIT-- MAINE STATE 98 Diagram

#

Description
Price

1

WIRE HARNESS (NOT AVAILABLE)

32100-HM7-892

Unavailable

2

SUB-WIRE, HEADLIGHT (NOT AVAILABLE)

32500-HM7-691

Unavailable

3

LIGHT SET, STOP (NOT AVAILABLE)

33080-HM7-M00

Unavailable

4

GASKET, TURN SIGNAL LENS

33407-166-611

$5.88

5

GASKET, SEAL

33408-166-611

$1.40

6

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$3.98

7

LIGHT ASSY., STOP (SOURCE: VINTAGE PARTS INC.)

33810-HM7-690

Unavailable

8

LENS, STOP LIGHT

33812-HF1-830

$12.54

9

BASE, STOP LIGHT (SOURCE: VINTAGE PARTS INC.)

33813-HM7-690

Unavailable

10

STAY, STOP LIGHT (SOURCE: VINTAGE PARTS INC.)

33815-HM7-690

Unavailable

11

RUBBER, STOP LIGHT WATERPROOF (NOT AVAILABLE)

33850-HF1-831

Unavailable

12

BULB, TURN SIGNAL (12V 18.4W)

34905-KN8-003

Unavailable

13

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

13

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

14

COLLAR, STOP SWITCH

35345-HF1-830

$5.74

15

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-HM7-690

Unavailable

16

BRACKET, STOP SWITCH (NOT AVAILABLE)

35351-HM7-690

Unavailable

17

SPRING, STOP SWITCH

35357-KE1-000

$5.87

18

BRACKET, HANDLE LEVER

53172-HM7-000

$32.66

19

COVER, L. HANDLE (NOT AVAILABLE)

53177-HF1-830

Unavailable

20

ARM, REVERSE ASSISTANT

53179-HA6-000

$13.93

21

LEVER, RR. BRAKE

53180-HA8-770

$26.97

22

CAP, REVERSE PIN

53187-VM6-000

$3.71

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

24

LEVER, PARKING BRAKE LOCK

53192-HA8-771

$10.56

25

CAP, PARKING LEVER

53193-HA0-770

$5.87

26

SPRING, LEVER RETURN

53193-HF1-830

$5.99

27

RUBBER, RR. FENDER CUSHION

80101-283-000

$5.42

28

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$8.23

29

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

30

CLIP, SWITCH COVER

90601-KAF-003

$2.47

31

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

32

BOLT, HEX. (5X20)

92101-05020-0A

$1.07

33

SCREW-WASHER (4X14)

93893-04014-07

$1.25

34

SCREW-WASHER (4X20)

93893-04020-07

$0.84

35

SCREW, TAPPING (4X16) (NOT AVAILABLE)

93901-14480

Unavailable

36

NUT, HEX. (6MM)

94001-06070-0S

$1.21

37

WASHER, PLAIN (5MM)

94101-05000

$0.91

38

BOLT, FLANGE (6X12)

95701-06012-00

$1.84
