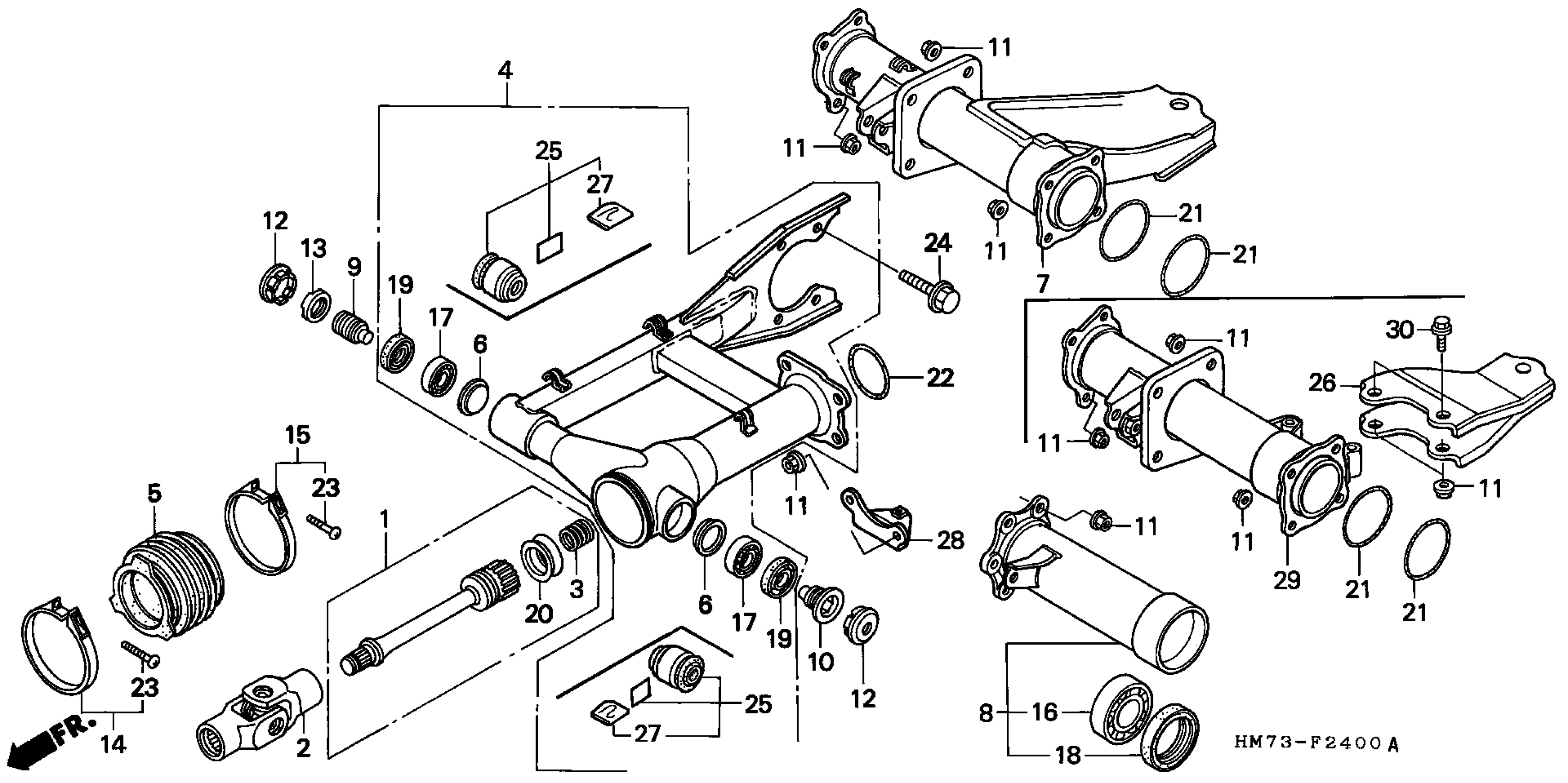

Honda TRX400FWA (99) FOURTRAX FOREMAN, USA, VIN# 478TE200-XA400001 SWINGARM Diagram

#

Description
Price

1

JOINT ASSY., YOKE

40200-HM7-610

$73.63

2

JOINT, YOKE This part replaces 40210-HM5-730.

40210-HN7-010

$60.66

2

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$60.66

2

JOINT, YOKE

40210-HN7-010

$60.66

3

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

4

SWINGARM ASSY., RR.

52100-HN0-A10

Unavailable

5

BOOT, JOINT

52101-HM7-000

$14.09

6

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

7

PIPE, R. HOUSING

52210-HN0-A00

Unavailable

8

PIPE ASSY., L. HOUSING

52300-HM7-A00

Unavailable

9

BOLT A, PIVOT

90121-HM5-930

$9.41

10

BOLT B, PIVOT

90122-HM5-930

$10.85

11

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

12

CAP, LOCK NUT

90312-HM5-670

$11.71

13

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

14

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.78

15

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90250

$5.46

16

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$43.95

17

BEARING, ANGULAR (7203)

91066-HC4-004

$35.11

18

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$20.36

19

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.71

20

SEAL A, RUBBER

91302-HM7-003

$7.90

21

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

22

O-RING (66MM)

91351-881-000

$4.61

24

BOLT, FLANGE (10X20)

95701-10020-00

$2.23
