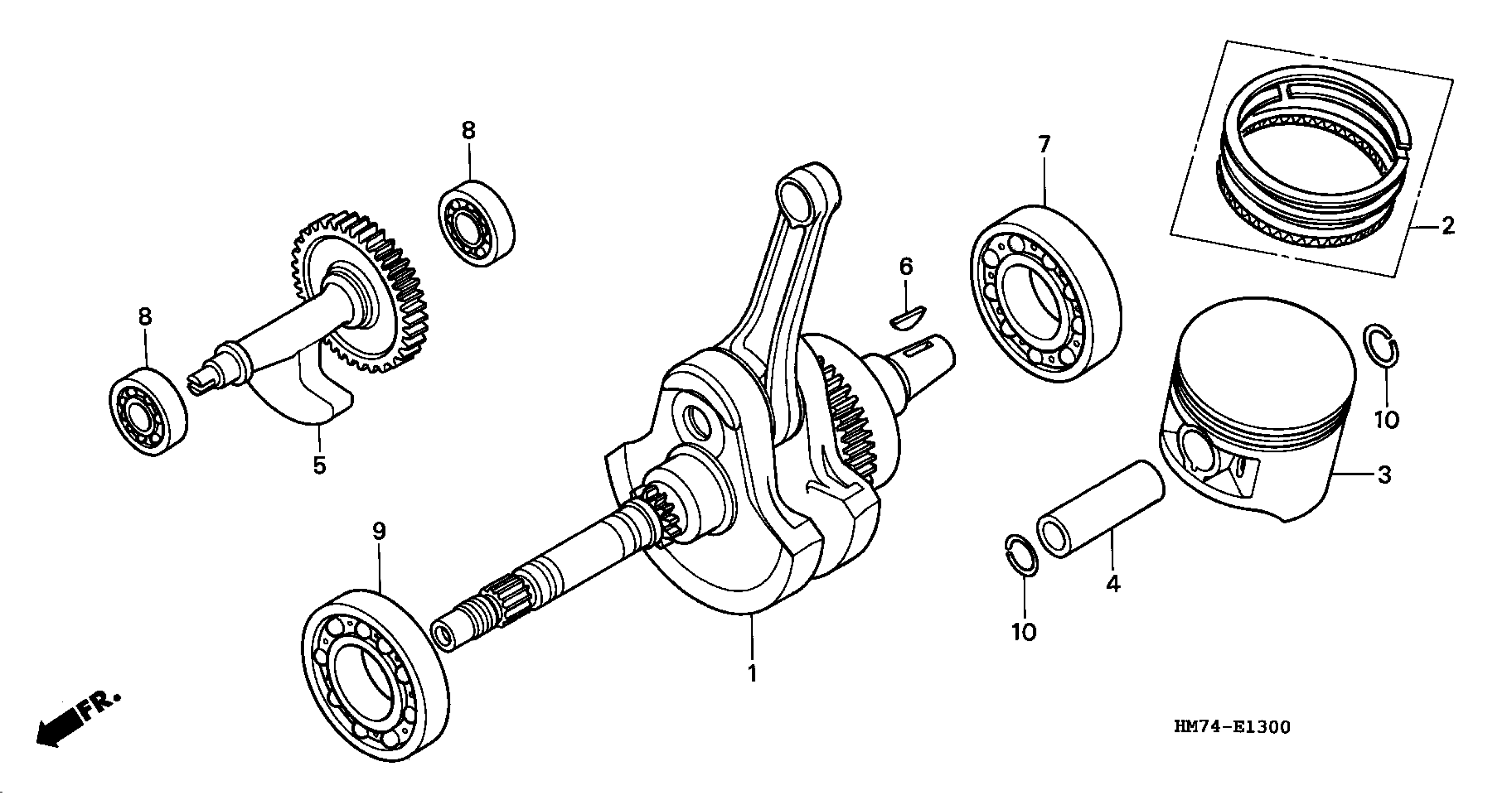

Honda TRX400FWA (98) FOURTRAX FOREMAN, USA, VIN# 478TE200-WA300001 PISTON + RINGS + CRANKSHAFT + Diagram

CRANKSHAFT This part replaces 13000-HM7-000.

13000-HN0-670

Unavailable

CRANKSHAFT

13000-HN0-670

Unavailable

RING SET, PISTON (STD)

13011-HM7-003

Unavailable

RING SET, PISTON (STD)

13011-HM7-004

Unavailable

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-HM7-003

Unavailable

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-HM7-004

Unavailable

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-HM7-003

$47.64

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-HM7-004

Unavailable

RING SET, PISTON (OVER SIZE) (0.75) | (Optional).

13041-HM7-003

Unavailable

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13041-HM7-004

Unavailable

RING SET, PISTON (1.00) | (Optional).

13051-HM7-003

Unavailable

RING SET, PISTON (1.00) | (Optional).

13051-HM7-004

Unavailable

PISTON (STD)

13101-HM7-000

Unavailable

PISTON (0.25) | (Optional).

13102-HM7-000

$181.28

PISTON (0.50) | (Optional).

13103-HM7-000

$135.75

PISTON (0.75) | (Optional).

13104-HM7-000

Unavailable

PISTON (1.00) | (Optional).

13105-HM7-000

$125.51

PIN, PISTON

13111-HN0-A00

$21.21

PIN, PISTON This part replaces 13111-KL3-670.

13111-HN0-A00

$21.21

SHAFT, BALANCER

13420-HM7-000

$246.23

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$3.08

BEARING, RADIAL BALL

91001-KE5-018

Unavailable

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$26.81

BEARING, RADIAL BALL (40X76X17.5)

91010-HM7-004

$71.78

CLIP, PISTON PIN (19MM)

94601-19000

$1.49
