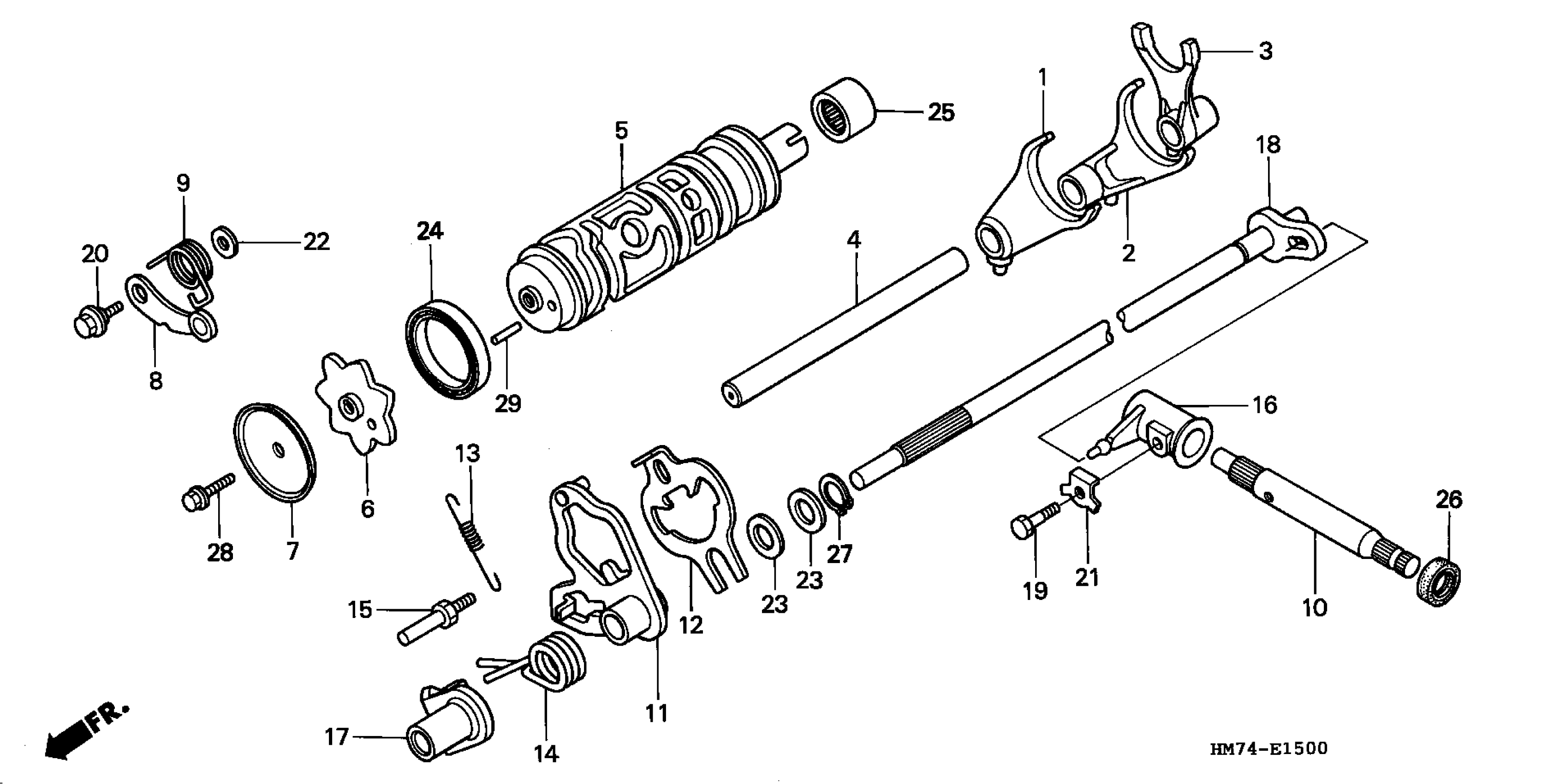

Honda TRX400FWA (97) FOURTRAX FOREMAN, USA, VIN# 478TE200-VA200001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-HM7-000

$86.29

2

FORK, CENTER GEARSHIFT

24212-HM7-000

$86.29

3

FORK, GEARSHIFT

24213-HM7-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HM7-000

Unavailable

5

DRUM, GEARSHIFT

24301-HM7-000

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-010.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-020.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM

24321-HB3-030

Unavailable

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HB3-000

$14.26

9

SPRING, SHIFT DRUM STOPPER

24435-HM7-000

$5.79

10

SPINDLE, GEARSHIFT

24611-HM7-000

$88.55

11

ARM, GEARSHIFT MASTER

24620-HM7-000

$24.05

12

PLATE, GEARSHIFT This part replaces 24631-HM7-000.

24631-HM7-010

$9.10

12

PLATE, GEARSHIFT

24631-HM7-010

$9.10

13

SPRING, SHIFT ARM

24641-HB3-004

$2.90

14

SPRING, GEARSHIFT RETURN

24651-HM7-000

Unavailable

15

PIN, RETURN SPRING

24652-KY4-900

$7.99

16

ARM A, GEARSHIFT

24661-HM7-000

Unavailable

17

ARM, SUB-GEARSHIFT SPINDLE This part replaces 24670-HM7-000.

24670-HM7-010

$17.16

17

ARM, SUB-GEARSHIFT SPINDLE

24670-HM7-010

$17.16

18

SPINDLE, SUB-GEARSHIFT This part replaces 24680-HM7-000.

24680-HN0-670

Unavailable

18

SPINDLE, SUB-GEARSHIFT This part replaces 24680-HM7-010.

24680-HN0-670

Unavailable

18

SPINDLE, SUB-GEARSHIFT

24680-HN0-670

Unavailable

19

BOLT, HEX. (8X18)

90009-HM7-000

Unavailable

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

21

WASHER, LOCK (8MM)

90406-422-000

$2.63

22

WASHER, DRUM STOPPER

90417-360-000

$1.74

23

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

24

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$59.77

25

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

26

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.78

26

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.78

26

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

27

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

28

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

29

ROLLER (4X13.8)

96220-40138

$1.49
