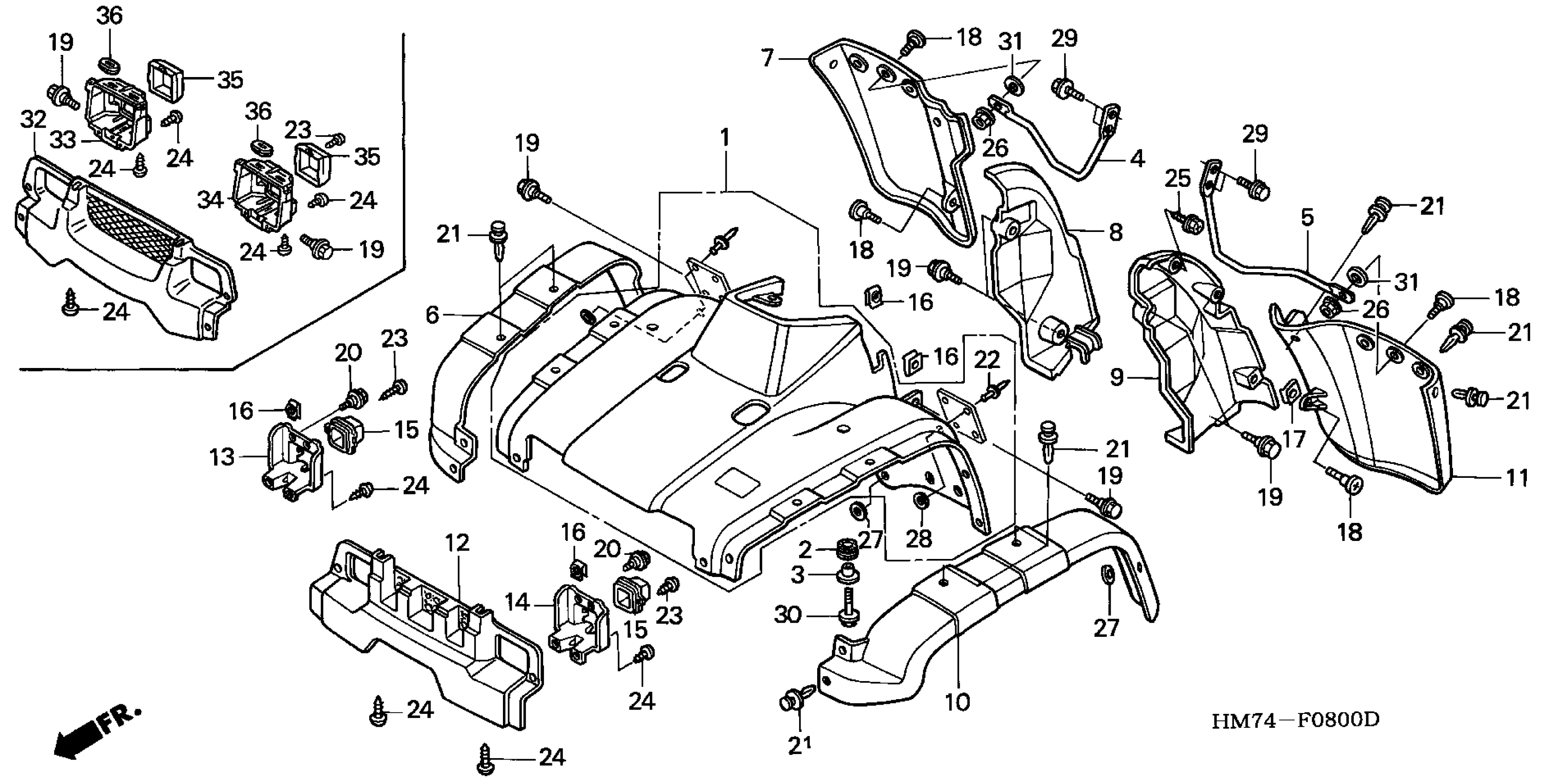

Honda TRX400FWA (96) FOURTRAX FOREMAN, USA, VIN# 478TE200-TA100001 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FR. *R109* (PASSION RED) (SOURCE: VINTAGE PARTS INC.) This part replaces 61100-HM7-700ZC.

61100-HM7-610ZC

Unavailable

1

FENDER, FR. *R109* (PASSION RED) (SOURCE: VINTAGE PARTS INC.)

61100-HM7-610ZC

Unavailable

1

FENDER, FR. *G152* (ADVENTURE GREEN) (SOURCE: VINTAGE PARTS INC.) This part replaces 61100-HM7-700ZA.

61100-HM7-610ZA

Unavailable

1

FENDER, FR. *G152* (ADVENTURE GREEN) (SOURCE: VINTAGE PARTS INC.)

61100-HM7-610ZA

Unavailable

2

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE)

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.01

4

STAY, R. FR. STEERING

61105-HM7-000

$58.60

5

STAY, L. FR. STEERING

61106-HM7-000

Unavailable

6

SPLASH GUARD, R. FR. SIDE *NH186R* (STEEL GRAY)

61861-HM7-000ZA

$18.62

7

SPLASH GUARD, R. FR. (LOWER) *NH186R* (STEEL GRAY)

61862-HM7-000ZA

$45.26

8

FENDER, R. (INNER) This part replaces 61863-HM7-000.

61863-HN0-670

$21.71

8

FENDER, R. (INNER) This part replaces 61863-HM7-A00.

61863-HN0-670

$21.71

8

FENDER, R. (INNER)

61863-HN0-670

$21.71

9

FENDER, L. (INNER) This part replaces 61864-HM7-000.

61864-HN0-670

$21.71

9

FENDER, L. (INNER) This part replaces 61864-HM7-A00.

61864-HN0-670

$21.71

9

FENDER, L. (INNER)

61864-HN0-670

$21.71

10

SPLASH GUARD, L. FR. SIDE *NH186R* (STEEL GRAY)

61866-HM7-000ZA

$26.00

11

SPLASH GUARD, L. FR. (LOWER) *NH186R* (STEEL GRAY)

61867-HM7-000ZA

Unavailable

12

GRILLE, FR. *NH186R* (STEEL GRAY) (SOURCE: VINTAGE PARTS INC.)

66300-HM7-000ZA

Unavailable

13

COVER, R. HEADLIGHT

66301-HM7-000

Unavailable

14

COVER, L. HEADLIGHT

66302-HM7-000

Unavailable

15

CAP, HEADLIGHT TAIL

66303-HM7-000

$3.13

16

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.09

17

NUT, FENDER SETTING

84601-HM7-000

Unavailable

18

SCREW, SPECIAL (6X8)

90102-HM7-000

$2.74

19

BOLT, FLANGE (6MM)

90111-162-000

$2.66

20

BOLT, FLANGE (6MM)

90111-197-890

$3.40

21

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

22

RIVET, POP (3.2)

90841-HF1-910

$0.12

23

SCREW, TAPPING (4X12)

93903-24320

$0.90

24

SCREW, TAPPING (5X12)

93903-25220

$0.90

25

SCREW, TAPPING (6X16)

93904-26210

$0.56

26

NUT, FLANGE (6MM)

94050-06000

$0.60

27

WASHER, PLAIN (8MM)

94101-08000

Unavailable

28

WASHER, PLAIN (3MM)

94103-03800

$0.79

29

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

30

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
