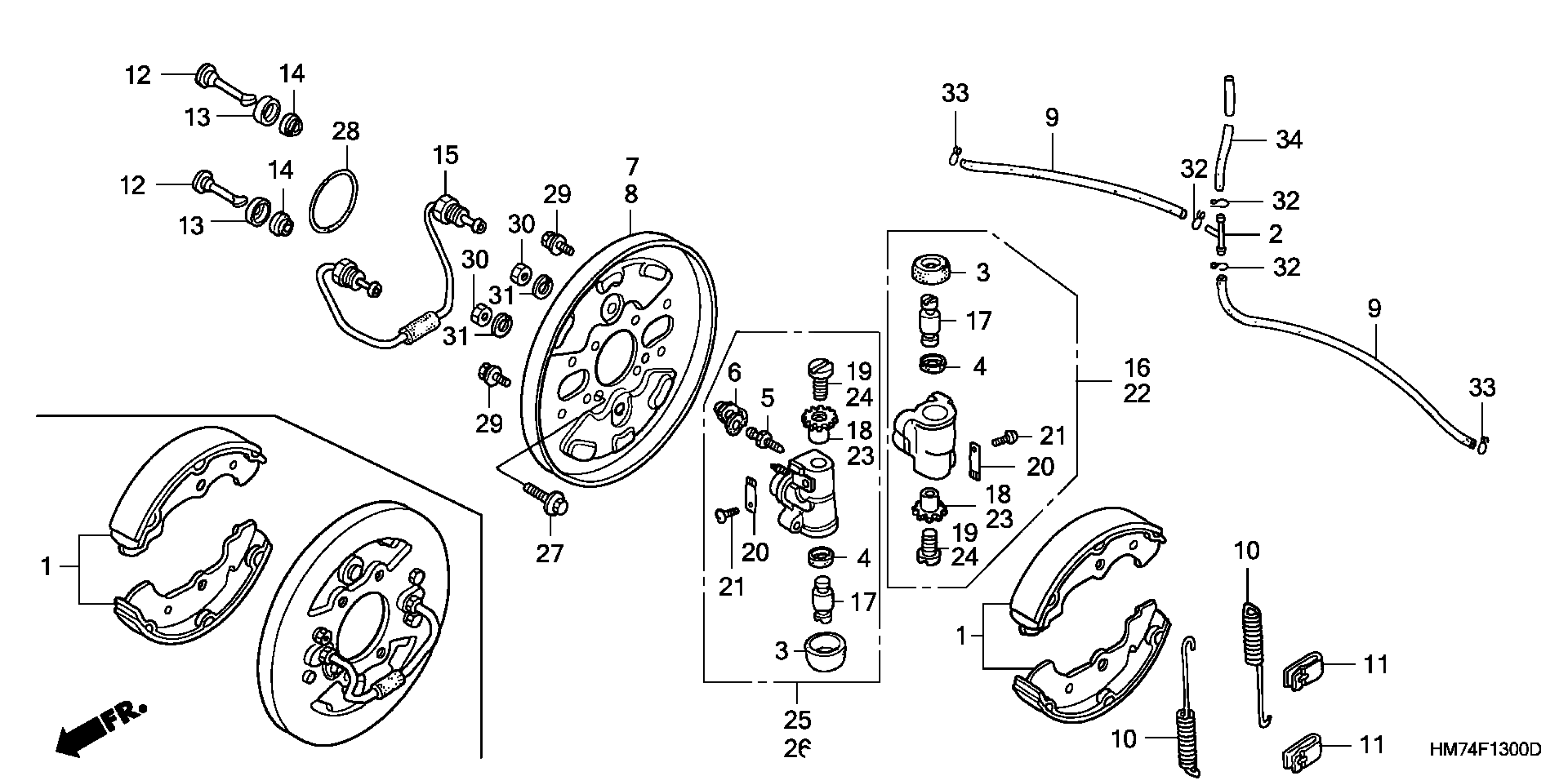

Honda TRX400FWA (96) FOURTRAX FOREMAN, USA, VIN# 478TE200-TA100001 FRONT BRAKE Diagram

#

Description
Price

1

SHOE SET, BRAKE

06450-HC5-900

$57.41

2

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

$14.74

2

JOINT, TUBE

38581-679-003

$14.74

3

COVER, DUST

43315-SN4-003

$5.31

3

COVER, DUST This part replaces 43315-671-631.

43315-SN4-003

$5.31

4

CUP, PISTON

43341-602-003

$5.27

5

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

6

CAP, BLEEDER

43353-461-771

$5.05

7

PLATE, R. BACK

45110-HM7-006

Unavailable

8

PLATE, L. BACK

45120-HM7-006

$71.90

9

TUBE, FR. BRAKE BREATHER

45136-HM7-000

$6.49

10

SPRING, BRAKE This part replaces 45171-HA7-671.

45171-HM5-A81

$2.92

10

SPRING, BRAKE

45171-HM5-A81

$2.92

11

SPRING, SHOE CLAMP This part replaces 45172-SA0-003.

45172-S04-003

$1.80

11

SPRING, SHOE CLAMP

45172-S04-003

$1.80

12

PIN, TENSION

45175-HC4-006

$4.17

13

CAP, PIN (NISSIN) This part replaces 45176-HA7-651.

45176-HM5-A81

$7.41

13

CAP, PIN (NISSIN)

45176-HM5-A81

$7.41

14

SEAL, PIN (NISSIN)

45177-HA7-651

$6.89

15

PIPE, FR. WHEEL CYLINDER

45181-HC5-006

$19.78

16

CYLINDER ASSY. A, R. FR. WHEEL This part replaces 45310-HM7-006.

45310-HM7-505

Unavailable

16

CYLINDER ASSY. A, R. FR. WHEEL

45310-HM7-505

Unavailable

17

PISTON

45314-HC5-006

$18.16

18

NUT, R. ADJUSTER

45316-VM0-003

$9.18

19

SCREW, R. ADJUSTING

45317-634-013

$5.78

20

LOCK, SPRING

45318-HA7-671

$5.87

21

SCREW-WASHER (4X6)

45319-634-003

$2.48

22

CYLINDER ASSY. A, L. FR. WHEEL This part replaces 45330-HM7-006.

45330-HM7-505

Unavailable

22

CYLINDER ASSY. A, L. FR. WHEEL

45330-HM7-505

Unavailable

23

NUT, L. ADJUSTER

45336-VM0-003

$9.74

24

SCREW, L. ADJUSTING

45337-634-013

$5.78

25

CYLINDER ASSY. B, R. FR. WHEEL (NISSIN)

45350-HC5-971

$37.09

26

CYLINDER ASSY. B, L. FR. WHEEL (NISSIN)

45370-HC5-971

$35.64

27

BOLT, FLANGE (8X20)

90115-HA7-651

$4.67

28

O-RING (64.6X1.7)

91357-HM7-003

$5.22

29

BOLT-WASHER (6X12)

93402-06012-08

$1.62

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

30

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

30

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

31

WASHER, SPRING (8MM)

94111-08800

$1.49

33

CLIP, TUBE (C6.5)

95002-35000

$1.49

34

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-30M

$8.63
