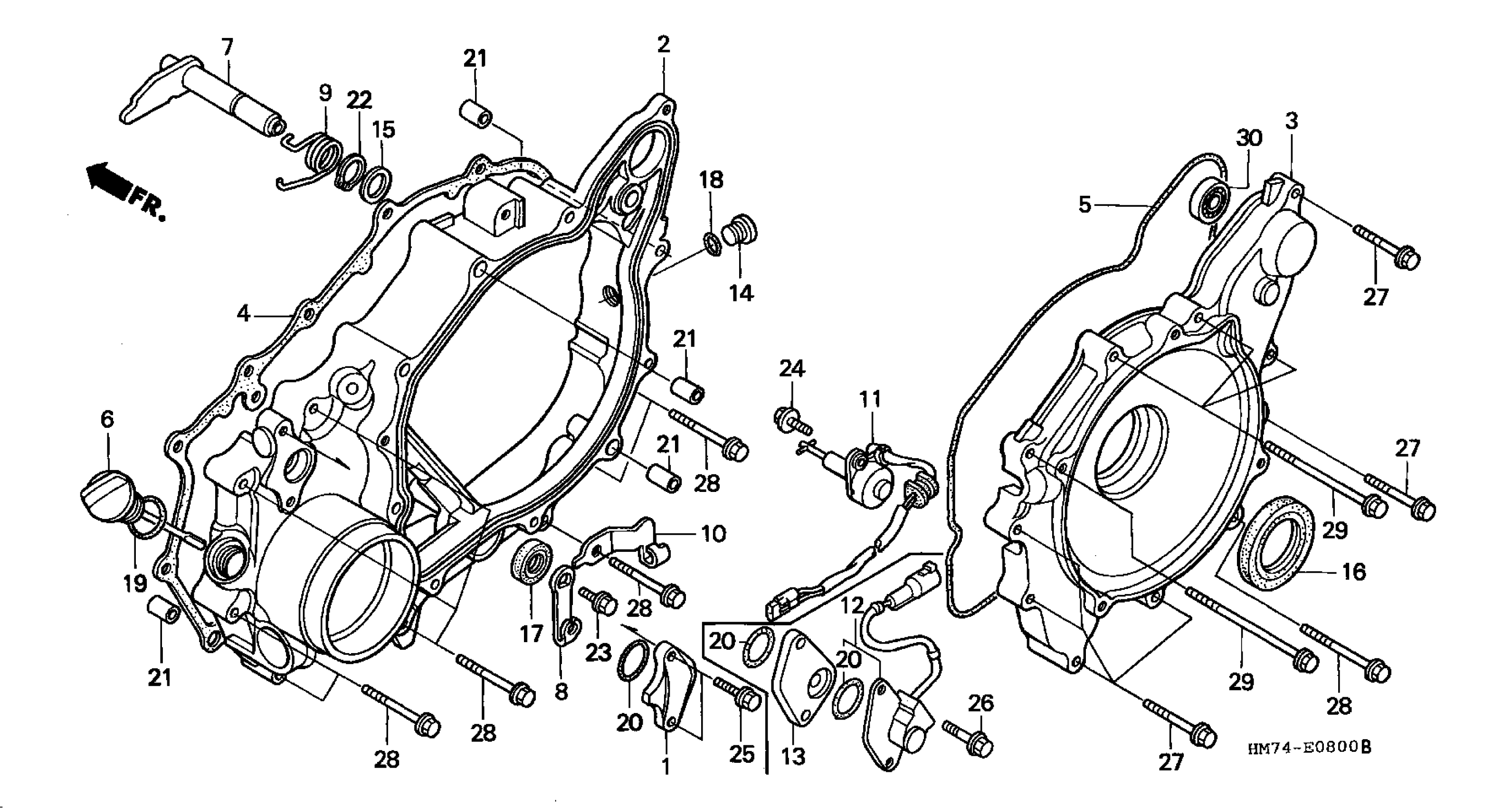

Honda TRX400FWA (95) FOURTRAX FOREMAN, USA, VIN# 478TE200-SA000001 CRANKCASE COVER (RR.) Diagram

#

Description
Price

1

CAP, COUNTERSHAFT (NOT AVAILABLE)

11210-HA7-670

Unavailable

2

COVER, RR. CRANKCASE This part replaces 11340-HM7-000.

11340-HM7-A41

$107.25

2

COVER, RR. CRANKCASE This part replaces 11340-HM7-010.

11340-HM7-A41

$107.25

2

COVER, RR. CRANKCASE

11340-HM7-A41

$107.25

3

COVER, ALTERNATOR (SOURCE: VINTAGE PARTS INC.)

11351-HM7-000

Unavailable

4

GASKET, RR. CRANKCASE COVER

11395-HM7-000

$24.25

5

GASKET, ALTERNATOR COVER

11396-HM7-000

$11.12

6

DIPSTICK, OIL

15650-HM7-000

Unavailable

7

SHAFT, REVERSE STOPPER

24860-HM7-000

Unavailable

8

LEVER, REVERSE STOPPER This part replaces 24865-HC4-000.

24865-HP0-A00

$4.73

8

LEVER, REVERSE STOPPER

24865-HP0-A00

$4.73

9

SPRING, REVERSE

24867-HM7-000

Unavailable

10

HOLDER, REVERSE STOPPER WIRE

24871-HM7-000

Unavailable

11

SWITCH ASSY., CHANGE This part replaces 35759-HM7-000.

35759-HM7-700

Unavailable

14

CAP (14MM)

90084-KY2-000

$14.66

15

WASHER, THRUST (12MM)

90452-166-600

$2.21

16

OIL SEAL (32X52X8) This part replaces 91201-HM7-003.

91201-HN0-671

$7.99

16

OIL SEAL (32X52X8)

91201-HN0-671

$7.99

17

OIL SEAL (12X22X5)

91201-965-000

$3.87

17

OIL SEAL (12X22X5) (KOYO)

91202-HC4-005

$5.21

18

O-RING (13.8X2.5)

91303-377-000

$3.26

19

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

20

O-RING (19.8X1.9) (ARAI)

91308-PA9-003

$3.67

21

PIN, DOWEL (8X14)

94301-08140

$2.62

22

CIRCLIP (OUTER) (12MM)

94510-12000

$1.68

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

24

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

27

BOLT, FLANGE (6X32)

95701-06032-00

$1.74

28

BOLT, FLANGE (6X40)

95701-06040-00

$1.74

29

BOLT, FLANGE (6X80)

95701-06080-00

$2.80

30

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.75
