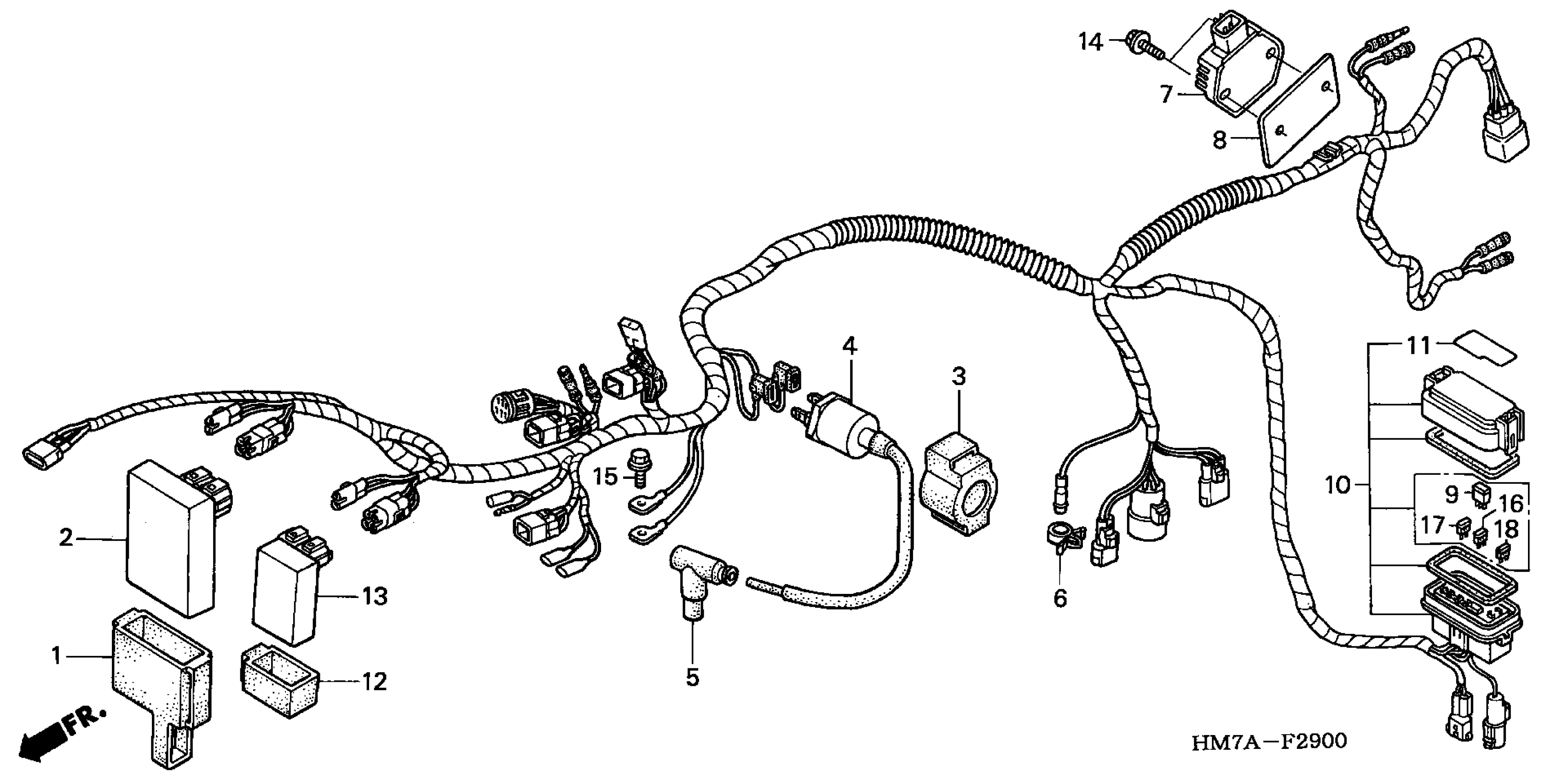

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$10.00

MODULE, IGNITION CONTROL (CDI)(DC)

30410-HM7-003

$119.45

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

COIL, IGNITION This part replaces 30510-HM7-003.

30510-KJ2-405

$86.48

COIL, IGNITION

30510-KJ2-405

$86.48

CAP ASSY. This part replaces 30700-HM7-830.

30700-KY4-901

$29.46

CAP ASSY. This part replaces 30700-KY4-900.

30700-KY4-901

$29.46

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.91

RECTIFIER ASSY., REGULATOR

31600-HN5-671

$103.62

PLATE, REGULATOR RECTIFIER

31601-HN0-A60

$26.59

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HM7-A40

Unavailable

LABEL, FUSE

38215-HM7-A40

Unavailable

CUSHION, FAN CONTROL UNIT (TATEISHI)

38401-HC4-004

Unavailable

CONTROL UNIT, FAN

38710-HM7-004

$230.73

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
