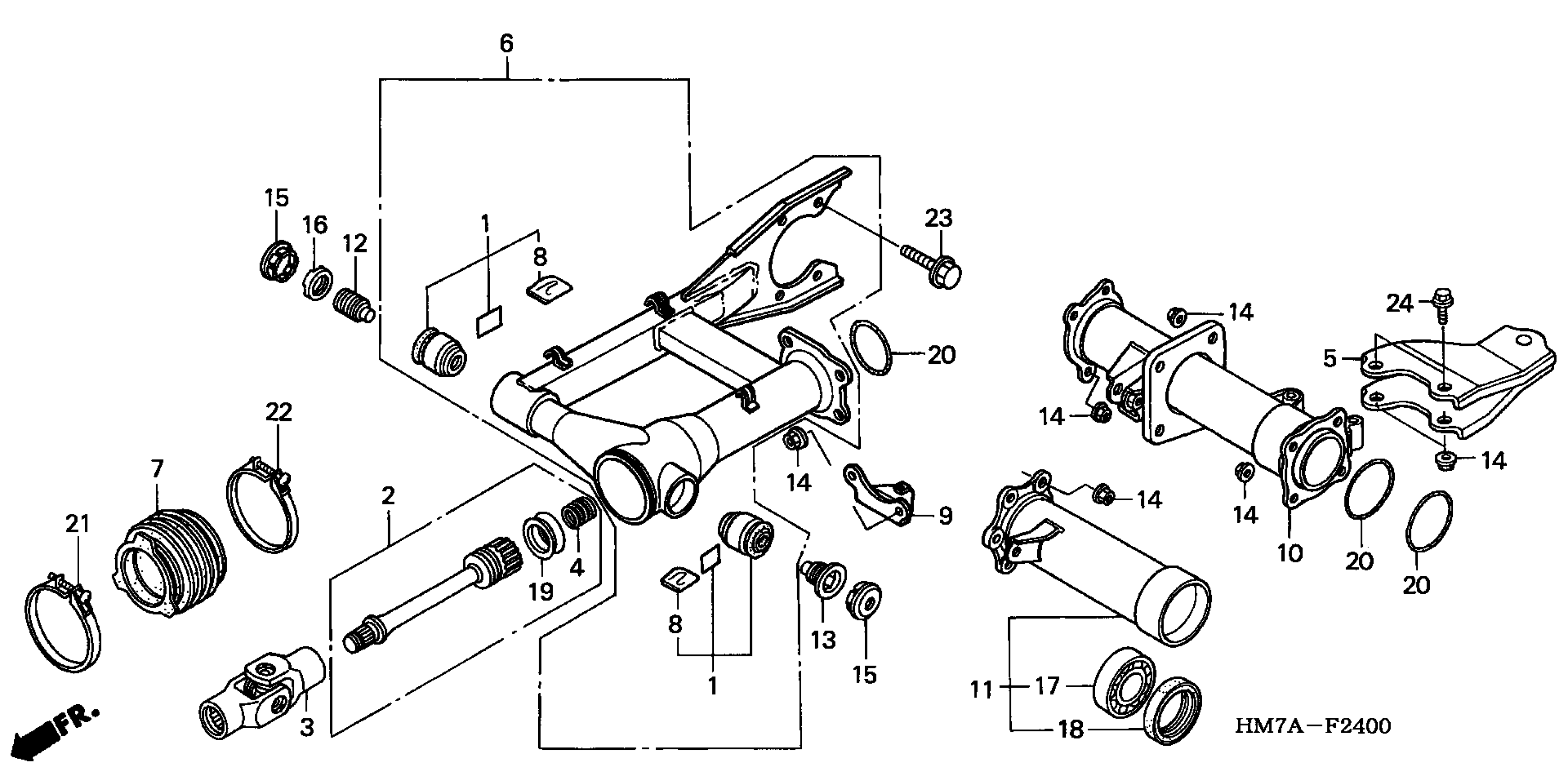

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 SWINGARM Diagram

BEARING SET, TAPER ROLLER (17X40X13.25) (KOYO) This part replaces 06912-HN2-000.

06912-HN2-010

$19.76

JOINT ASSY., YOKE

40200-HM7-610

$64.18

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$52.88

JOINT, YOKE

40210-HN7-010

$52.88

SPRING, PROPELLER SHAFT

40215-HN0-671

$2.87

HITCH, TRAILER

50810-HN2-000

$97.04

SWINGARM ASSY., RR.

52100-HN0-670

Unavailable

BOOT, JOINT

52101-HM7-000

$12.28

GREASE (SHELL 6459) This part replaces 52102-HN2-P00.

52102-HN2-P01

$6.38

STAY, SKID PLATE

52190-HN5-670

$3.54

PIPE, R. HOUSING

52210-HN0-670

Unavailable

PIPE ASSY., L. HOUSING

52300-HN0-670

$138.22

BOLT, R. SWINGARM PIVOT

90121-HN2-000

$13.97

BOLT, L. SWINGARM PIVOT

90122-HN2-000

$17.57

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

CAP, LOCK NUT

90312-HM5-670

$10.21

NUT, SWINGARM PIVOT LOCK

90355-469-000

$15.75

BEARING, RADIAL BALL (32X58X13UU)

91055-HN5-681

$17.64

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$18.27

SEAL A, RUBBER

91302-HM7-003

$7.36

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.70

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.32

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90250

$5.07

BOLT, FLANGE (10X20)

95701-10020-00

Unavailable

BOLT, FLANGE (10X60)

95701-10060-00

$1.80
