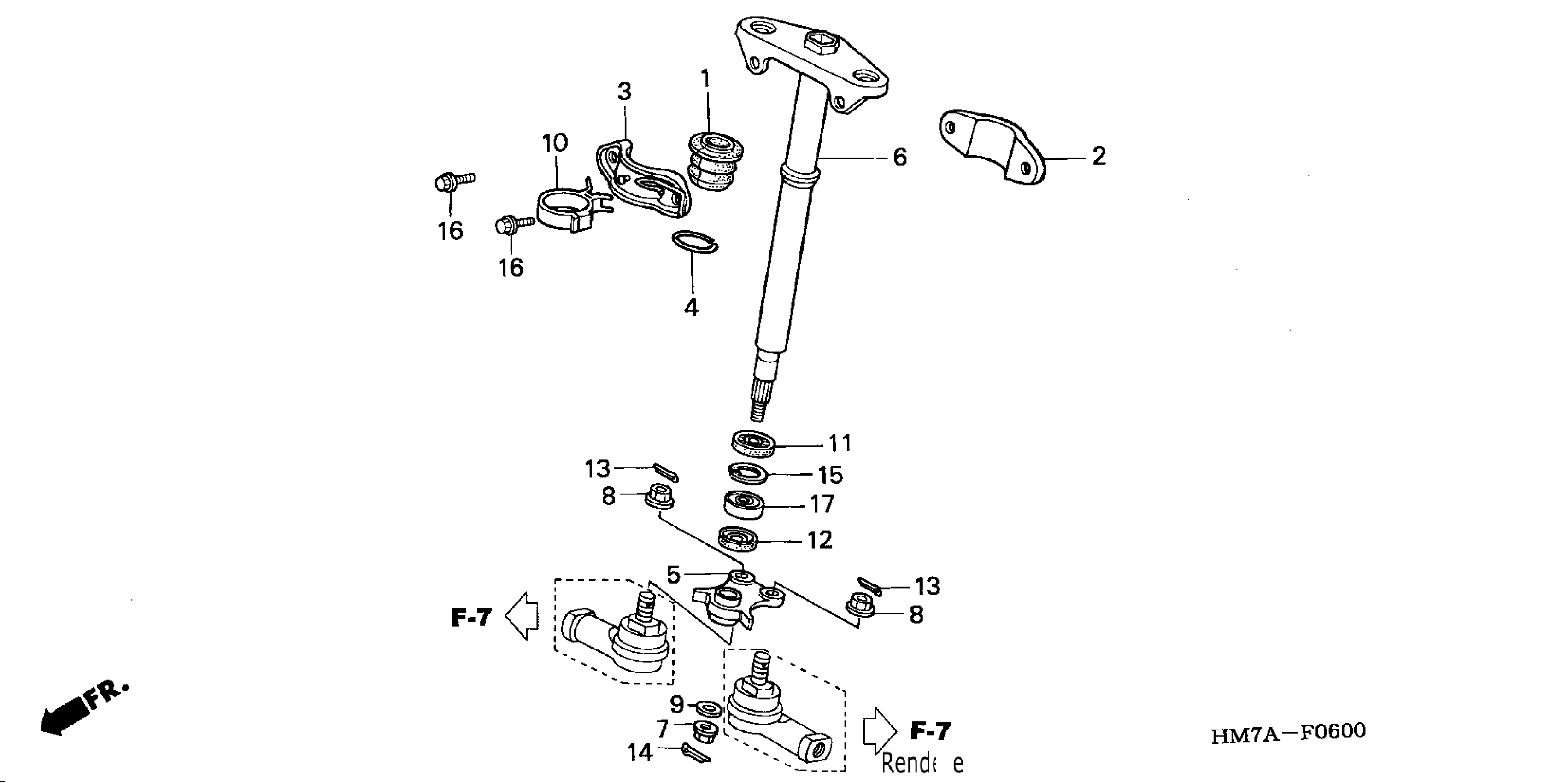

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 STEERING SHAFT Diagram

#

Description
Price

1

BUSH, STEERING

53221-HM7-004

$23.09

2

HOLDER, STEERING SHAFT

53223-HC4-000

$18.51

3

HOLDER B, STEERING SHAFT

53224-HM7-000

Unavailable

4

RING, STEERING BUSH

53225-HM7-000

$2.16

5

ARM, STEERING

53235-HM5-930

Unavailable

6

SHAFT, STEERING

53310-HM7-000

$136.64

7

NUT, U (14MM)

90305-GE8-003

$3.86

8

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

9

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

10

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

11

OIL SEAL (25X42X7) (ARAI)

91205-950-003

$9.80

12

DUST SEAL (37X25X6)

91258-HB3-003

$7.25

13

PIN, SPLIT (2.0X22)

94201-20220

$1.49

13

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

13

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

13

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

13

PIN, SPLIT (2.0X35)

94201-20350

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

14

PIN, SPLIT (3.0X45)

94201-30450

$1.49

15

CIRCLIP (INNER) (42MM)

94520-42000

$2.16

16

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

17

BEARING, RADIAL BALL (6004UU)

96150-60041-10

$23.60
