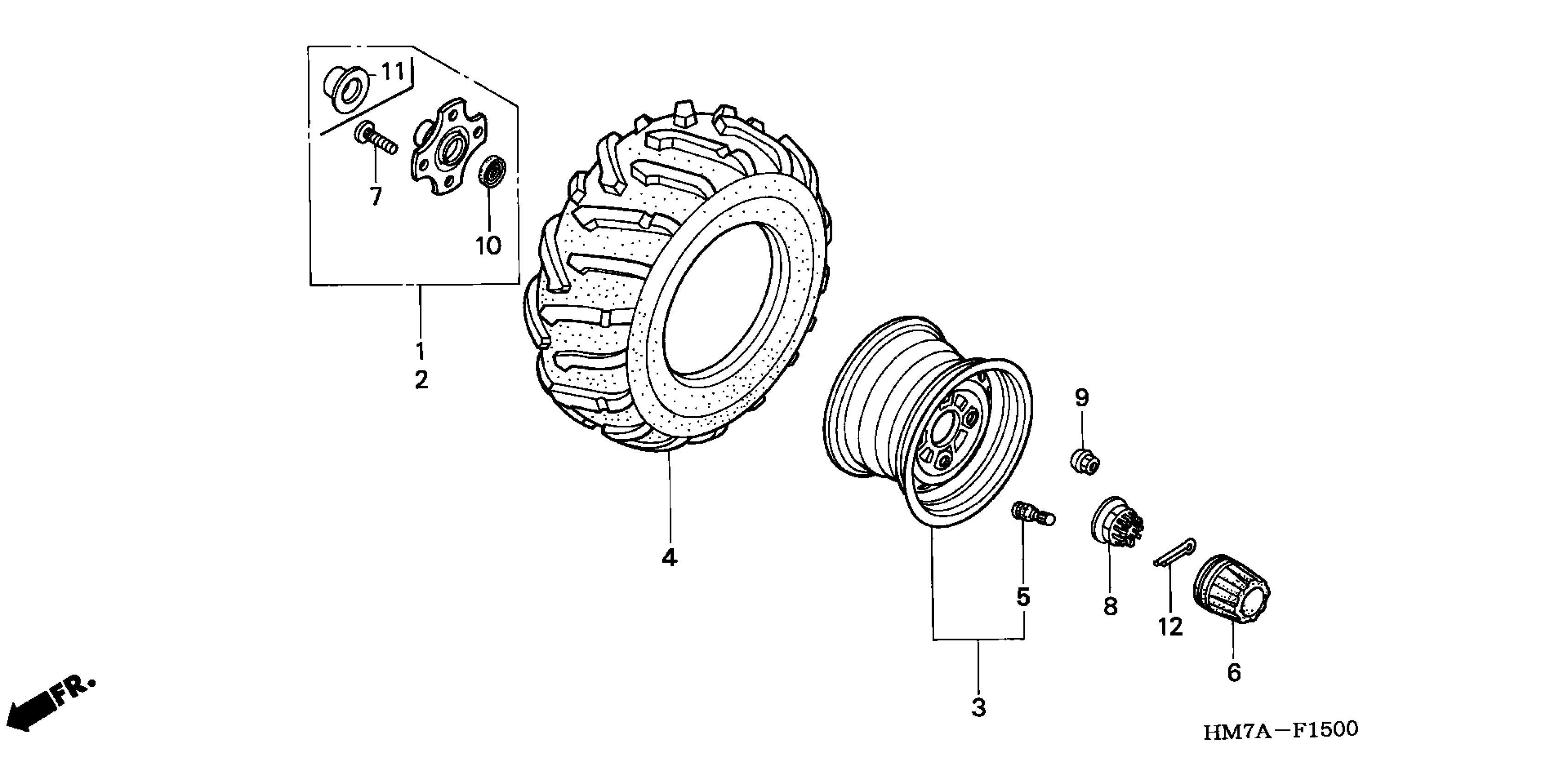

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 REAR WHEEL Diagram

HUB, R. RR.

42610-HN0-670

$137.89

HUB, L. RR.

42620-HN0-670

$134.53

ROAD WHEEL RIM KIT, RR. (INCLUDES VALVE) This part replaces 42650-HM7-A40.

42650-HM7-000

$75.30

TIRE, RR. (24X10-11) (MAXXIS) (MUST BUY 2 TO REPLACE REAR TI RES AS A SET. PIB# MPB 13897)

42711-HM7-007

$137.25

VALVE, RIM (TR412)

42753-HF1-670

$5.37

CAP, WHEEL CENTER

44732-HC4-000

$24.03

BOLT, WHEEL (10X32)

90103-HN0-A60

$5.84

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

NUT, WHEEL

90314-HM5-A10

$3.39

DUST SEAL (21.4X28.2X5) (ARAI)

91255-HM7-003

$7.63

RING, SIDE SEAL

91265-HA8-003

$27.70

PIN, SPLIT (4.0X40)

94201-40400

$1.49
